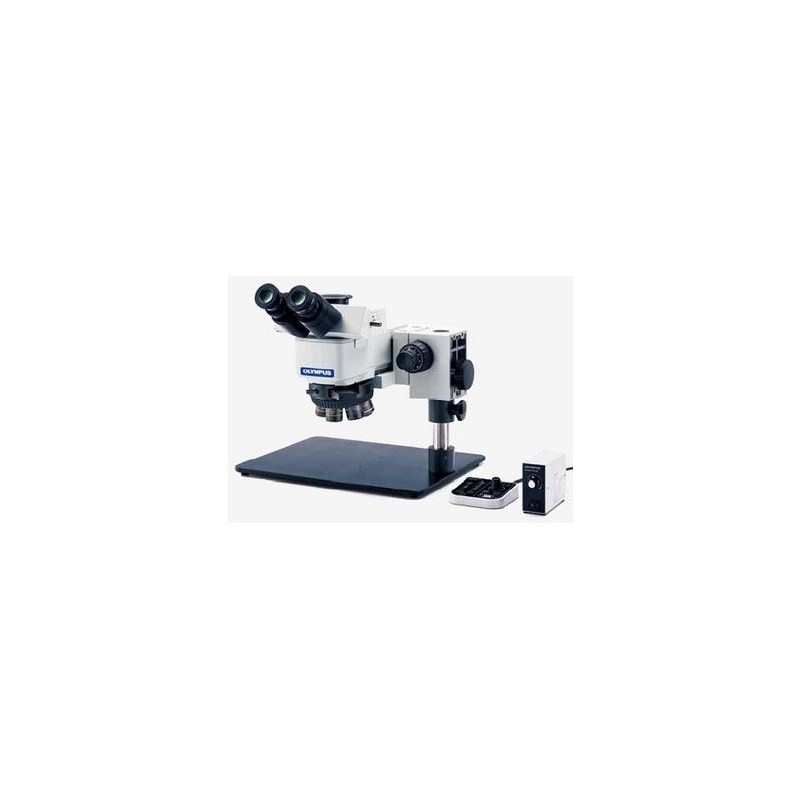

Evident Olympus Microscope Olympus BXFM-MET, HF, trino, infinity, plan, Incident light, LED (69253)

The Evident Olympus BXFM-MET microscope is a versatile and high-performance instrument designed for industrial and materials science applications. This model is part of the BXFM series, which is known for its modular design and flexibility in accommodating various optical and lighting components. The BXFM-MET is particularly suited for metallurgy, semiconductor technology, and materials analysis, offering high-quality imaging and a range of observation methods.

This BXFM-MET microscope is equipped with LED incident lighting, providing consistent color temperature and long-lasting illumination. The infinity optical system ensures high-quality imaging, while the trinocular build allows for both visual observation and camera attachment. With a working distance of 105 mm, it can accommodate larger samples, which is particularly useful in materials science applications. The optional polarization and DIC features enhance its versatility for various analytical tasks in industrial and research settings.

Specifications:

Optics:

• Lighting: Incident light

• Lamp type: LED

• Eyepiece: 10/22

• Optical system: Infinity

Mechanics:

• Type of build: Trinocular

• Viewing posture: 45° viewing angle, interpupillary distance adjustable from 52-76mm

• Focusing: Coarse and fine movement

• Specimen stage: Standard specimen stage

• Working distance: 105 mm

Special features:

• Filter holder: Yes

General:

• Series: BXFM

• Contrast methods:

  • Brightfield: Yes

  • Dark field: No

  • Fluorescence: No

  • Phase contrast: No

  • Polarization: Optional

  • DIC (Differential Interference Contrast): Optional

Field of application:

• Industry: Yes

• Medicine: Not specified

• Education: Not specified

Area of application:

• Metallurgy: Yes

• University research: Yes

• Semiconductor technology: Yes

• Materials technology: Yes
