Evident Olympus Inverted microscope Olympus CKX53 Hellfeld V2, trino, infinity, plan, achro, 2x, 4x, 10x, LED (49702)

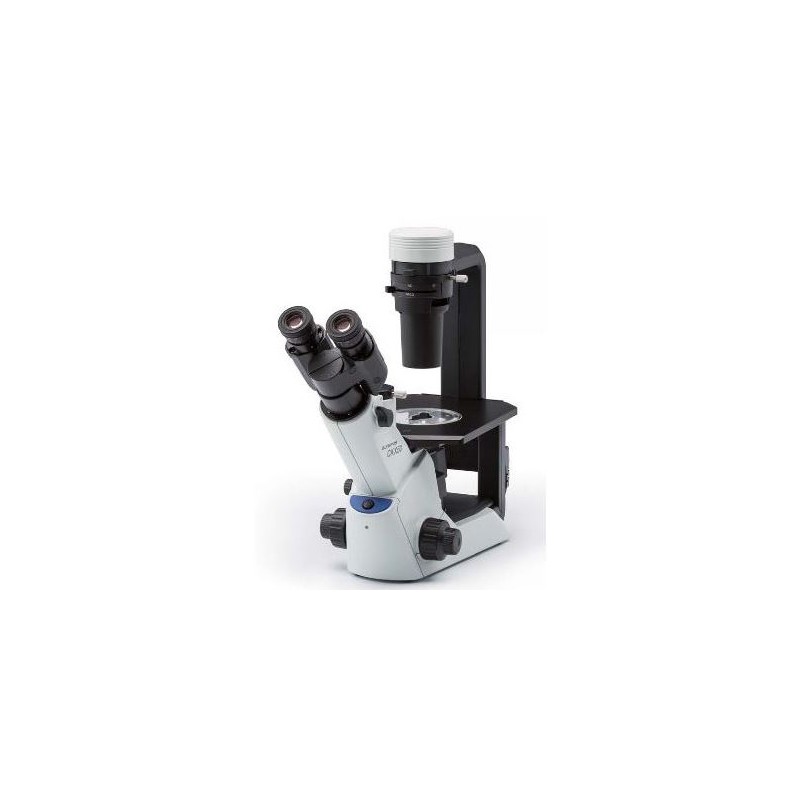

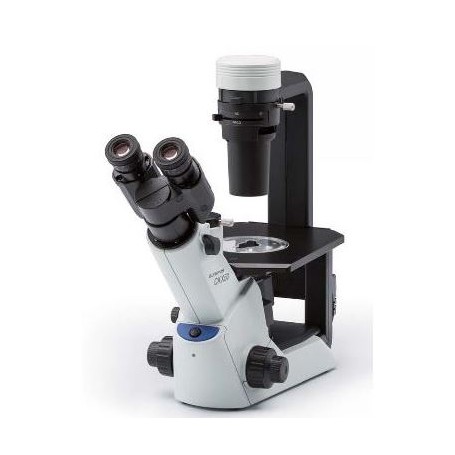

The Olympus CKX53 Hellfeld V2 is a compact, ergonomic inverted microscope designed for cell culture applications. This trinocular microscope offers improved image quality and ergonomics, providing reliable performance for a wide range of tasks including live-cell observations, sample preparation, imaging, and fluorescence microscopy.

This versatile microscope is designed to streamline cell culture workflows, offering high-quality imaging and user-friendly features for both research and educational settings.

Key Features:

• Fast and efficient cell examination with integrated phase contrast (iPC) system

• Clear and wide visual field with 2X objective and FN 22

• 3D vision experience with inversion contrast (IVC) technology

• Efficient cell examination under sterile conditions

• Ergonomic, user-friendly design

• Suitable for a wide range of cell culture containers

Specifications:

Optics:

• Image scale: 2, 4, 10

• Number of objectives: 3

• Lighting: Transmitted light (LED 4W)

• Field curvature: Plan

• Colour correction: Apochromatic

• Condenser: Rotatable

• Objectives: PLN2x/0.6, PLCN4x (NA 0.1), PLCN10x (NA 0.25)

• Infinity corrected: Yes

• Magnification: 40x, 100x

Capacity:

• Lamp type: LED

• Color temperature: 4000K

• Brightfield: Yes

• Phase contrast: Yes

Mechanics:

• Type of build: Trinocular

• Viewing posture: 45° angled eyepiece

• Focusing: Coarse and fine movement

• Specimen stage: Included

• Revolver: 4-position

Special Features:

• Luminous field diaphragm: Yes

• Wide-angle eyepiece: Yes (10X/22 mm wide field)

General:

• Dimensions (W x L x H): 200 x 498 x 454 mm

• Series: CKX53

• Weight: 6.9 kg

Applications:

• Medicine: Yes

• Education: Yes

• University research: Yes

Supplier product number: E0460041 (E07MIS0041)
