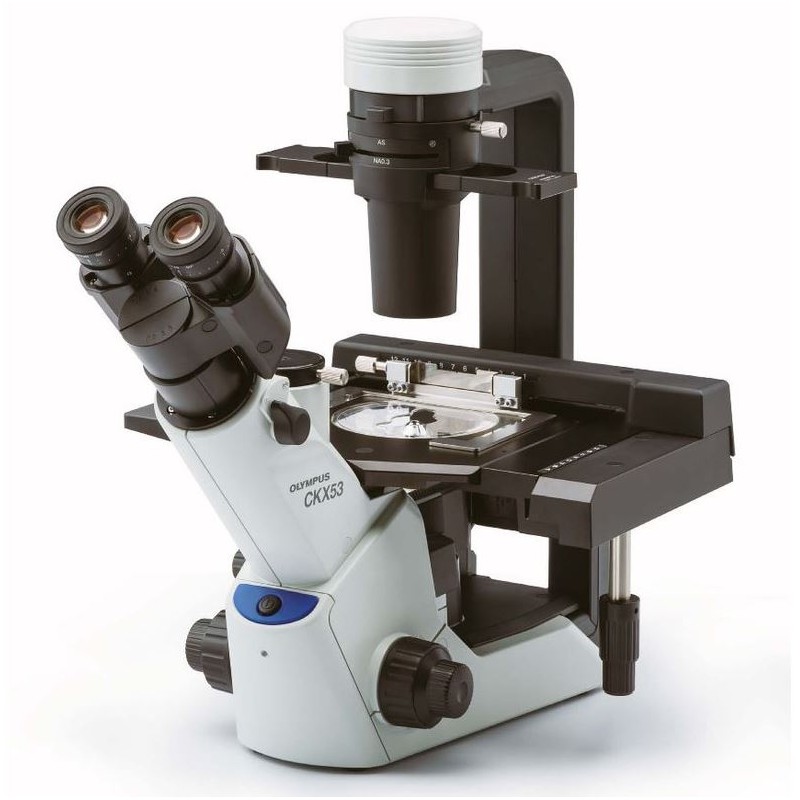

Evident Olympus CKX53 trinocular microscope, 100X, 200X, 400X, IPC / IVC x/y stage (49704)

The Evident Olympus CKX53 is a compact, ergonomic inverted microscope designed for cell culture applications. With improved image quality and ergonomics, it offers reliable performance and an efficient workflow for a wide range of cell culture tasks, including live-cell observations, sample preparation, imaging, and fluorescence microscopy.

20166.74 BGN
Tax included

16395.72 BGN net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Evident Olympus CKX53 is a compact, ergonomic inverted microscope designed for cell culture applications. With improved image quality and ergonomics, it offers reliable performance and an efficient workflow for a wide range of cell culture tasks, including live-cell observations, sample preparation, imaging, and fluorescence microscopy.

This versatile microscope is designed to streamline cell culture workflows, offering high-quality imaging and user-friendly features for both research and educational settings. Its integrated phase contrast (iPC) system and inversion contrast (IVC) technology provide enhanced visualization capabilities for live cell microscopy.



Key Features:

  • Fast and efficient cell examination with integrated phase contrast (iPC) system

  • Clear and wide visual field with 2X objective and FN 22

  • 3D vision experience with inversion contrast (IVC) technology

  • Efficient cell examination under sterile conditions

  • Simple cell sampling in sterile workbench conditions

  • Ergonomic, user-friendly design

  • Suitable for a wide range of cell culture containers

  • Better observation of multi-layer tissue culture flasks

  • Flexible container selection



Specifications:

Optics:

  • Image scale: 10x, 20x, 40x

  • Number of objectives: 3

  • Lighting: Transmitted light, LED (4 W)

  • Field curvature: Plan

  • Colour correction: Apochromatic

  • Condenser: Rotatable

  • Objectives: CACHN10xIPC, LCACHN20xIPC, LCACHN40xIPC

  • Infinity corrected: Yes

  • Magnification: 100x, 200x, 400x

Capacity:

  • Lamp type: LED

  • Color temperature: 4000K

  • DIC, IVC, RC: Yes

  • Phase contrast: Yes (IPC - integrated phase contrast objectives)

  • Brightfield: Yes

  • Contrast methods: DIC

Mechanics:

  • Type of build: Trinocular

  • Viewing posture: 45° angled eyepiece

  • Focusing: Coarse and fine movement

  • Specimen stage: Cross table

  • Revolver: 4-position

Special Features:

  • Luminous field diaphragm: Yes

  • Wide-angle eyepiece: Yes (10X/22 mm wide field)

General:

  • Dimensions (W x L x H): 200 x 498 x 454 mm

  • Series: CKX53

  • Weight: 6.9 kg

Applications:

  • Medicine: Yes

  • Biology: Yes

  • Education: Yes

  • Biochemistry: Yes

  • University research: Yes

Supplier product number: E0460043 (E07MIS0043)
