Evident Olympus Inverted microscope Olympus CKX53 with stage drive,trino, infinity, plan achro, LED,without objectives (78687)

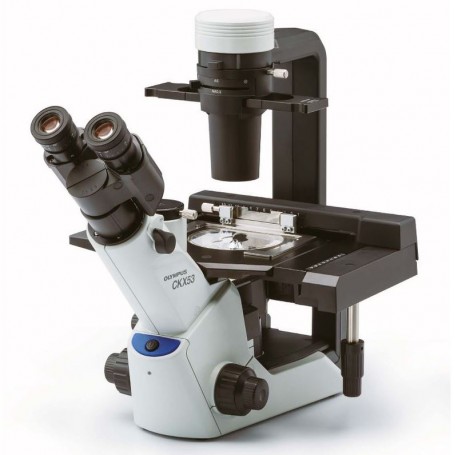

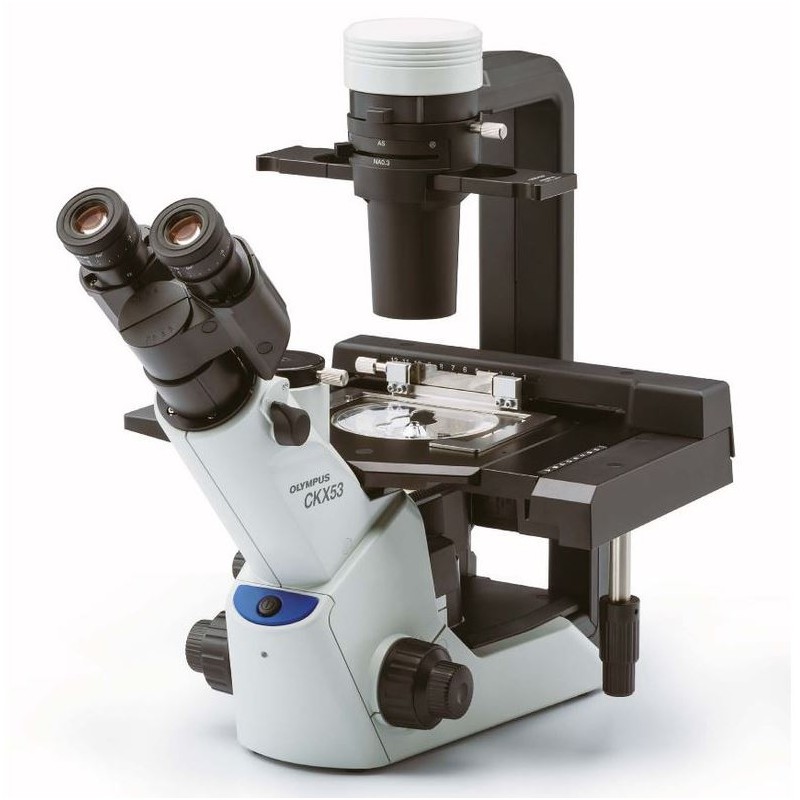

The Olympus CKX53 is a compact and ergonomic inverted microscope designed for cell culture applications. It provides reliable performance and an efficient workflow for tasks such as live-cell observations, sample preparation, imaging, and fluorescence microscopy. This model is equipped with a stage drive for precise specimen positioning, but it is supplied without objectives, allowing users to customize the microscope with their preferred optical components.

10838.36 $
Tax included

8811.67 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Olympus CKX53 is a compact and ergonomic inverted microscope designed for cell culture applications. It provides reliable performance and an efficient workflow for tasks such as live-cell observations, sample preparation, imaging, and fluorescence microscopy. This model is equipped with a stage drive for precise specimen positioning, but it is supplied without objectives, allowing users to customize the microscope with their preferred optical components.

This microscope is ideal for laboratories requiring flexibility in optical configurations. The absence of pre-installed objectives allows users to tailor the system to their specific needs, making it suitable for a variety of research and educational applications. Its ergonomic design ensures ease of use during extended microscopy sessions.



Key Features:

  • Fast and efficient cell examination with integrated phase contrast (iPC) system

  • Clear and wide visual field with FN 22

  • Experience 3D vision with inversion contrast (IVC) technology

  • Ergonomic design for easy handling and efficient cell sampling under sterile conditions

  • Compatible with a wide range of cell culture containers



Specifications:

Optics:

  • Lighting: Transmitted light

  • Lamp type: LED (4 W)

Capacity:

  • Lamp type: LED

  • Color temperature: 4000K

Mechanics:

  • Type of build: Trinocular

  • Viewing posture: 45° angled eyepiece

  • Focusing: Coarse and fine movement

  • Specimen stage: Included

  • Revolver: 4-position

Special Features:

  • Luminous field diaphragm: Yes

  • Wide-angle eyepiece: Yes (10X/22 mm wide field)

General:

  • Dimensions (W x L x H): 200 x 498 x 454 mm

  • Series: CKX53

  • Weight: 6.9 kg

Applications:

  • Medicine: Yes

  • Biology: Yes

  • Education: Yes

  • Biochemistry: Yes

  • University research: Yes



Data sheet

T7KY4SCBM5
