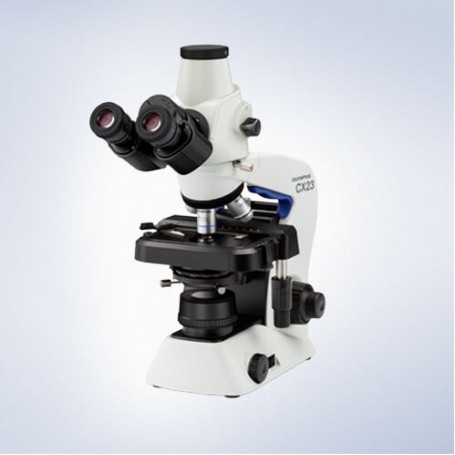

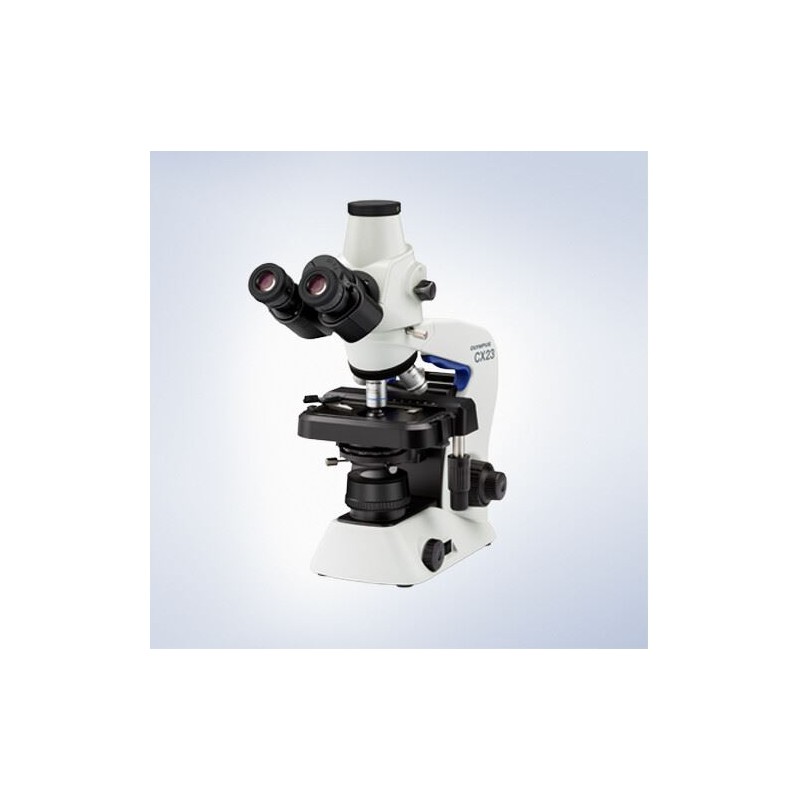

Evident Olympus Microscope Olympus CX23 Photo, trino, plan, 40x,100x, 400x, LED (54512)

The Olympus CX23 series has become the most popular educational microscope among customers over the past two years. These microscopes feature economical LED lighting technology, making them ideal for classroom use.

User-friendly Microscope for the Classroom

The CX23 upright microscope is designed to improve educational microscopy workflow, requiring minimal setup. This trinocular model offers a standard configuration for transmitted light observation with the following features:

• Integrated LED illumination

• Quadruple nosepiece

• Fixed mechanical stage (120 x 132 mm, travelling range 76 x 30 mm)

• Right-hand low drive control

• Specimen holder for one slide

• Abbe condenser, NA 1.25

• Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 μm/rotation

• Trinocular tube with two widefield eyepieces for FN20 and 30° inclination

• Beam path selection (eyepiece/camera port = 0/100 or 100/0)

• Diopter adjustment on both eyepieces

• Interpupillary distance adjustment 48-75 mm

• Plan objectives: 4x (NA = 0.1, WD = 27.8 mm), 10x (NA = 0.25, WD = 8 mm), 40x (NA = 0.65, WD = 0.60mm, CC = 0.17)

• Antifungus treatment on all optics

Included components:

• CX23RTFS2-1-2 Microscope Stand (N5731300)

• Dust cover (038159)

• UYCP power cable (035425)

Specifications:

Optics:

• Lighting: Transmitted light

• Lamp type: LED

• Image scale: 4, 10, 40

• Condenser: Abbe (Securely mounted)

• Optical system: Infinity

• Field curvature: Plan

Capacity:

• Brightfield: Yes

• Field of view value: 20

Mechanics:

• Type of build: Trinocular

• Viewing posture: 30° angled eyepiece

• Focusing: Coarse and fine movement

• Revolver: 4-position

Special features:

• Filter holder: Yes

• Luminous field diaphragm: Yes

• Dust cover bag: Yes

• Centering stage: Yes

General:

• Dimensions (L x W x H): 238 x 197 x 385 mm

• Weight: 6000 g

• Series: CX23

• Color: White

Field of application:

• Education: Yes

• Medicine: Yes

• Hobby: Yes

Area of application:

• University: Yes

• Veterinary medicine: Yes

• Naturalist: Yes

• Internal medicine: Yes

• Dermatology: Yes

• Technical training: Yes

Supplier product number: E0460047 (E07MIS0047)
