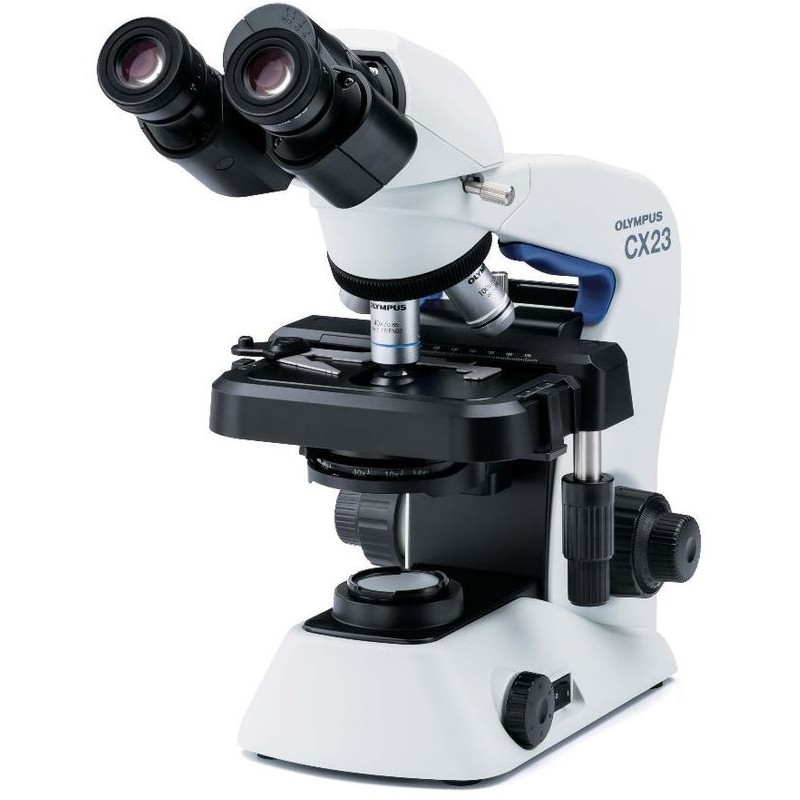

Evident Olympus Microscope Olympus CX23 RFS1, bino, plan, achro, 40x,100x, 400x, 1000x, LED (48082)

The Olympus CX23 series has become the most popular educational microscope among customers over the past two years. These microscopes feature economical LED lighting technology, making them ideal for classroom use. The CX23 upright microscope is designed to improve educational microscopy workflow, requiring minimal setup and configuration.

Upright microscope set for transmitted light observation:

• Integrated LED illumination

• Quadruple nosepiece

• Fixed mechanical stage (120 x 132 mm, travelling range 76 x 30 mm)

• Right-hand low drive control

• Specimen holder for one slide

• Abbe condenser, NA 1.25

• Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 μm/rotation

• Binocular tube with two widefield eyepieces for FN20 and 30° inclination

• Interpupillary distance adjustment 48-75 mm

• Plan objectives: 4x (NA = 0.1, WD = 27.8 mm), 10x (NA = 0.25, WD = 8 mm), 40x (NA = 0.65, WD = 0.60mm, CC = 0.17), 100x (NA = 1.25, WD = 0.13 mm)

• Wide range power supply (AC 100-240 V 50/60 Hz 0.4 A)

• All optics feature antifungus treatment

Included components:

• Microscope stand CX23LEDRFS1-1-3 with integrated LED illumination (N5731000)

• Immersion oil 8cc (N5218600)

• UYCP power cable (035425)

• Dust cover (038159)

Specifications:

Optics:

• Lighting: Transmitted light

• Lamp type: LED

• Magnification: 40x, 100x, 400x, 1000x

• Image scale: 4, 10, 40, 100

• Eyepiece: 10x FN 20

• Condenser: Abbe (Securely mounted)

• Optical system: Infinity

• Field curvature: Plan

Mechanics:

• Type of build: Binocular

• Viewing posture: 30° angled eyepiece

• Focusing: Coarse and fine movement

• Specimen stage: Cross table

• Revolver: 4-position

Special features:

• Filter holder: Yes

• Luminous field diaphragm: Yes

• Dust cover bag: Yes

• Centering stage: Yes

General:

• Dimensions (L x W x H): 238 x 197 x 385 mm

• Weight: 6000 g

• Series: CX23

• Color: White

Field of application:

• Education: Yes

• Medicine: Yes

• Hobby: Yes

Area of application:

• University: Yes

• Veterinary medicine: Yes

• Naturalist: Yes

• Internal medicine: Yes

• Dermatology: Yes

• Technical training: Yes

Supplier product number: E0460010 (E07MIS0010)
