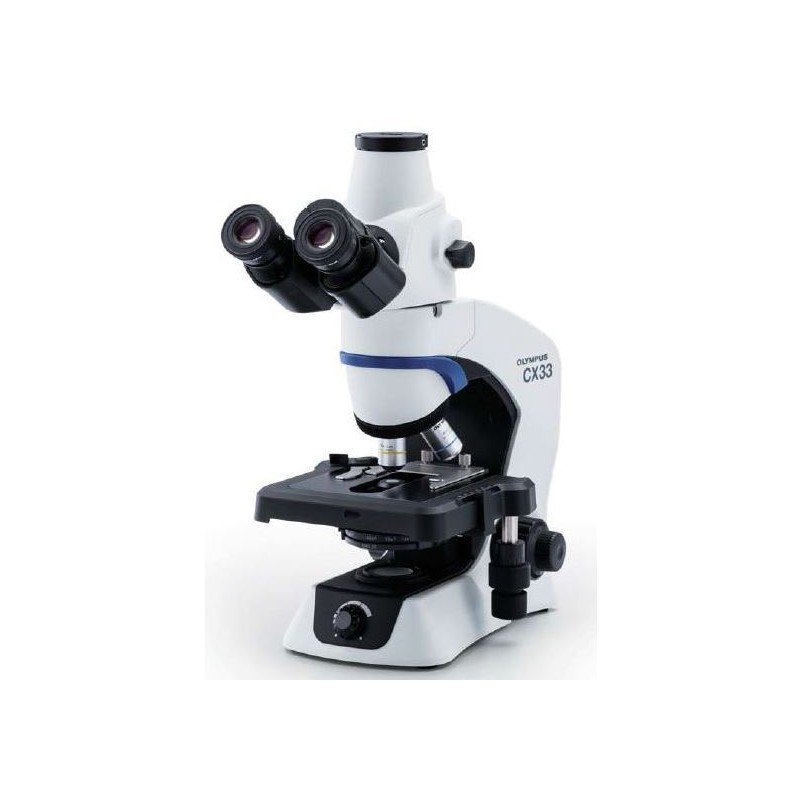

Evident Olympus Microscope Olympus CX33 trino, l, plan, achro, 40x,100x, 400x, LED (53987)

The Olympus CX33 series of biological microscopes is designed for comfortable, long-duration routine observations. Its ergonomic stand and strategically placed control knobs enhance work efficiency. The microscope allows for quick one-handed specimen setup while adjusting focus and stage with the other hand. It also features an optional camera port for digital imaging.

Key Features:

• Integrated LED illumination

• Low-positioned 4x objective nosepiece

• Left-sided, low-positioned stage control

• Trinocular tube with 30° inclination

• Plan Achromat objectives: 4x, 10x, 40x

• Anti-fungal coating on all lenses and eyepieces

Included components:

• Microscope unit CX33LTFS2-1-2 (N5731600)

• Dust cover (038159)

• Power cable UYCP (035425)

Specifications:

Optics:

• Number of objectives: 3

• Lighting: Transmitted light

• Field curvature: Plan

• Infinity corrected: Yes

• Lamp type: LED

• Condenser: Abbe

• Eyepiece: 10x/22

• Magnification: 4x, 10x, 40x

• Optical system: Infinity

• Lens type: Plan, achromatic

Mechanics:

• Specimen stage: Cross table (211 x 154 mm, travel range 76 x 52 mm)

• Focusing: Coarse and fine movement (focus range 15mm)

• Viewing posture: 30° angled eyepiece

• Type of build: Trinocular

• Revolver: 4-position

Special Features:

• Luminous field diaphragm: Yes

• Dust cover bag: Yes

• Centering stage: Yes

• Wide-angle eyepiece: Yes (10x/22)

General:

• Dimensions (W x H x L): 211 x 430 x 397 mm

• Weight: 8 kg

• Series: CX33

Field of Application:

• Medicine: Yes

Supplier product number: E0460049 (E07MIS0049)

This CX33 model is particularly suited for left-hand operation and offers a comfortable, efficient setup for various medical and biological applications.
