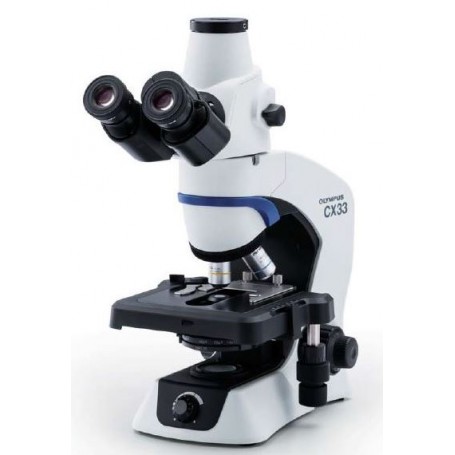

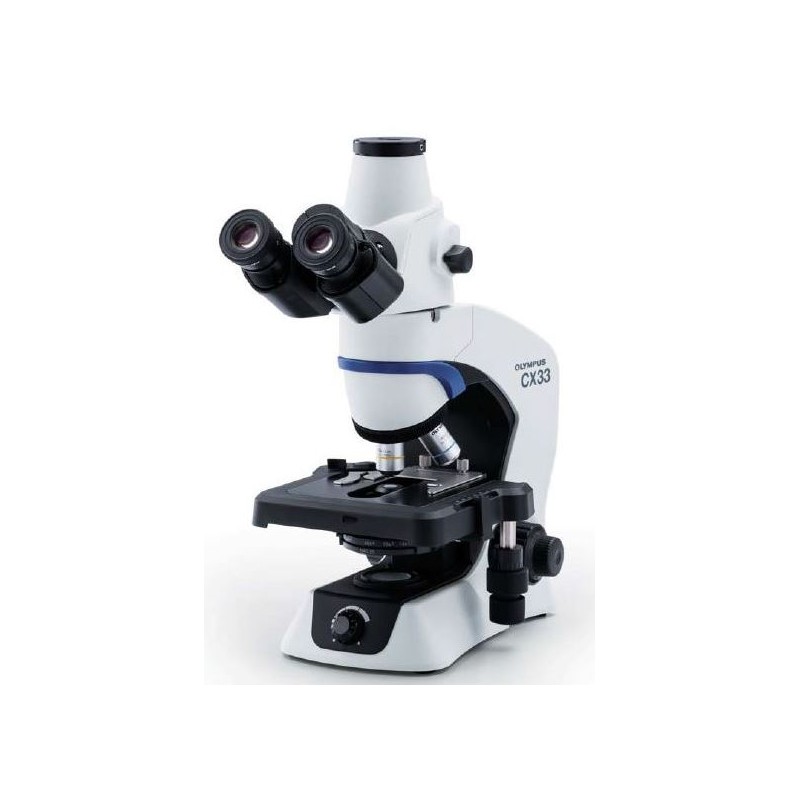

Evident Olympus Microscope Olympus CX33, trino, r, plan, 40x,100x, 400x, LED (53986)

The Olympus CX33 series of biological microscopes is designed for comfortable, long-duration routine observations. Its ergonomic stand and strategically placed control knobs enhance work efficiency. The microscope allows for quick one-handed specimen setup while adjusting focus and stage with the other hand. It also features an optional camera port for digital imaging.

Key Features:

• Ergonomic design for comfortable seating position

• Efficient control knob arrangement

• Quick specimen setup and focus adjustment

• Optional camera port for digital imaging

Specifications:

Optics:

• Number of objectives: 3

• Lighting: Transmitted light (LED)

• Field curvature: Plan

• Infinity corrected: Yes

• Condenser: Abbe

• Objectives:

  • Plan Achromat C 4x, NA 0.10, WD = 18.5 mm

  • Plan Achromat C 10x, NA 0.25, WD = 10.5 mm

  • Plan Achromat C 40x, NA 0.65, WD = 0.60 mm, Cover glass = 0.17 mm (specimen protection)

• Eyepiece: 10x/20

• Magnification: 4x, 10x, 40x

• Optical system: Infinity

• Lens type: Plan, achromatic

Capacity:

• Image scale: 4, 10, 40

• Transmitted light: Yes

• Brightness control: Yes

• Brightfield: Yes

Mechanics:

• Specimen stage: Cross table

• Focusing: Coarse and fine movement

• Viewing posture: 30° angled eyepiece

• Type of build: Trinocular

• Revolver: 4-position

Special features:

• Luminous field diaphragm: Yes

• Dust cover bag: Yes

• Centering stage: Yes

General:

• Dimensions (W x H x L): 211 x 430 x 397 mm

• Weight: 8 kg

• Series: CX33

Field of application:

• Medicine: Yes

Supplier product number: E0460048 (E07MIS0048)

This CX33 model is particularly suited for right-hand operation and offers a comfortable, efficient setup for various medical and biological applications.
