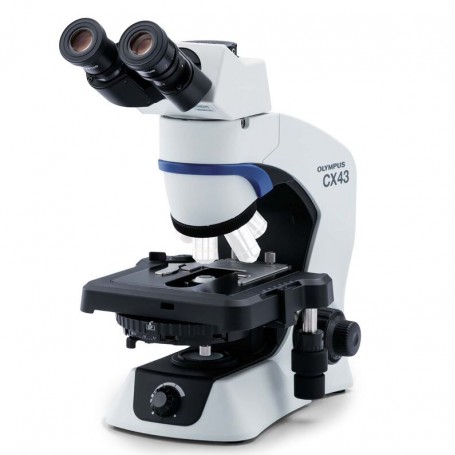

Evident Olympus Microscope Olympus CX43 FL, trino, infinity, LED, w.o. objectives! (53990)

The CX43 series of biological microscopes offers a comfortable experience for extended periods of routine observation. The design of the microscope stand is tailored to fit the user's hand anatomy, with ergonomically positioned controls to enhance work efficiency. Users can easily manipulate samples with one hand while adjusting focus and operating the stage with the other, all with minimal movement. The microscope also features an optional camera port for digital imaging capabilities.

Olympus CX43 Fluorescence (E07MIS0052)

Comfortable, High-Throughput Routine Microscopy

The CX43 microscope is designed for user comfort during long sessions of routine microscopy. Its frame is shaped to fit the user's hands naturally, and the placement of control knobs is optimized for ergonomics and improved work efficiency. The design allows for quick specimen setting with one hand while simultaneously adjusting focus and operating the stage with the other, all with minimal movement. An optional camera port is available for digital imaging.

Key Features:

• Upright fluorescence microscope for transmitted and reflected light observations

• Integrated LED illumination

• Low-positioned quintuple nosepiece

• Mechanical stage (211 x 154 mm, travel range 76 x 52 mm) with right handle, low drive control, stage lock pin, and specimen holder for one slide

• Abbe condenser, NA 1.25

• 7-position turret: BF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter

• Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 μm

• Reflected fluorescence illuminator with built-in LED light source for blue excitation (470 nm) and manual light intensity control

• Trinocular tube with two widefield eyepieces for FN20

Included Components:

• Trinocular phototube U-CTR30-2-2 (N1468400)

• Eyepiece: WHB10X-H (N1130000) (dioptric compensation)

• Eyepiece: WHB10X-2 (N1129900)

• Fluorescence condenser: CX43-RFAB (N5730900)

• Tripod: CX43RF (N5731700)

• Dust cover (038159)

• 2x connection cable UYCP (035425)

Note: Objectives are not included and must be selected separately from the accessories.

Specifications:

• Optics: Infinity corrected system

• Eyepiece: 10x/20 wide-angle

• Illumination: LED transmitted light

• Condenser: Abbe (7-Positions HF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, Fluo)

• Observation methods: Brightfield, phase contrast, fluorescence, polarization

• Focus: Coarse and fine movement

• Specimen stage: Cross table (211 x 154 mm)

• Nosepiece: 5-position

• Luminous field diaphragm: Yes

• Dimensions: 211 mm (W) x 397 mm (L) x 393 mm (H)

• Weight: 7.3 kg

• Applications: Medicine, biology, university, internal medicine, central laboratories, botany, microbiology, cytology & pathology, biochemistry, marine biology

Supplier product number: E0460052 (E07MIS0052)
