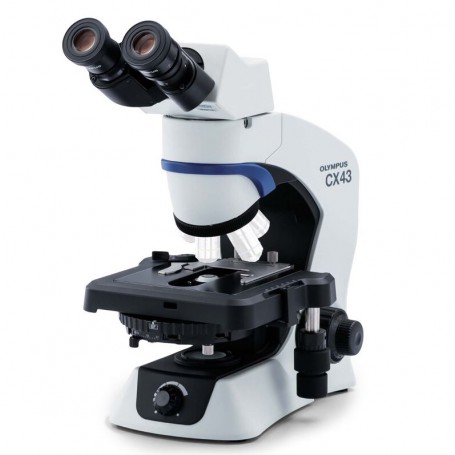

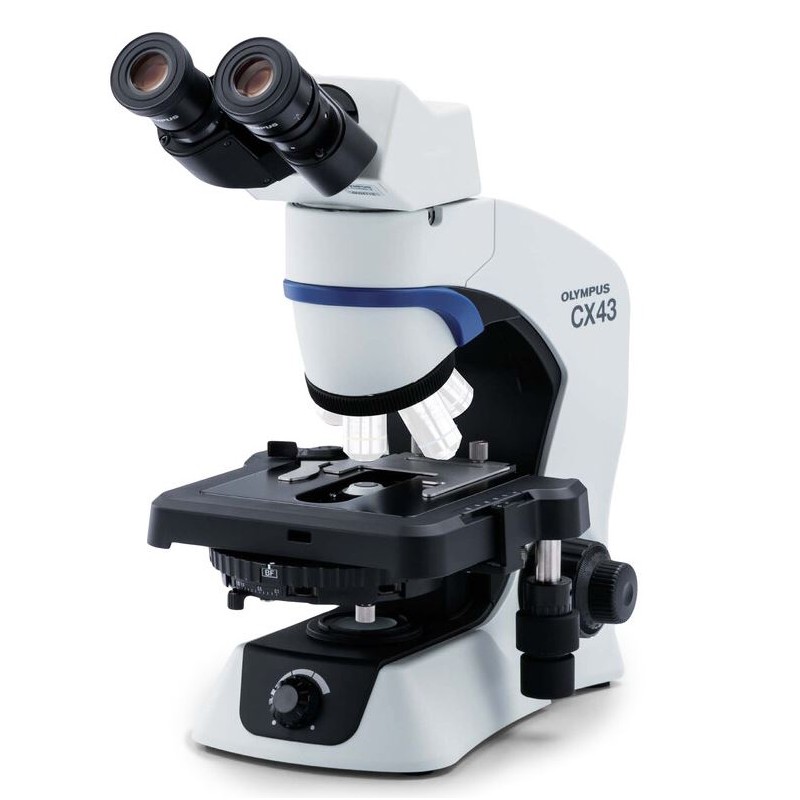

Evident Olympus Microscope Olympus CX43 POL, bino, LED, w.o. objectives! (53989)

The CX43 series of biological microscopes provides a comfortable seating position, even during extended periods of routine observation. The microscope stand is designed to align with the anatomy of the user's hands, and the ergonomic placement of controls enhances working efficiency. With minimal movement, users can quickly set a sample with one hand while adjusting the focus and operating the stage with the other. Additionally, the microscope includes an optional camera port for digital imaging.

Olympus CX43 Polarization (E07MIS0051)

Comfortable, High-Throughput Routine Microscopy

The CX43 microscope is designed to keep users comfortable during long microscopy sessions. Its frame conforms to the user’s hands, and the ergonomically positioned control knobs improve work efficiency. Specimens can be easily set with one hand while adjusting focus and operating the stage with the other. The microscope also offers an optional camera port for digital imaging.

Key Features:

• Upright microscope for transmitted and reflected light observations with polarization

• Integrated LED illumination

• Low-positioned quintuple nosepiece

• Mechanical stage (211 x 154 mm, travel range 76 x 52 mm) with right handle, low drive control, stage lock pin, and specimen holder for one slide

• Abbe condenser, NA 1.25

• 7-position turret: BF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter

• Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 μm

• Binocular tube with two widefield eyepieces for FN20

• Polarizer and analyzer included

Included Components:

• Binocular tube U-CBI30-2-2 (N1468300)

• Eyepiece: WHB10XH-2 (N1130000) (diopter compensation)

• Eyepiece: WHB10X-2 (N1129900)

• Polarizer U-POT (037855)

• Adapter U-TAD (037861)

• Analyzer U-ANT (037853)

• Polarizer CX3-KPA (N5671900)

• Tripod CX43RF-1-2 (N5731700)

• Connecting cable UYCP (035425)

• Dust cover (038159)

Note: Objectives are not included and must be selected separately from available accessories.

Specifications:

• Optics: Infinity corrected system

• Lighting: LED transmitted light

• Condenser: Abbe (7 positions: HF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, Fluo)

• Observation methods: Brightfield and polarization

• Focus: Coarse and fine movement

• Specimen stage: Cross table (211 x 154 mm)

• Nosepiece: 5-position

• Luminous field diaphragm: Yes

• Eyepiece: Wide-angle 10X/20 mm

General Information:

• Dimensions: Width: 211 mm; Length: 397 mm; Height: 393 mm

• Weight: 7.3 kg

• Applications: Medicine

Supplier product number: E0460051 (E07MIS0051)
