Evident Olympus Stereo zoom microscope SZ51, binocular, incident and transmitted light (19320)

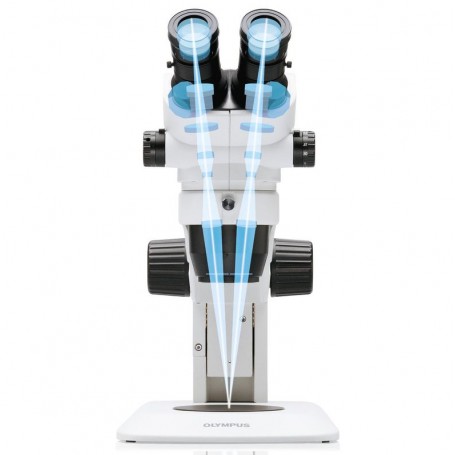

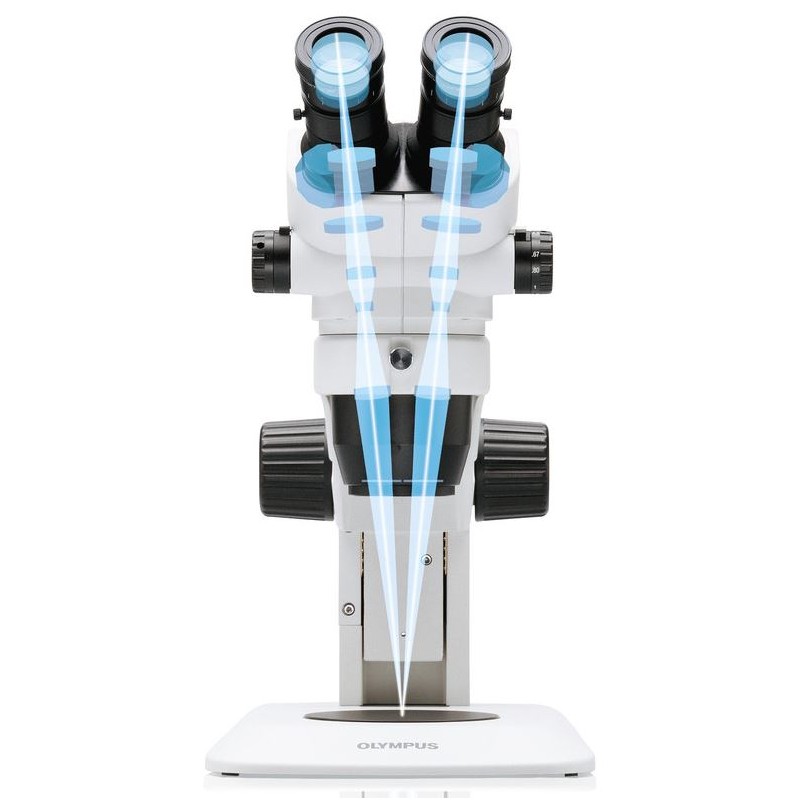

The SZ51 stereo microscope offers new ComfortView eyepieces for fast, comfortable observation with pupil aberration control, while the universal LED illumination stand combines all the advantages of LED technology. The Greenough optical system's small angle convergence ensures excellent image flatness and depth of focus. Superior optical coatings provide high color fidelity, and antistatic materials protect specimens from electrostatic discharge.

7705.40 BGN
Tax included

6264.56 BGN net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The SZ51 stereo microscope offers new ComfortView eyepieces for fast, comfortable observation with pupil aberration control, while the universal LED illumination stand combines all the advantages of LED technology. The Greenough optical system's small angle convergence ensures excellent image flatness and depth of focus. Superior optical coatings provide high color fidelity, and antistatic materials protect specimens from electrostatic discharge.

Wide Zoom Ratio

The SZ51 provides a magnification range of 8x to 40x (using 10x eyepieces), with a wide zoom ratio of 5:1.

3 Dimensional Viewing

The optimum inward angle allows for high-level flatness and depth of focus for 3D viewing. Specimens with significant depth can be brought into focus from top to bottom for faster inspection.

ComfortView Eyepieces for Reduced Eyestrain

These exclusive eyepieces feature pupil aberration control and appropriate positioning of the eyepoint, ensuring quick, comfortable observation. Superior optical coatings render true color images with fine detail.

LED Illumination

The universal reflected/transmitted light LED illumination stand incorporates flat, high-brightness LEDs, allowing for a slim base that facilitates easy specimen access and manipulation.

Electrostatic Discharge Protection

Antistatic materials and coatings on the main body and major accessories quickly eliminate static electricity, preventing electrostatic damage to specimens.

4 SETS are provided

  • SZ51 without illumination to use with gooseneck

  • SZ51 without illumination to use with ringlight

  • SZ51 with transmitted light

  • SZ51 with incident and transmitted light



Specifications

  • Optics: Greenough optical system

  • Lighting: Incident light and transmitted light (LED)

  • Magnification: 40x maximum

  • Lens type: Zoom lens

  • Eyepiece: 10x

  • Optical zoom: 0.8-4x

  • Color temperature: 7000K

  • Type: Binocular

  • Viewing posture: 45° viewing angle, interpupillary distance adjustable from 52-76mm

  • Focusing: Coarse movement

  • Specimen stage: Stage plate

  • Working distance: 110mm

  • Filter holder: Yes

  • Suitable from age: 14

  • Series: SZ51

Applications: Industry, Medicine, Education, Biology, University, Marine Biology

Supplier product number: E0460028 (E07MIS0028)
