Evident Olympus Stereo zoom microscope SZ51, for transmitted light stage, bino (49366)

The SZ51 stereo microscope is equipped with ComfortView eyepieces that ensure fast and comfortable observation, featuring pupil aberration control for enhanced viewing. The universal LED illumination stand combines all the advantages of LED technology. The Greenough optical system, with its small angle convergence, provides excellent image flatness and depth of focus. Superior optical coatings ensure high color fidelity, while antistatic materials and coatings protect specimens from electrostatic discharge. The SZ61 zoom stereo microscope is ideal for routine and advanced stereo microscopic observation, especially when digital imaging documentation is required. The cost-efficient SZ51 zoom stereo microscope offers a broad range of functions for life sciences.

Wide Zoom Ratio

The SZ51 provides a magnification range of 8x to 40x (using 10x eyepieces) with a wide zoom ratio of 5:1.

3-Dimensional Viewing

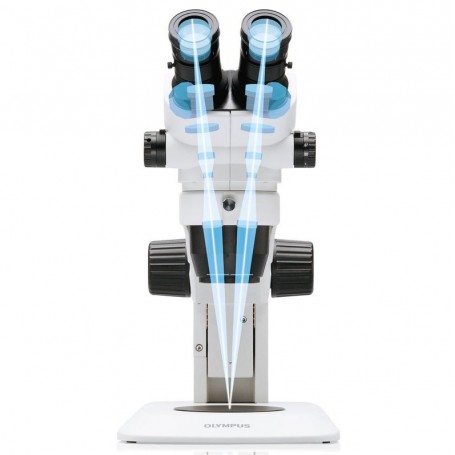

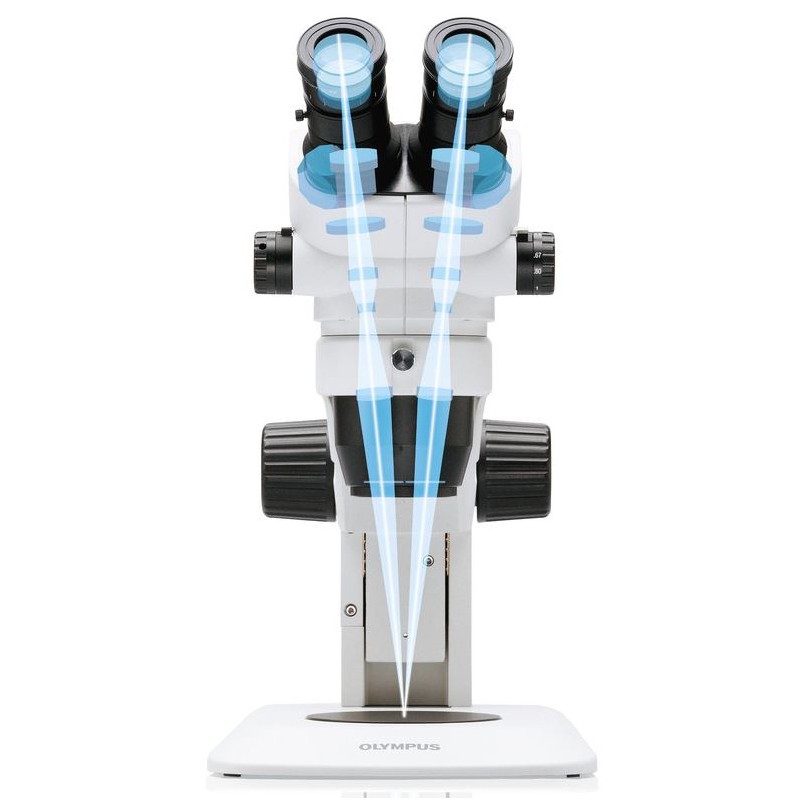

The inward angle design achieves an optimal balance between flatness and depth of focus, enabling 3D viewing. Specimens with significant depth can be brought into focus from top to bottom, allowing faster inspection.

ComfortView Eyepieces for Reduced Eyestrain

These exclusive eyepieces ensure quick and comfortable observation by offering pupil aberration control and proper eyepoint positioning. Superior optical coatings deliver true color images with fine detail.

LED Illumination

The universal reflected/transmitted light LED illumination stand integrates flat, high-brightness LEDs into a slim base. This design facilitates easy specimen access and manipulation while providing efficient illumination.

Electrostatic Discharge Protection

The microscope's main body and accessories are made from antistatic materials and coatings that quickly eliminate static electricity, preventing damage to specimens under observation.

4 Available Sets

• SZ51 without illumination (for use with gooseneck light)

• SZ51 without illumination (for use with ringlight)

• SZ51 with transmitted light

• SZ51 with incident and transmitted light

Specifications

• Optics: Greenough optical system

• Lighting: Transmitted light (LED)

• Magnification: Up to 40x

• Lens Type: Zoom lens

• Eyepiece: 10x

• Optical Zoom: 0.8–4x

• Type of Build: Binocular

• Viewing Posture: 45° viewing angle; interpupillary distance adjustable from 52–76 mm

• Focusing: Coarse movement

• Specimen Stage: Stage plate

• Working Distance: 110 mm

• Special Features: Filter holder included

General Information

• Suitable Age: From 14 years old

• Series: SZ51

Fields of Application

Industry, Medicine, Education, Biology, University, Marine Biology

Supplier product number: E0460027 (E07MIS0027)
