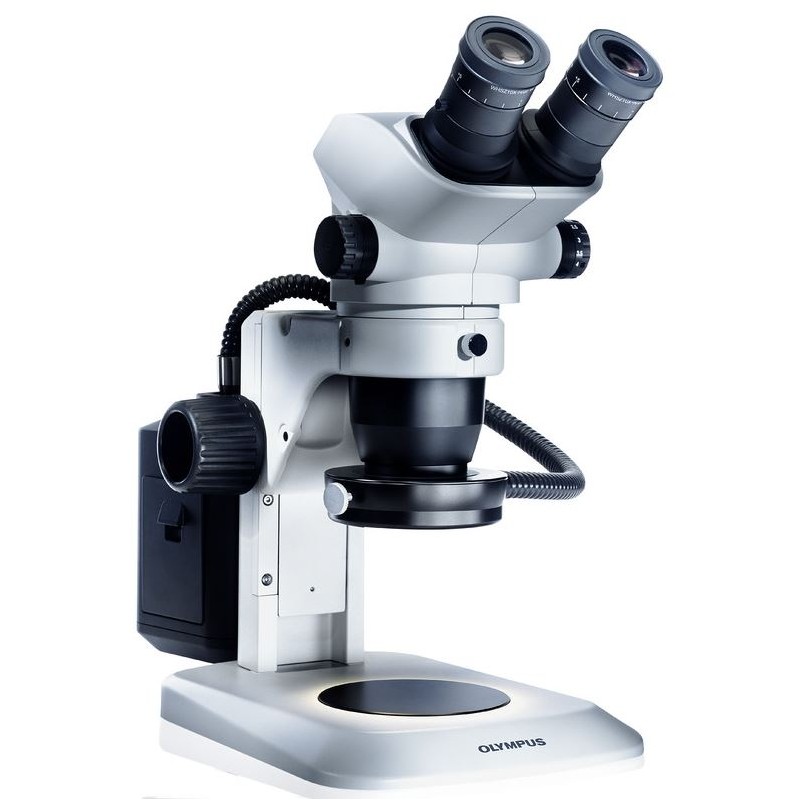

Evident Olympus Stereo zoom microscope SZ51, for ringlight, bino (49365)

The SZ51 stereo microscope features new ComfortView eyepieces that ensure fast, comfortable observation with pupil aberration control. The Greenough optical system's small angle convergence provides excellent image flatness and depth of focus. Superior optical coatings deliver high color fidelity, while antistatic materials protect specimens from electrostatic discharge. The SZ61 zoom stereo microscope is ideal for routine and advanced observations, especially when digital imaging is required.

3561.80 $
Tax included

2895.77 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The SZ51 stereo microscope features new ComfortView eyepieces that ensure fast, comfortable observation with pupil aberration control. The Greenough optical system's small angle convergence provides excellent image flatness and depth of focus. Superior optical coatings deliver high color fidelity, while antistatic materials protect specimens from electrostatic discharge. The SZ61 zoom stereo microscope is ideal for routine and advanced observations, especially when digital imaging is required. The cost-efficient SZ51 offers a broad range of functions for life sciences.

Wide Zoom Ratio

The SZ51 provides a magnification range of 8x to 40x (using 10x eyepieces), with a wide zoom ratio of 5:1.

3-Dimensional Viewing

The optimum inward angle allows for high-level flatness and depth of focus, enabling 3D viewing. Even specimens with significant depth can be brought into focus from top to bottom for faster inspection.

ComfortView Eyepieces for Reduced Eyestrain

These exclusive eyepieces feature pupil aberration control and appropriate eyepoint positioning, ensuring quick and comfortable observation. Superior optical coatings render true color images with fine detail.

LED Illumination

The universal reflected/transmitted light LED illumination stand incorporates flat, high-brightness LEDs into a slim base, facilitating easy specimen access and manipulation.

Electrostatic Discharge Protection

Antistatic materials and coatings on the main body and accessories quickly eliminate static electricity, preventing specimen damage during observation.

4 Available Sets

  • SZ51 without illumination (for use with gooseneck)

  • SZ51 without illumination (for use with ringlight)

  • SZ51 with transmitted light

  • SZ51 with incident and transmitted light

Note: This SZ51SHL stereomicroscope is designed for use with a cold light source, light guide, and ring light, which must be ordered separately.



Specifications

  • Optics: Greenough optical system

  • Lighting: None included

  • Magnification: Up to 40x

  • Lens Type: Zoom lens

  • Eyepiece: 10x

  • Optical Zoom: 0.8-4x

  • Type: Binocular

  • Viewing Posture: 45° viewing angle, interpupillary distance adjustable from 52-76mm

  • Focusing: Coarse movement

  • Specimen Stage: Stage plate

  • Working Distance: 110 mm

  • Special Features: Filter holder included

  • Suitable Age: From 14 years old

  • Series: SZ51

Applications: Industry, Medicine, Education, Biology, University, Marine Biology

Supplier product number: E0460026 (E07MIS0026)
