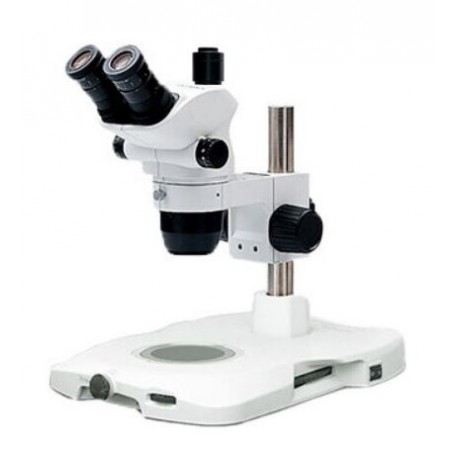

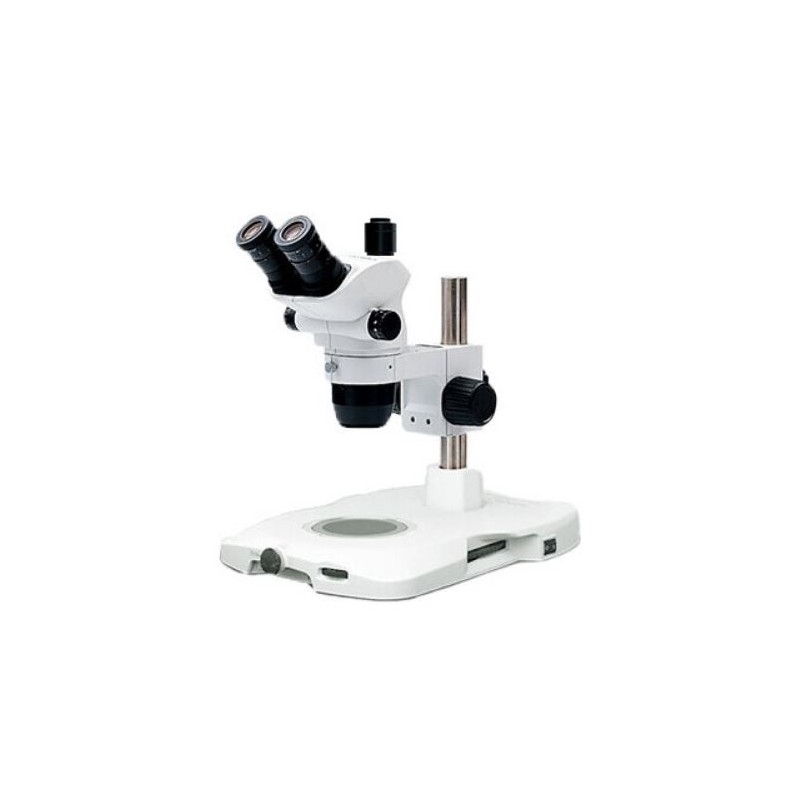

Evident Olympus Olympus SZ61TR zoom stereo microscope, SZX2-ILLTQ Tripod (69506)

The SZ61 stereo microscope features ComfortView eyepieces that provide fast and comfortable observation with pupil aberration control. The Greenough optical system's small angle convergence ensures excellent image flatness and depth of focus, while superior optical coatings deliver high color fidelity. Antistatic materials and coatings protect specimens from electrostatic discharge. The SZ61 is ideal for routine and advanced stereo microscopic observations, especially when digital imaging documentation is required. It offers a wide range of functions for life sciences.

Wide Zoom Ratio

The SZ61 provides a magnification range of 6.7x to 45x (using 10x eyepieces) with a wide zoom ratio of 6.7:1.

3-Dimensional Viewing

The inward angle design ensures the right combination of flatness and depth of focus, enabling 3D viewing. Specimens with significant depth can be brought into focus from top to bottom for faster inspection.

ComfortView Eyepieces for Reduced Eyestrain

These exclusive eyepieces ensure quick and comfortable observation by offering pupil aberration control and proper eyepoint positioning. Superior optical coatings render true color images with fine detail.

LED Illumination

The universal reflected/transmitted light LED illumination stand integrates flat, high-brightness LEDs into a slim base, facilitating easy specimen access and manipulation while offering all the advantages of LED technology.

Electrostatic Discharge Protection

Antistatic materials and coatings on the main body and accessories quickly eliminate static electricity, preventing damage to specimens during observation.

4 Available Sets

• SZ61 without illumination (for use with gooseneck)

• SZ61 without illumination (for use with ringlight)

• SZ61 with transmitted light

• SZ61 with incident and transmitted light

Specifications

• Optics: Greenough optical system

• Lighting: Incident light and transmitted light

• Magnification: 6.7x–45x

• Lens Type: Zoom lens

• Eyepiece: 10x

• Optical Zoom: 0.67–4.5x

• Type of Build: Trinocular

• Viewing Posture: 45° viewing angle; interpupillary distance adjustable from 52–76 mm

• Focusing: Coarse movement

• Specimen Stage: Stage plate

• Working Distance: 110 mm

• Special Features: Filter holder included

General Information

• Suitable Age: From 14 years old

• Series: SZ61

Fields of Application

Industry, Medicine, Education, Biology, University, Marine Biology
