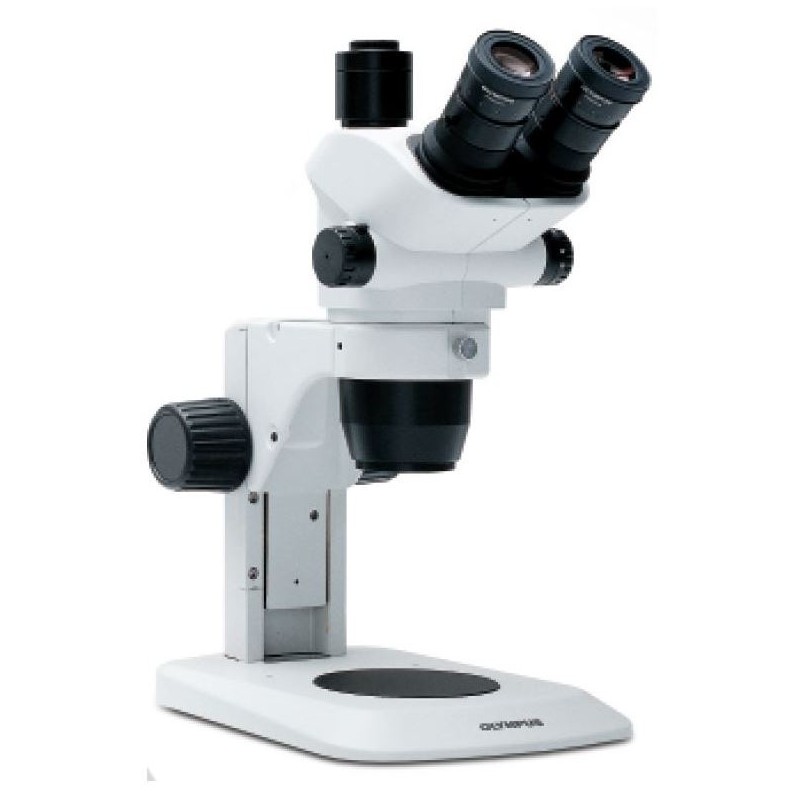

Evident Olympus Stereo zoom microscope SZ61, for gooseneck, trino (49368)

The SZ61 stereo microscope features ComfortView eyepieces that ensure fast, comfortable observation with pupil aberration control. Its Greenough optical system provides excellent image flatness and depth of focus, while superior optical coatings deliver high color fidelity. Antistatic materials protect specimens from electrostatic discharge. The SZ61 is ideal for routine and advanced stereo microscopic observation, especially when digital imaging documentation is required.

Wide Zoom Ratio

The SZ61 offers a magnification range of 6.7x to 45x (using 10x eyepieces), with a wide zoom ratio of 6.7:1.

3-Dimensional Viewing

The optimum inward angle allows for high-level flatness and depth of focus, enabling 3D viewing. Even specimens with significant depth can be brought into focus from top to bottom for faster inspection.

ComfortView Eyepieces for Reduced Eyestrain

These exclusive eyepieces ensure quick, comfortable observation with pupil aberration control and appropriate eyepoint positioning. Superior optical coatings render true color images with fine detail.

LED Illumination

The universal reflected/transmitted light LED illumination stand integrates flat, high-brightness LEDs into a slim base, facilitating easy specimen access and manipulation.

Electrostatic Discharge Protection

Antistatic materials and coatings on the main body and accessories quickly eliminate static electricity, preventing specimen damage during observation.

4 Available Sets

• SZ61 without illumination (for use with gooseneck)

• SZ61 without illumination (for use with ringlight)

• SZ61 with transmitted light

• SZ61 with incident and transmitted light

Specifications

• Optics: Greenough optical system

• Lighting: None included

• Magnification: 6.7x - 45x

• Lens Type: Zoom lens

• Eyepiece: 10x

• Optical Zoom: 0.67 - 4.5x

• Type of Build: Trinocular

• Viewing Posture: 45° viewing angle, interpupillary distance adjustable from 52-76mm

• Focusing: Coarse movement

• Specimen Stage: Stage plate

• Working Distance: 110 mm

• Special Features: Filter holder included

• Suitable Age: From 14 years old

• Series: SZ61

Fields of Application: Industry, Medicine, Education, Biology, University, Semiconductor Technology, Odontotechnics, Marine Biology

Supplier product number: E0460029 (E07MIS0029)
