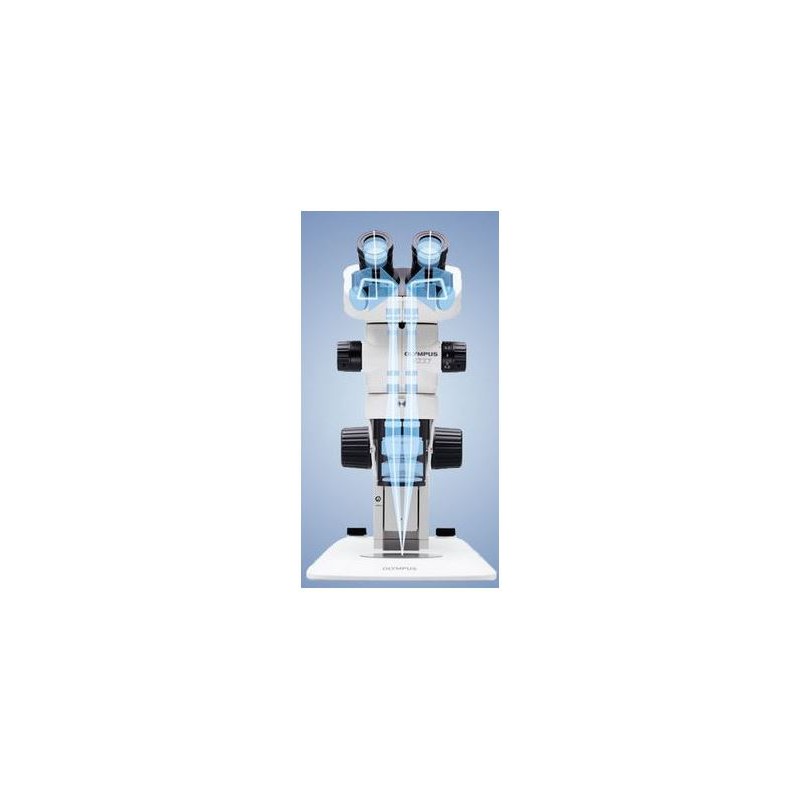

Evident Olympus Stereo zoom microscope SZX7, trino, 0.8x-5.6x, with transmitted light (49711)

The SZX7 is an advanced stereo microscope from Olympus featuring a Galilean optical system. It excels in digital imaging applications, providing high-resolution images up to 600 linepairs per millimeter with excellent color fidelity. The microscope boasts infinity-corrected optics and an impressive 7:1 zoom ratio (0.8x to 5.6x range).

108538.53 kr
Tax included

88242.71 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The SZX7 is an advanced stereo microscope from Olympus featuring a Galilean optical system. It excels in digital imaging applications, providing high-resolution images up to 600 linepairs per millimeter with excellent color fidelity. The microscope boasts infinity-corrected optics and an impressive 7:1 zoom ratio (0.8x to 5.6x range).



Key Features:

  • Galilean Optical System: Uses two independent, parallel zoom optical paths for superior performance and modularity.

  • Wide Zoom Range: 8x-56x magnification with 1x objective, up to 112x with 2x objective.

  • High-Performance Objectives: Various options including DFPlan and DFPL series for distortion-free, flat imaging.

  • Digital Imaging Capabilities: Compatible with Olympus DP series cameras for high-resolution documentation.

  • ComfortView Eyepieces: Reduce eyestrain with pupil aberration control and optimal eye point positioning.

  • Ergonomic Design: Features like the tilting trinocular tube and extendable eyepoint adjuster improve user comfort.

  • LED Illumination: Universal reflected/transmitted light stand with flat, high-brightness LEDs.

  • Electrostatic Discharge Protection: Antistatic materials prevent specimen damage.

Optical Performance:

The SZX7 delivers consistently superior image reproduction with its apochromatic zoom optics and high numerical aperture. It offers accurate color reproduction and excellent resolving power, showing specimens in minute detail.



Specifications:

  • Magnification: 8x-56x

  • Optical zoom: 1:7

  • Working distance: 90 mm

  • Dimensions (LxWxH): 253 x 166 x 403 mm

  • Weight: 6000 g

  • Illumination: LED (transmitted light)

  • Eyepiece: 10x

  • Optical system: CMO (Common Main Objective)

The SZX7 is suitable for various applications in industry, medicine, education, biology, metallurgy, semiconductor technology, and marine biology.

Data sheet

G7F804BP2U
