Evident Olympus Microscope Grundium OCUS20 (GRU-OCUS20-2) (82060)

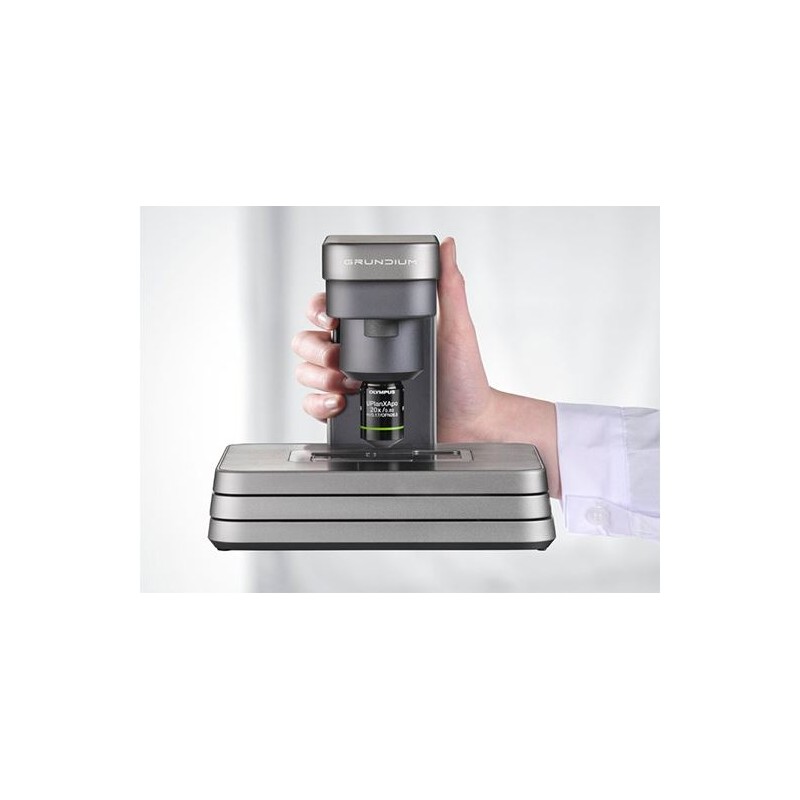

The Grundium Ocus®20 is a revolutionary digital microscope scanner designed for pathologists, researchers, and educators. It combines quality, affordability, and performance to advance digital pathology and make it more accessible.

Key Features:

Crystal Clear Digital Whole Slide Images

• 20x magnification with advanced optics

• 5 µm depth-of-field

• Continuous autofocus and Z-stacking capabilities

• Consistently high-resolution images for accurate tissue analysis

Intuitive Design

• Browser-based interface

• Streamlined workflow for scanning, viewing, and sharing slides

• User-friendly for all skill levels

Compact and Quick Setup

• 7 x 7 x 7.5 inches dimensions

• Setup in just 15 minutes

Versatile Applications

• Intraoperative consultations

• Remote learning in education

• Detailed analysis in research

Technical Specifications:

• Magnification: 20x

• Numerical Aperture: 0.40

• Resolution: 0.50 µm / pixel

• Depth of field: 5 µm

• Slide format: 75 x 25 mm (3 × 1 in)

• Scan speed: ~60 sec / 15 × 15 mm

• Image formats: .SVS, .TIFF, .SZI

• Focusing: Fully automatic

• Image sensor: 12 MPix

• Internal Storage: 500 Gigabytes

• Power consumption (Standby): 0.03 A, 0.007 kVA, 0.007 kW

• Power consumption (Operation): 0.09 A, 0.021 kVA, 0.021 kW

Regulatory Status:

• CE-marked under IVDR (EU 2017/746) for clinical and diagnostic use in the EU

• Classified as Research Use Only (RUO) in the United States
