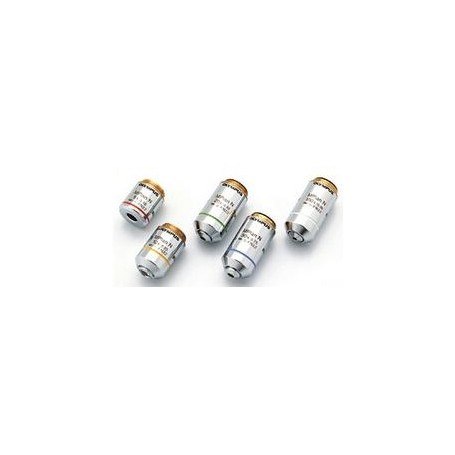

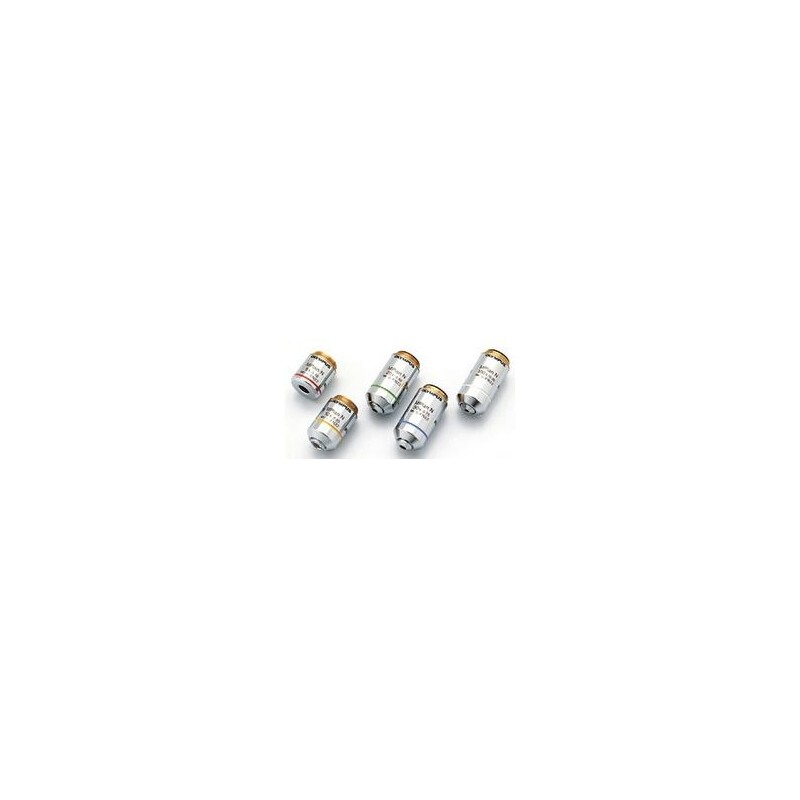

Evident Olympus Objective MPLN20X-1-7, M Plan, Achro, incident/transmitted light, 20x/0.4 wd 1.3mm (69351)

The Evident Olympus Objective MPLN20X-1-7 is a high-quality microscope objective lens designed for both incident and transmitted light applications in industrial settings. This objective is part of the MPLN series, known for its plan achromatic design, providing excellent image flatness and contrast across the entire field of view. With a 20x magnification and a numerical aperture of 0.4, this objective is ideal for detailed observations in industrial microscopy and materials science.

44601.53 ₴
Tax included

36261.41 ₴ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Evident Olympus Objective MPLN20X-1-7 is a high-quality microscope objective lens designed for both incident and transmitted light applications in industrial settings. This objective is part of the MPLN series, known for its plan achromatic design, providing excellent image flatness and contrast across the entire field of view. With a 20x magnification and a numerical aperture of 0.4, this objective is ideal for detailed observations in industrial microscopy and materials science.



This objective lens is specifically designed for industrial applications, offering a good balance between magnification and working distance. The plan achromatic design ensures a flat field of view with minimal chromatic aberration, making it ideal for detailed inspection and analysis of industrial samples. The relatively short working distance of 1.3 mm allows for high-resolution imaging of surface details, while still providing enough space for sample manipulation in industrial settings.



Product Overview:

  • Name: Evident Olympus Objective MPLN20X-1-7, M Plan, Achro, incident/transmitted light

  • Supplier Product Number: N5186300

Optical Specifications:

  • Image Scale: 20x

  • Field Curvature: Plan

  • Cover Glass Correction: No

  • Colour Correction: Achromatic

  • Suspension: Yes

  • Immersion Lens: No

  • Infinity Corrected: Yes

  • Optical System: Infinity

Lighting:

  • Incident light and transmitted light compatible

Performance Characteristics:

  • Field of View Value: 1.10

  • Numerical Aperture: 0.4

  • Image Scale: 20

  • Magnification: 20x

Mechanical Properties:

  • Working Distance: 1.3 mm

Application and Features:

  • Series: MPLN

  • Contrast Method: Brightfield (Yes)

  • Field of Application: Industry (Yes), Medicine (Not specified)
