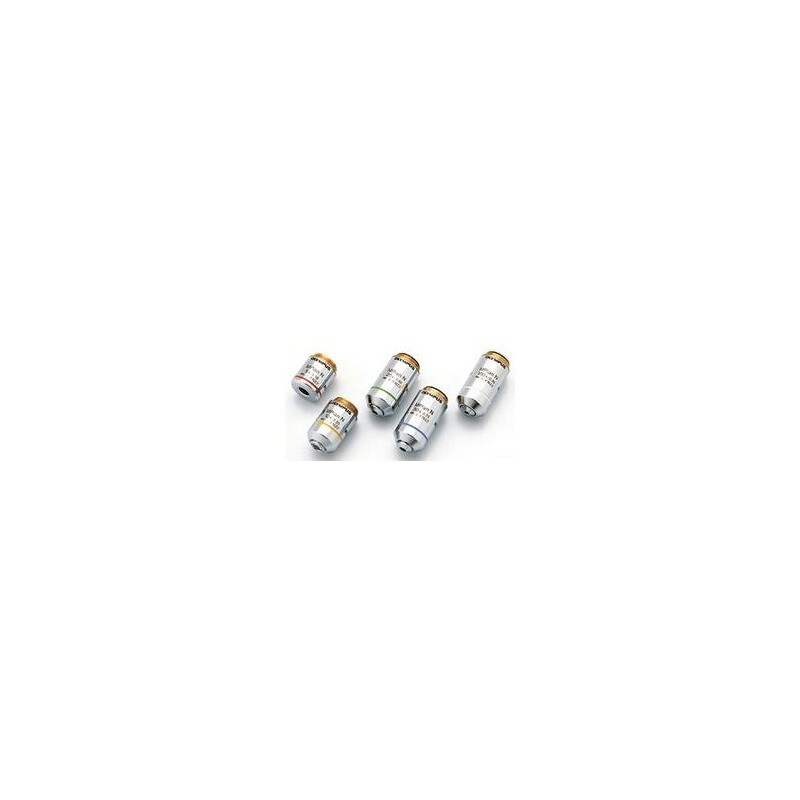

Evident Olympus Objective MPLN5X-1-7, M plan, ACH, reflected/transmitted light, 5x/0.10, WD 20.0mm (69350)

The Evident Olympus Objective MPLN5X-1-7 is a high-quality microscope objective lens designed for both reflected and transmitted light applications in industrial settings. This objective is part of the MPLN series, known for its plan achromatic design, which provides excellent image flatness and color correction across the entire field of view. With a 5x magnification and a numerical aperture of 0.10, this objective is ideal for low-power observations in industrial microscopy and materials science.

This objective lens is specifically designed for industrial applications, offering a good balance between magnification and working distance. The plan achromatic design ensures a flat field of view with minimal chromatic aberration, making it ideal for general inspection and analysis of industrial samples. The long working distance of 20.0 mm provides ample space for sample manipulation, making it particularly useful for examining larger or irregularly shaped specimens in industrial settings.

Product Overview:

• Name: Evident Olympus Objective MPLN5X-1-7, M plan, ACH, reflected/transmitted light

• Supplier Product Number: N5186100

Optical Specifications:

• Image Scale: 5x

• Field Curvature: Plan

• Cover Glass Correction: No

• Colour Correction: Achromatic

• Suspension: No

• Immersion Lens: No

• Infinity Corrected: Yes

• Optical System: Infinity

Lighting:

• Incident light and transmitted light compatible

Performance Characteristics:

• Field of View Value: 22

• Numerical Aperture: 0.10

• Image Scale: 5

• Magnification: 5x

Mechanical Properties:

• Working Distance: 20.0 mm

Application and Features:

• Series: MPLN

• Contrast Method: Brightfield (Yes)

• Field of Application: Industry (Yes), Medicine (Not specified)
