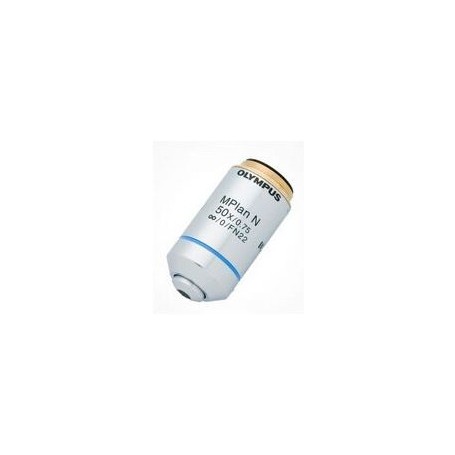

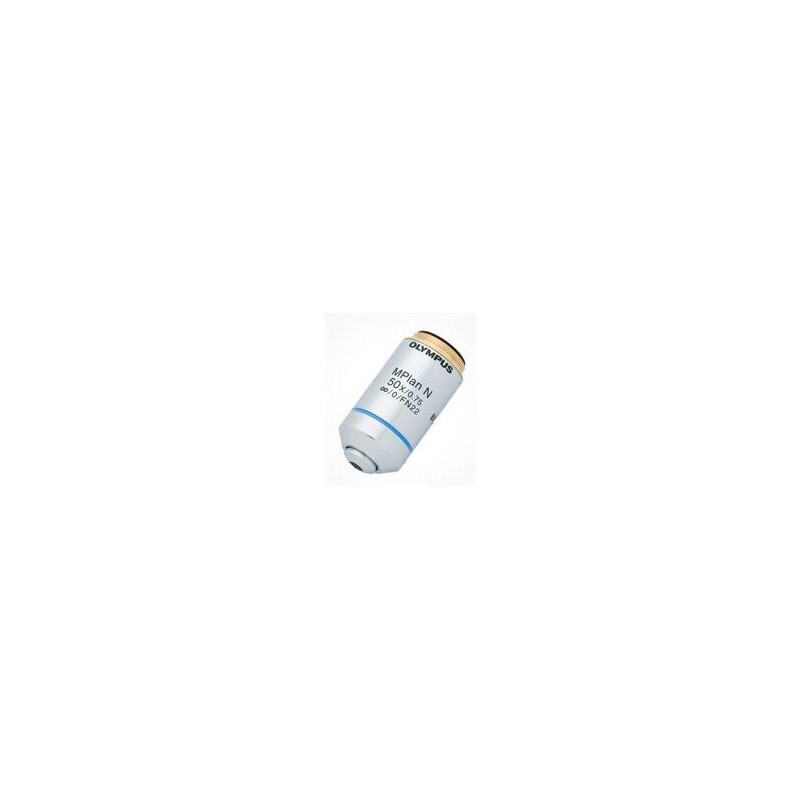

Evident Olympus Objective Olympus MPLN50XBD M, BF, DF, Plan, Achro, Transmitted light, 50x/0.75 wd 0.38mm (61089)

The Evident Olympus Objective MPLN50XBD is a high-performance microscope objective lens designed for both brightfield and darkfield observations in industrial and medical applications. This objective is part of the MPLN series, known for its plan achromatic design, which provides excellent contrast and optimum flatness throughout the field of view. With a 50x magnification and a high numerical aperture of 0.75, this objective is ideal for detailed observations requiring high resolution and contrast.

143360.29 ₽
Tax included

116553.08 ₽ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Evident Olympus Objective MPLN50XBD is a high-performance microscope objective lens designed for both brightfield and darkfield observations in industrial and medical applications. This objective is part of the MPLN series, known for its plan achromatic design, which provides excellent contrast and optimum flatness throughout the field of view. With a 50x magnification and a high numerical aperture of 0.75, this objective is ideal for detailed observations requiring high resolution and contrast.

This objective lens is designed for both industrial and medical applications, offering high magnification and a high numerical aperture for detailed imaging. The plan apochromatic design ensures a flat field of view with excellent color correction, making it ideal for precise inspection and analysis of samples. The short working distance of 0.38 mm allows for high-resolution imaging of surface details, which is particularly useful in materials science, quality control, and medical research applications requiring both brightfield and darkfield observations.



Product Overview:

  • Name: Evident Olympus Objective MPLN50XBD M, BF, DF, Plan, Achro, Transmitted light

  • Supplier Product Number: N5702000

Optical Specifications:

  • Image Scale: 50x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes

  • Colour Correction: Apochromatic

  • Suspension: Yes

  • Immersion Lens: No

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 0.44

  • Numerical Aperture: 0.75

  • Image Scale: 20

  • Magnification: 50x

Mechanical Properties:

  • Working Distance: 0.38 mm

Application and Features:

  • Series: MPLN

  • Contrast Methods: Brightfield (Yes), Darkfield

  • Field of Application: Medicine (Yes), Industry (Yes)
