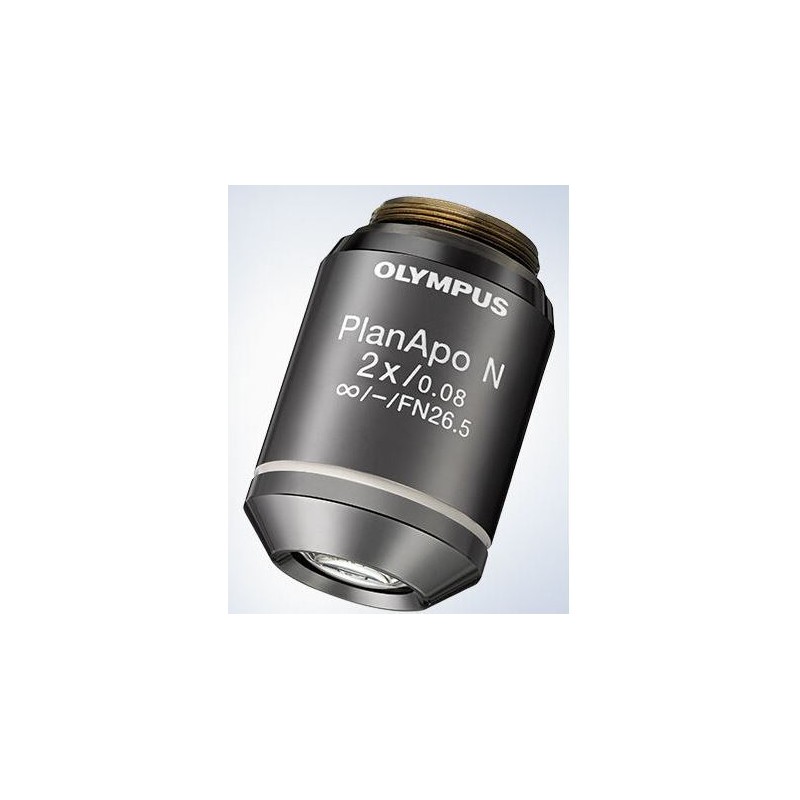

Evident Olympus Objective PLAPON2X/0.08 (62288)

The Evident Olympus Objective PLAPON2X/0.08 is a low-magnification, high-quality microscope objective designed for applications requiring a wide field of view and excellent image quality. This objective is part of the PLAPON series, known for its plan apochromatic design, which provides superior color correction and flat-field imaging. With its 2x magnification and 0.08 numerical aperture, this objective is ideal for capturing large sample areas with high clarity and minimal distortion.

This objective lens is designed for applications requiring a wide field of view and high image quality, such as whole slide imaging, material science, and industrial inspection. The plan apochromatic design ensures excellent color correction and flat-field imaging across the entire field of view. The relatively long working distance of 6.2 mm provides ample space for sample manipulation, making it suitable for various microscopy techniques and sample types.

Product Overview:

• Name: Evident Olympus Objective PLAPON2X/0.08

• Supplier Product Number: N1480200

Optical Specifications:

• Image Scale: 2x

• Field Curvature: Plan

• Cover Glass Correction: Yes

• Colour Correction: Apochromatic

• Suspension: No

• Immersion Lens: No

• Infinity Corrected: Yes

• Optical System: Infinity

Performance Characteristics:

• Field of View Value: 22

• Numerical Aperture: 0.08

• Image Scale: 2

• Magnification: 2x

Mechanical Properties:

• Working Distance: 6.2 mm

Additional Information:

• Series: PLAPON
