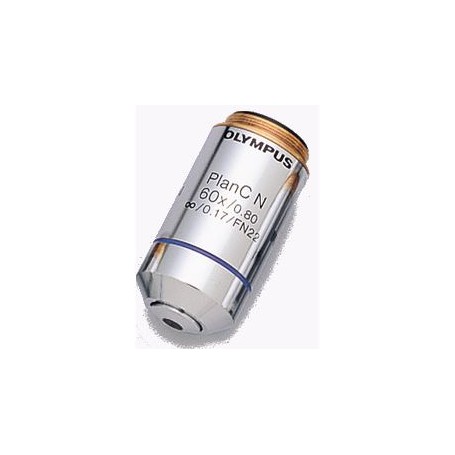

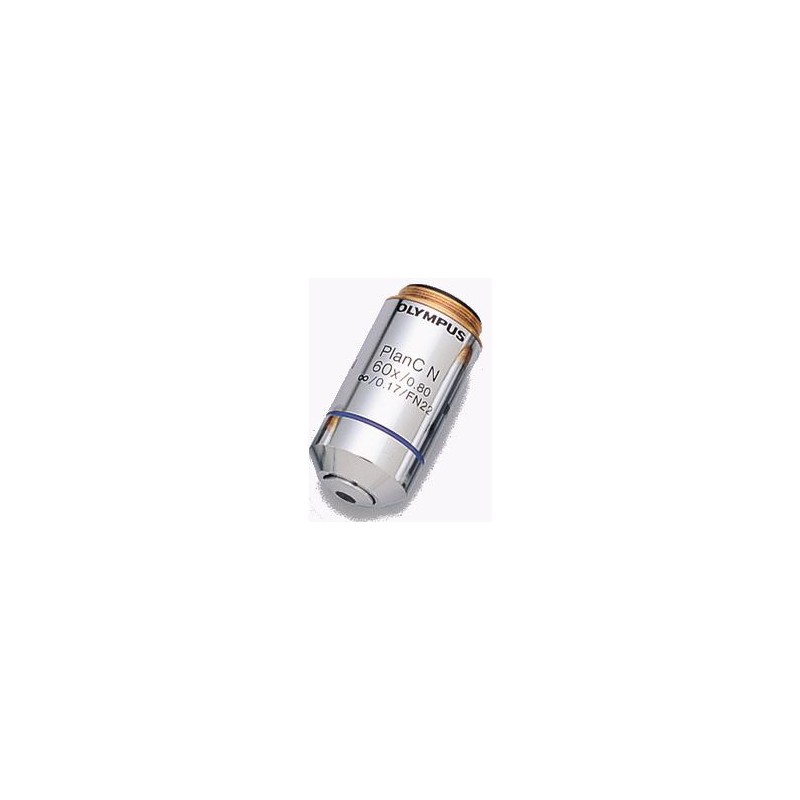

Evident Olympus Objective PLCN 60X/0.8 Plan Achromatic (49916)

The Evident Olympus Objective PLCN 60X/0.8 Plan Achromatic is a high-magnification microscope objective designed for advanced research and clinical applications. This objective is part of the PLCN series, known for its plan achromatic design, which provides a flat field of view with good color correction. With its 60x magnification and 0.8 numerical aperture, this objective offers high resolution and contrast for detailed specimen observation.

This objective lens is designed for applications requiring high magnification and good resolution, such as cell biology, pathology, and materials science. The plan achromatic design ensures a flat field of view with minimal chromatic aberration. The short working distance of 0.2 mm allows for high-resolution imaging of thin specimens, making it particularly suitable for observing fine cellular structures and material surfaces.

Product Overview:

• Name: Evident Olympus Objective PLCN 60X/0.8 Plan Achromatic

• Supplier Product Number: N4239300

Optical Specifications:

• Image Scale: 60x

• Field Curvature: Plan

• Cover Glass Correction: Yes (0-1.00 mm)

• Colour Correction: Achromatic

• Suspension: No

• Immersion Lens: No

• Infinity Corrected: Yes

• Optical System: Infinity

Performance Characteristics:

• Numerical Aperture: 0.8

• Image Scale: 60

• Magnification: 60x

Mechanical Properties:

• Working Distance: 0.2 mm

Additional Information:

• Series: PLCN
