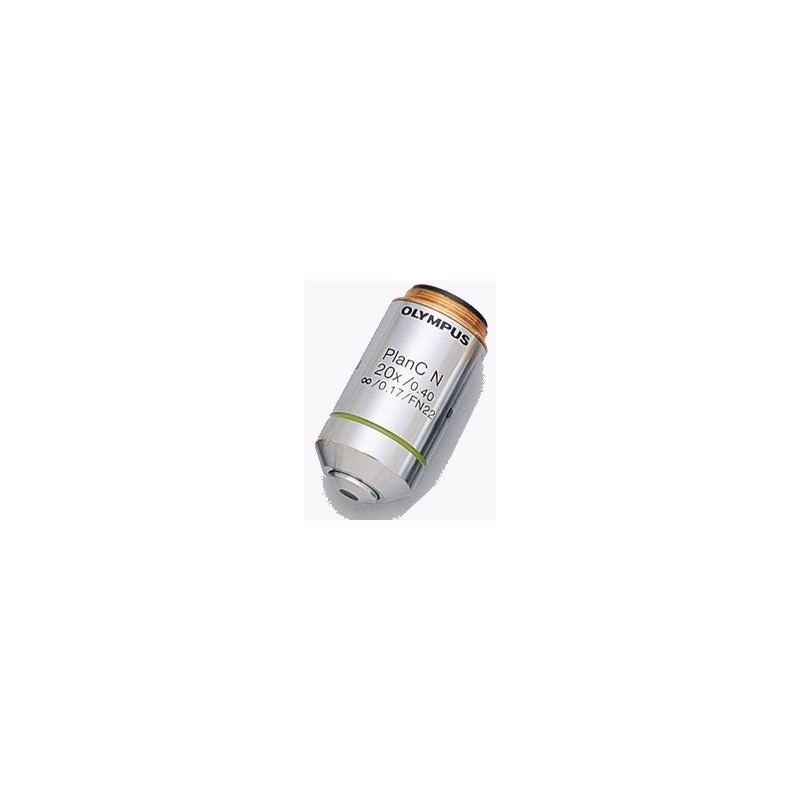

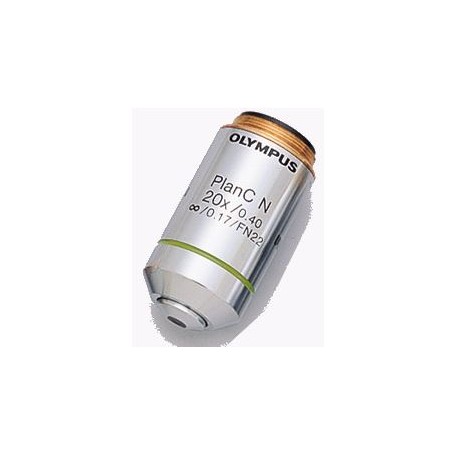

Evident Olympus Objective PLCN20X/0.4 Plan Achromatic (49914)
The Evident Olympus Objective PLCN20X/0.4 Plan Achromatic is a high-quality microscope objective designed for advanced research and clinical applications. This objective is part of the PLCN series, known for its plan achromatic design, which provides a flat field of view with good color correction. With its 20x magnification and 0.4 numerical aperture, this objective offers a balance between magnification and working distance, making it suitable for a wide range of microscopy applications.
271.13 CHF net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
The Evident Olympus Objective PLCN20X/0.4 Plan Achromatic is a high-quality microscope objective designed for advanced research and clinical applications. This objective is part of the PLCN series, known for its plan achromatic design, which provides a flat field of view with good color correction. With its 20x magnification and 0.4 numerical aperture, this objective offers a balance between magnification and working distance, making it suitable for a wide range of microscopy applications.
This objective lens is designed for applications requiring good magnification and a relatively long working distance. The plan achromatic design ensures a flat field of view with minimal chromatic aberration, providing about 95% of the image to appear flat. The 1.2 mm working distance allows for versatility in specimen handling and observation, making it suitable for various biological and materials science applications.
Product Overview:
-
Name: Evident Olympus Objective PLCN20X/0.4 Plan Achromatic
-
Supplier Product Number: N4239100
Optical Specifications:
-
Image Scale: 20x
-
Field Curvature: Plan
-
Cover Glass Correction: Yes (0-1.00 mm)
-
Colour Correction: Achromatic
-
Suspension: No
-
Immersion Lens: No
-
Infinity Corrected: Yes
-
Optical System: Infinity
Performance Characteristics:
-
Numerical Aperture: 0.4
-
Image Scale: 20
-
Magnification: 20x
Mechanical Properties:
-
Working Distance: 1.2 mm
Additional Information:
-
Series: PLCN
Data sheet
