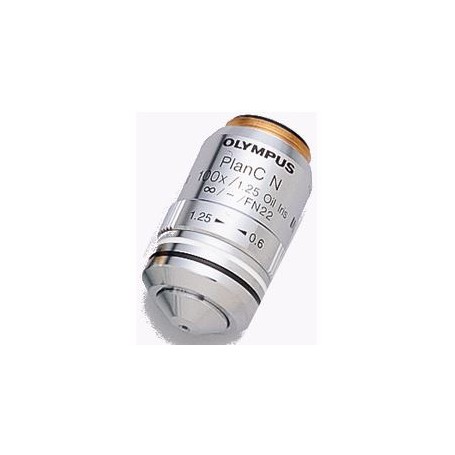

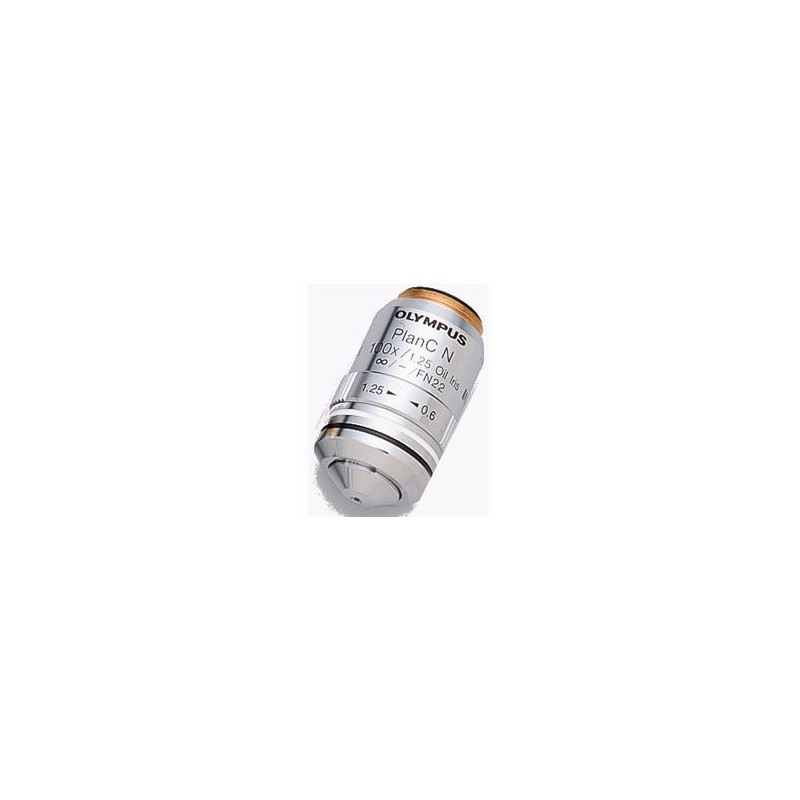

Evident Olympus PLCN 100xOl/0.6-1.25 Plan Achromat Objective (49918)

The Evident Olympus PLCN 100xOl/0.6-1.25 Plan Achromat Objective is a high-magnification microscope objective designed for advanced research and clinical applications. This objective is part of the PLCN series, known for its plan achromatic design, which provides a flat field of view with good color correction. With its 100x magnification and variable numerical aperture of 0.6-1.25, this oil immersion objective offers high resolution and contrast for detailed specimen observation.

This objective lens is designed for applications requiring very high magnification and resolution, such as cell biology, pathology, and microbiology. The plan achromatic design ensures a flat field of view with minimal chromatic aberration. The oil immersion feature and variable numerical aperture allow for adjustable resolution and image quality, making it particularly suitable for observing fine cellular structures and microorganisms under various conditions.

Product Overview:

• Name: Evident Olympus PLCN 100xOl/0.6-1.25 Plan Achromat Objective

• Supplier Product Number: N4239500

Optical Specifications:

• Image Scale: 100x

• Field Curvature: Plan

• Cover Glass Correction: Yes

• Colour Correction: Achromatic

• Suspension: No

• Immersion Lens: Yes (Oil)

• Infinity Corrected: Yes

• Optical System: Infinity

Performance Characteristics:

• Numerical Aperture: 0.6 - 1.25 (Iris)

• Image Scale: 100

• Magnification: 100x

Mechanical Properties:

• Working Distance: 0.13 mm

Additional Information:

• Series: PLCN
