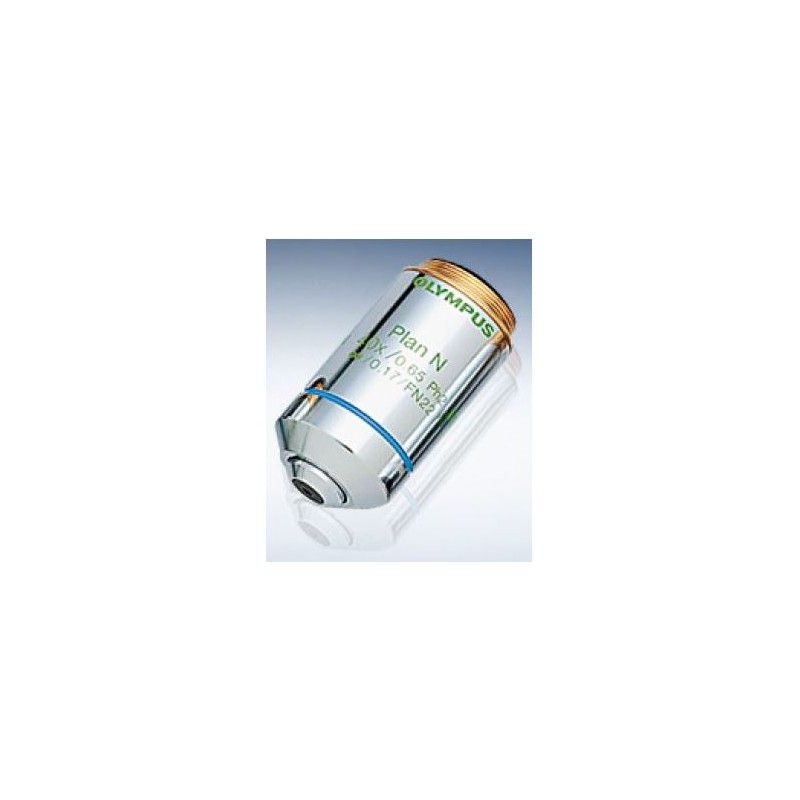

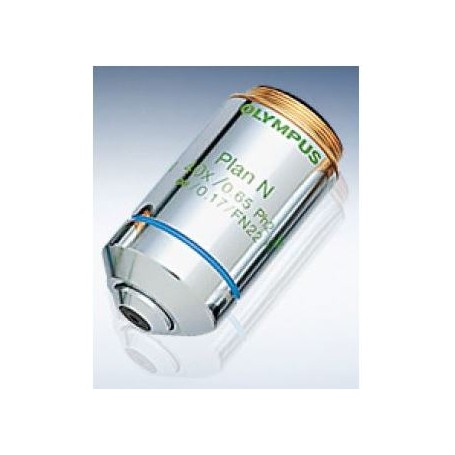

Evident Olympus PLCN40XPH/0,65, Plan Achromat Phase Objective (49950)

The Evident Olympus PLCN40XPH/0,65 Plan Achromat Phase Objective is a high-quality microscope objective designed for advanced clinical and research applications. This objective is part of the PLCN-PH series, which was developed specifically for transmitted phase-contrast light observation. It provides consistent image flatness up to F.N.22, making it ideal for clinical inspections and other applications requiring high-contrast imaging of transparent specimens.

43729.49 ₴
Tax included

35552.43 ₴ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Evident Olympus PLCN40XPH/0,65 Plan Achromat Phase Objective is a high-quality microscope objective designed for advanced clinical and research applications. This objective is part of the PLCN-PH series, which was developed specifically for transmitted phase-contrast light observation. It provides consistent image flatness up to F.N.22, making it ideal for clinical inspections and other applications requiring high-contrast imaging of transparent specimens.



This objective lens is designed for applications requiring high magnification and phase contrast capabilities. The plan achromatic design ensures a flat field of view with minimal chromatic aberration, providing clear and accurate imaging across the entire field. The 0.6 mm working distance allows for high-resolution imaging of specimens, making it particularly suitable for clinical inspections and biological research involving live or unstained samples.



Product Overview:

  • Name: Evident Olympus PLCN40XPH/0,65, Plan Achromat Phase Objective

  • Supplier Product Number: N4239800

  • Series: PLCN

Optical Specifications:

  • Image Scale: 40x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes (0-1.00 mm)

  • Colour Correction: Achromatic

  • Suspension: No

  • Immersion Lens: No

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Numerical Aperture: 0.65

  • Image Scale: 40

  • Magnification: 40x

Mechanical Properties:

  • Working Distance: 0.6 mm
