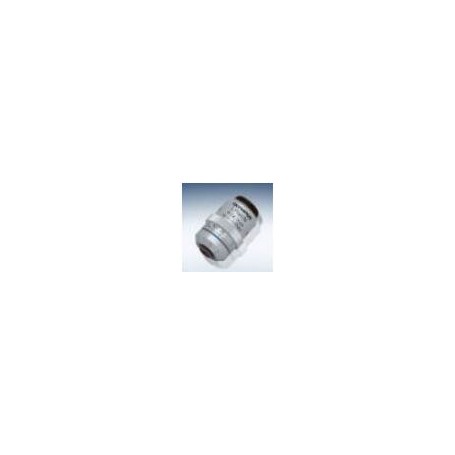

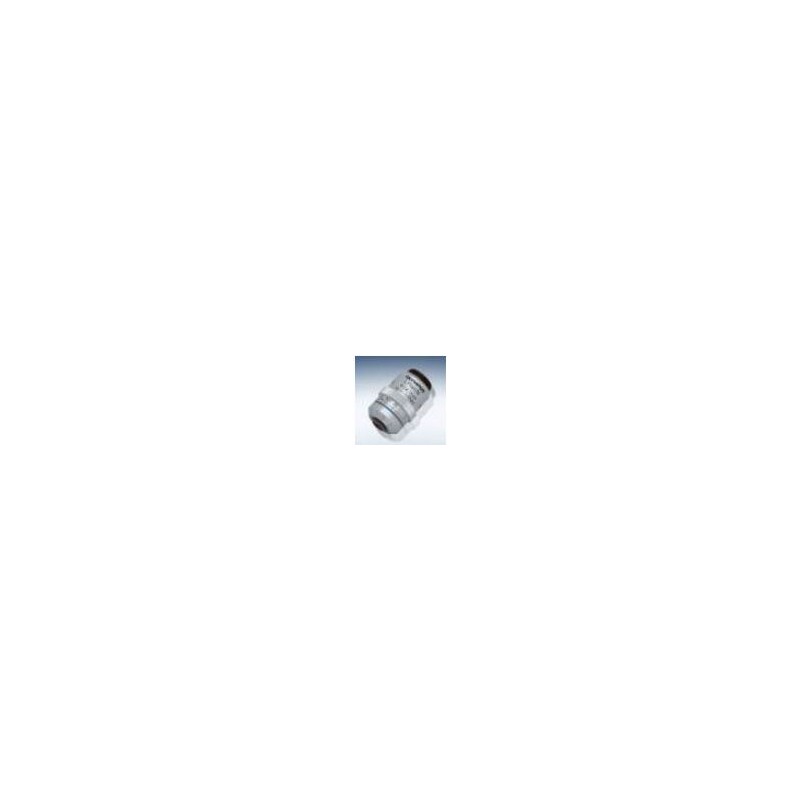

Evident Olympus Objective LPLN40X/0.65, plan, infinity, dry, w.d.3.4-4.10, cover glass 0-1.00 (79551)

The Evident Olympus Objective LPLN40X/0.65 is a high-quality microscope objective designed for advanced research and clinical applications. This objective is part of the PLN series, known for its plan achromatic design, which provides a flat field of view with good color correction. With its 40x magnification and 0.65 numerical aperture, this dry objective offers high resolution and contrast for detailed specimen observation, making it suitable for a wide range of microscopy applications.

This objective lens is designed for applications requiring high magnification and good resolution without the need for immersion media. The plan achromatic design ensures a flat field of view with minimal chromatic aberration. The relatively long working distance of 3.4-4.10 mm provides flexibility in specimen handling and observation, making it suitable for various biological and materials science applications.

Product Overview:

• Name: Evident Olympus Objective LPLN40X/0.65, plan, infinity, dry

• Supplier Product Number: N5741300

Optical Specifications:

• Image Scale: 40x

• Field Curvature: Plan

• Cover Glass Correction: Optional (0-1.00 mm)

• Colour Correction: Achromatic

• Suspension: No

• Immersion Lens: No (Dry)

• Infinity Corrected: Yes

• Optical System: Infinity

Performance Characteristics:

• Field of View Value: 22

• Numerical Aperture: 0.65

• Image Scale: 40

• Magnification: 40x

Mechanical Properties:

• Working Distance: 3.4-4.10 mm

• Diameter: 24 mm

• Length: 50 mm

Additional Information:

• Series: PLN
