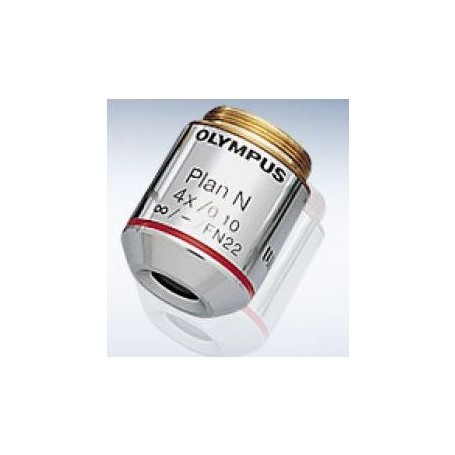

Evident Olympus Objective PLN 4X/0.1 Plan Achromatic (49921)

The Evident Olympus Objective PLN 4X/0.1 is a plan achromatic objective designed for clinical laboratory and examination work. This objective is part of the PLN-CY and PLFLN-CY series, known for their superb field flatness and consistent brightness across different magnifications. With its 4x magnification and 0.1 numerical aperture, this objective is ideal for low-power observations with a wide field of view.

211.70 £
Tax included

172.11 £ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Evident Olympus Objective PLN 4X/0.1 is a plan achromatic objective designed for clinical laboratory and examination work. This objective is part of the PLN-CY and PLFLN-CY series, known for their superb field flatness and consistent brightness across different magnifications. With its 4x magnification and 0.1 numerical aperture, this objective is ideal for low-power observations with a wide field of view.

This objective is particularly suited for applications requiring a wide field of view and long working distance, such as initial sample scanning, tissue examination, and general microscopy tasks in clinical settings. The plan achromatic design ensures a flat field of view with good color correction, providing clear and accurate imaging across the entire field.



Key Features:

  • Magnification: 4x

  • Plan achromatic design

  • Working distance: 18.5 mm

  • Numerical aperture: 0.1

  • Field Number (FN): 22

  • No correction for cover slide thickness

  • Equipped with ND filters for consistent brightness

Optical Specifications:

  • Image Scale: 4x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes

  • Colour Correction: Achromatic

  • Suspension: No

  • Immersion Lens: No

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 22

  • Numerical Aperture: 0.1

  • Image Scale: 4

  • Magnification: 4x

Mechanical Properties:

  • Working Distance: 18.5 mm

Additional Information:

  • Series: PLN

  • Supplier Product Number: N1215700
