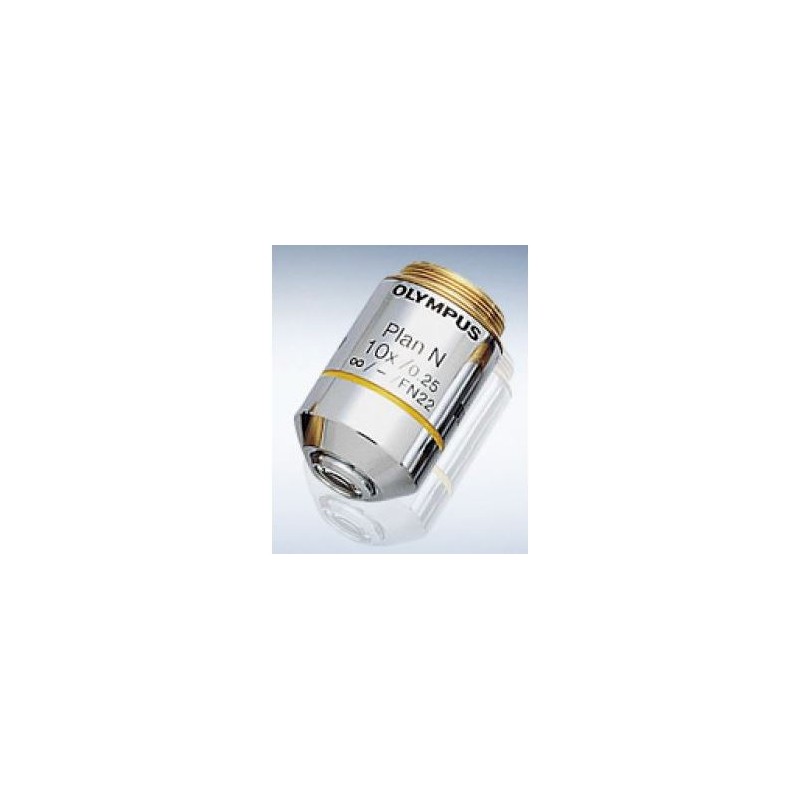

Evident Olympus Objective PLN10X/0.25 Plan Achromatic (49923)

The Evident Olympus Objective PLN10X/0.25 is a plan achromatic objective designed for clinical laboratory and examination work. This objective is part of the PLN series, known for its superb field flatness and consistent brightness across different magnifications. With its 10x magnification and 0.25 numerical aperture, this objective offers a good balance between magnification and working distance.

This objective is particularly suited for applications in clinical settings, offering a good compromise between magnification and field of view. The plan achromatic design ensures a flat field of view with good color correction, providing clear and accurate imaging across the entire field. Its compatibility with all DIN cover slides makes it versatile for various specimen preparations in medical and biological applications.

Key Features:

• Magnification: 10x

• Plan achromatic design

• Working distance: 10.6 mm

• Numerical aperture: 0.25

• Field Number (FN): 22

• Corrected for all DIN cover slides

• Equipped with ND filters for consistent brightness

Optical Specifications:

• Image Scale: 10x

• Field Curvature: Plan

• Cover Glass Correction: Yes

• Colour Correction: Achromatic

• Suspension: No

• Immersion Lens: No

• Infinity Corrected: Yes

• Optical System: Infinity

Performance Characteristics:

• Field of View Value: 22

• Numerical Aperture: 0.25

• Image Scale: 10

• Magnification: 10x

Mechanical Properties:

• Working Distance: 10.6 mm

Additional Information:

• Series: PLN

• Field of Application: Medicine (Yes)

• Supplier Product Number: N1215800
