Evident Olympus Objective PLN100XO/1.25 Plan Achromatic Objective Oil (49929)

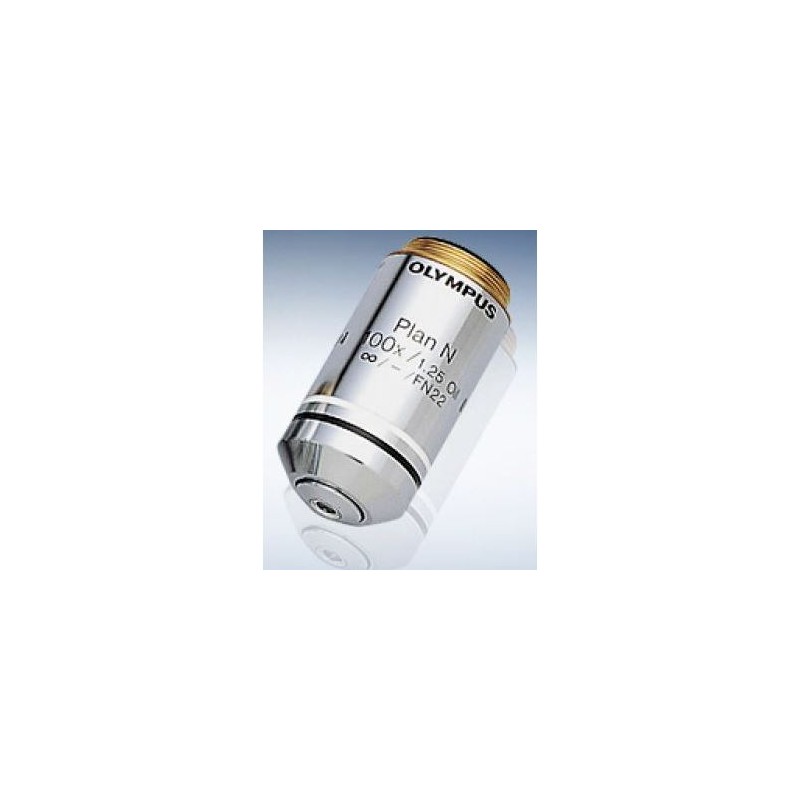

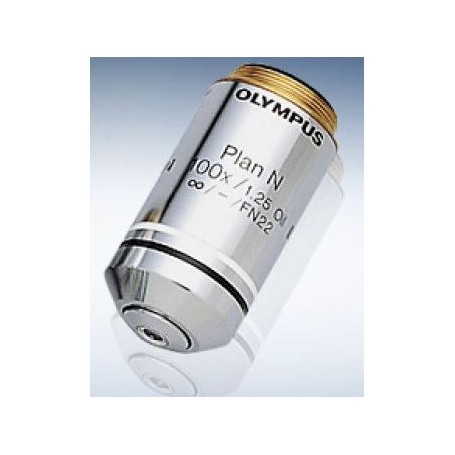

The PLN100XO/1.25 is a high-magnification, oil immersion objective that is part of the PLN-CY standard series. This objective is designed to provide superb field flatness and consistent brightness across different magnifications, making it ideal for clinical laboratory and examination work. It excels in both fluorescence and brightfield observation in transmitted light.

2626.86 CHF
Tax included

2135.66 CHF net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The PLN100XO/1.25 is a high-magnification, oil immersion objective that is part of the PLN-CY standard series. This objective is designed to provide superb field flatness and consistent brightness across different magnifications, making it ideal for clinical laboratory and examination work. It excels in both fluorescence and brightfield observation in transmitted light.

This objective is particularly suited for applications requiring very high magnification and resolution, such as detailed cellular studies, pathology, and advanced clinical diagnostics. The plan achromatic design ensures a flat field of view with good color correction, while the oil immersion feature allows for maximum resolution and image quality.



Key Features:

  • Magnification: 100x

  • Plan achromatic design

  • Oil immersion

  • Working distance: 0.15 mm

  • Numerical aperture: 1.25

  • Field Number (FN): 22

  • Cover slide correction: 1.7mm

  • Spring-loaded

Optical Specifications:

  • Image Scale: 100x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes (0-1.00 mm)

  • Colour Correction: Achromatic

  • Suspension: Yes

  • Immersion Lens: Yes

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 22

  • Numerical Aperture: 1.25

  • Image Scale: 100

  • Magnification: 100x

Mechanical Properties:

  • Working Distance: 0.15 mm

Additional Information:

  • Series: PLN

  • Supplier Product Number: N1216100
