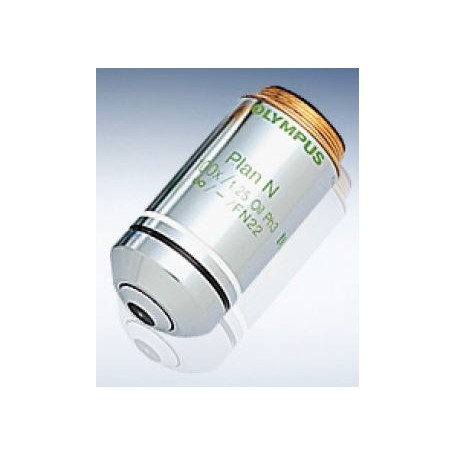

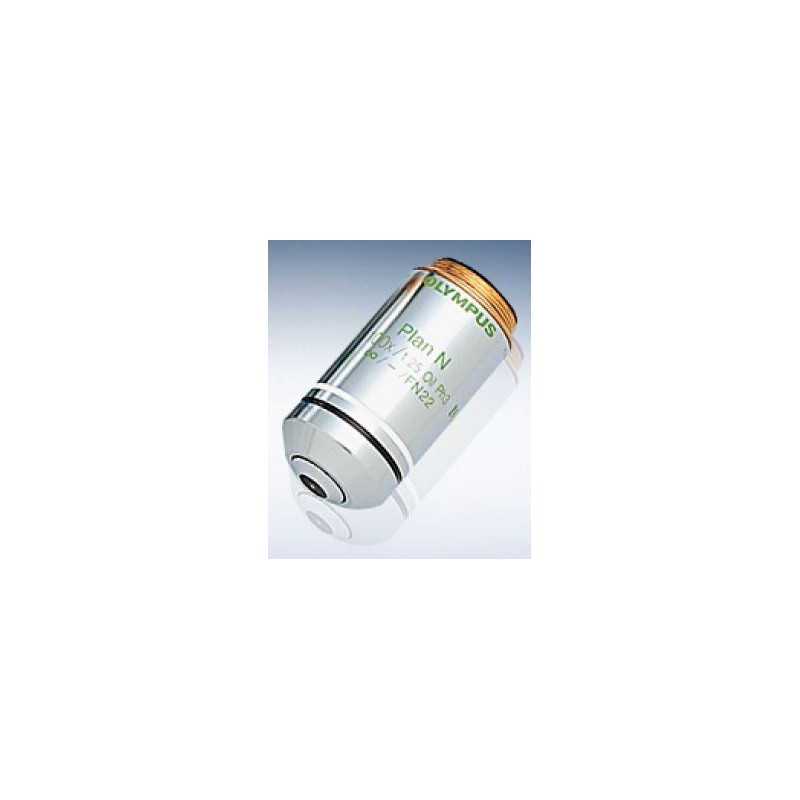

Evident Olympus PLN100XOPH/1,25 Plan Achromat Phase Objective Oil (49951)

The PLN100XOPH/1,25 is a high-magnification, oil immersion phase contrast objective that is part of the PLN-PH series. This objective is specifically developed for transmitted phase-contrast light observation and is widely used in clinical inspections. It provides consistent image flatness up to F.N.22, making it ideal for detailed examination of transparent specimens.

This objective is particularly suited for applications requiring very high magnification and resolution in phase contrast microscopy, such as detailed cellular studies, microbiology, and advanced clinical diagnostics. The plan achromatic design ensures a flat field of view with good color correction, while the oil immersion and phase contrast features allow for maximum resolution and contrast when observing transparent or unstained biological specimens.

Key Features:

• Part of the PLN-PH Series

• Designed for transmitted phase-contrast light observation

• Provides consistent image flatness up to F.N.22

• Ideal for clinical inspections

• Oil immersion

Optical Specifications:

• Image Scale: 100x

• Field Curvature: Plan

• Cover Glass Correction: Yes

• Colour Correction: Achromatic

• Suspension: No

• Immersion Lens: Yes (Oil)

• Infinity Corrected: Yes

• Optical System: Infinity

Performance Characteristics:

• Field of View Value: 22

• Numerical Aperture: 1.25

• Image Scale: 100

• Magnification: 100x

Mechanical Properties:

• Working Distance: 0.15 mm

Additional Information:

• Series: PLN

• Supplier Product Number: N1216500
