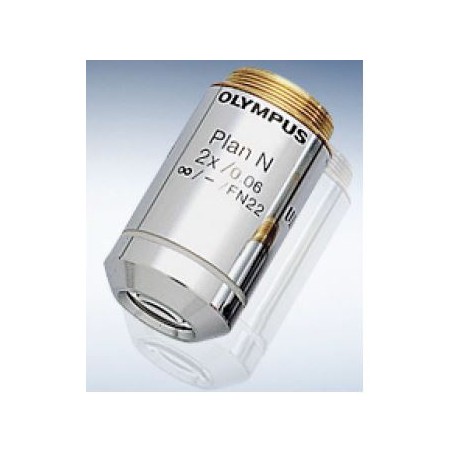

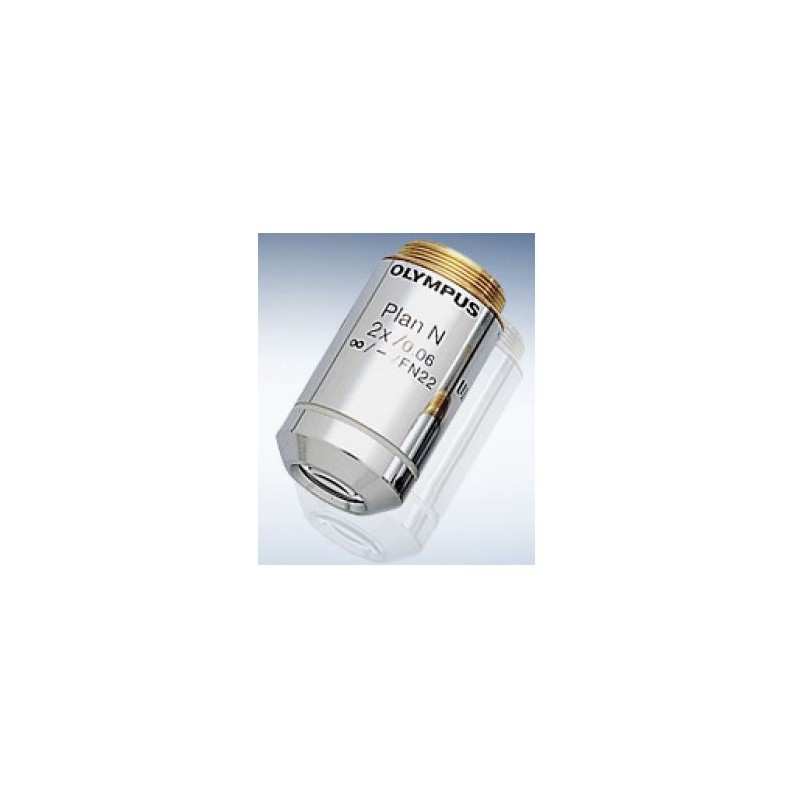

Evident Olympus PLN2X/0.06 Plan Achromatic Objective (49919)

The Evident Olympus PLN2X/0.06 Plan Achromatic Objective is a low-magnification microscope objective designed for applications requiring a wide field of view and excellent image quality. This objective is part of the PLN series, known for its plan achromatic design, which provides a flat field of view with good color correction. With its 2x magnification and 0.06 numerical aperture, this objective is ideal for capturing large sample areas with high clarity and minimal distortion.

1945.55 $
Tax included

1581.75 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Evident Olympus PLN2X/0.06 Plan Achromatic Objective is a low-magnification microscope objective designed for applications requiring a wide field of view and excellent image quality. This objective is part of the PLN series, known for its plan achromatic design, which provides a flat field of view with good color correction. With its 2x magnification and 0.06 numerical aperture, this objective is ideal for capturing large sample areas with high clarity and minimal distortion.



This objective lens is designed for applications requiring a wide field of view and low magnification, such as whole slide imaging, material science, and industrial inspection. The plan achromatic design ensures excellent color correction and flat-field imaging across the entire field of view. The relatively long working distance of 5.8 mm provides ample space for sample manipulation, making it suitable for various microscopy techniques and sample types.



Product Overview:

  • Name: Evident Olympus PLN2X/0.06 Plan Achromatic Objective

  • Supplier Product Number: N1215600

Optical Specifications:

  • Image Scale: 2x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes

  • Colour Correction: Achromatic

  • Suspension: No

  • Immersion Lens: No

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 22

  • Numerical Aperture: 0.06

  • Image Scale: 2

  • Magnification: 2x

Mechanical Properties:

  • Working Distance: 5.8 mm

Additional Information:

  • Series: PLN
