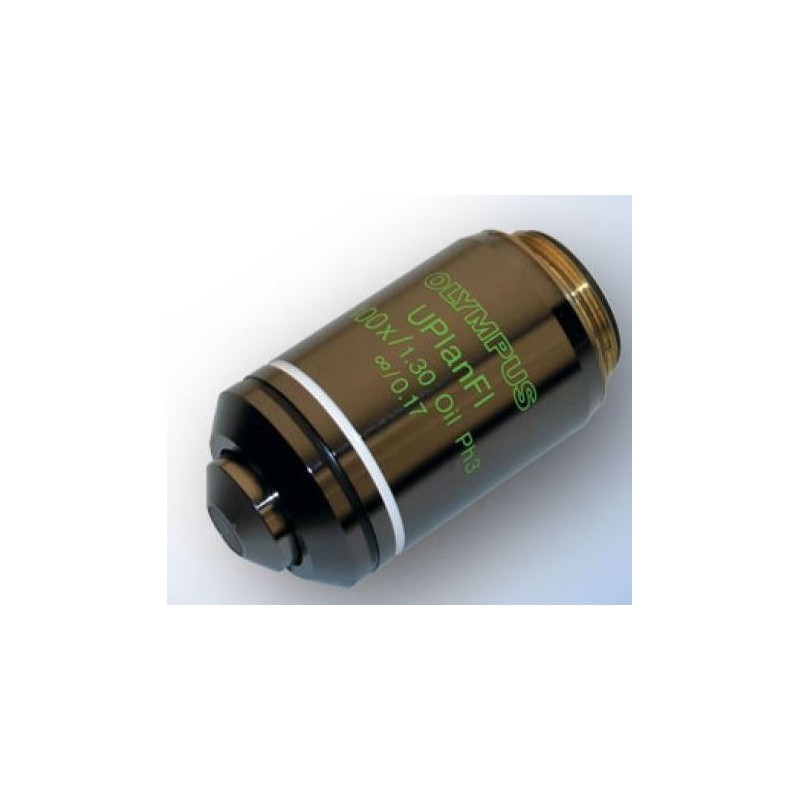

Evident Olympus Objective UPLFLN100xO2PH-2/1.3 (61459)

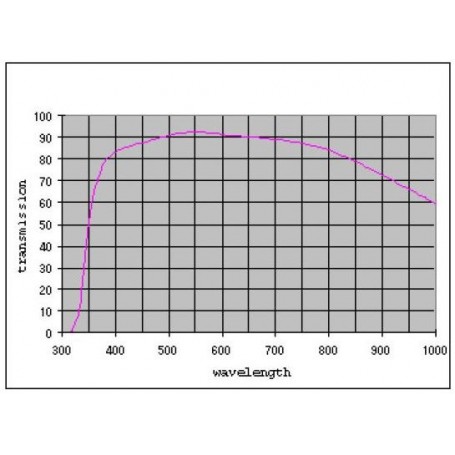

The UPLFLN100XOPH/1.3 is a high-performance phase-contrast microscope objective designed for advanced research and clinical applications. Part of the UPLFLN-PH series, this objective is optimized for phase-contrast imaging, offering exceptional resolution, contrast, and a high signal-to-noise (S/N) ratio. It produces flat images with high transmission factors extending into the near-infrared spectrum, making it ideal for detailed observations.

9748.13 BGN
Tax included

7925.31 BGN net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The UPLFLN100XOPH/1.3 is a high-performance phase-contrast microscope objective designed for advanced research and clinical applications. Part of the UPLFLN-PH series, this objective is optimized for phase-contrast imaging, offering exceptional resolution, contrast, and a high signal-to-noise (S/N) ratio. It produces flat images with high transmission factors extending into the near-infrared spectrum, making it ideal for detailed observations.

This objective is particularly suited for applications requiring high magnification and phase contrast capabilities, such as cellular studies, pathology, and advanced clinical diagnostics. Its design ensures excellent imaging performance with flat-field correction and enhanced contrast, making it an ideal choice for phase contrast microscopy in both research and medical settings.



Key Features:

  • Magnification: 100x

  • Numerical Aperture: 1.3

  • Oil Immersion

  • Plan Fluorite Design

  • Phase Contrast Optimization

  • Infinity-Corrected

Optical Specifications:

  • Image Scale: 100x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes (0-1.00 mm)

  • Colour Correction: Achromatic

  • Suspension: Yes

  • Immersion Lens: Yes (Oil)

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 26.5

  • Image Scale: 100

  • Magnification: 100x

Mechanical Properties:

  • Working Distance: 0.2 mm

Compatibility:

  • Series: UPLFLN

  • Compatible with: CX33, CX43

Application:

  • Field of Application: Medicine (Yes)

Additional Information:

  • Supplier Product Number: N5704100
