Evident Olympus Objective UPLFLN4XPH-2/0,13 (61454)

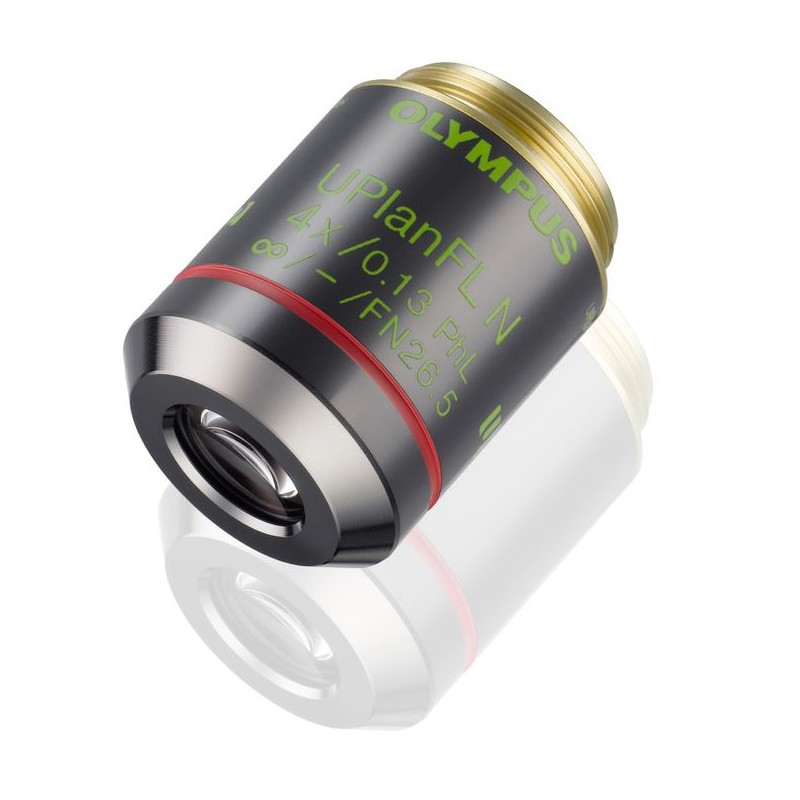

The UPLFLN4XPH/0.13 is a high-performance phase-contrast microscope objective designed for advanced research and clinical applications. This objective is part of the UPLFLN-PH series, known for its effectiveness in phase-contrast observations with high S/N ratio, resolution, and contrast imaging. It produces flat images with high transmission factors extending into the near-infrared spectrum.

152848.89 ¥
Tax included

124267.39 ¥ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The UPLFLN4XPH/0.13 is a high-performance phase-contrast microscope objective designed for advanced research and clinical applications. This objective is part of the UPLFLN-PH series, known for its effectiveness in phase-contrast observations with high S/N ratio, resolution, and contrast imaging. It produces flat images with high transmission factors extending into the near-infrared spectrum.

This objective is particularly suited for applications requiring low magnification and phase contrast capabilities, such as scanning large areas of tissue samples, cell culture observations, and routine clinical examinations. Its design ensures excellent imaging performance with flat-field correction and enhanced contrast, making it an ideal choice for phase contrast microscopy in both research and medical settings. The long working distance of 17 mm provides ample space for sample manipulation and observation.



Key Features:

  • Magnification: 4x

  • Numerical Aperture: 0.13

  • Plan Fluorite Design

  • Phase Contrast Optimization

  • Infinity-Corrected

Optical Specifications:

  • Image Scale: 4x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes

  • Colour Correction: Achromatic

  • Suspension: No

  • Immersion Lens: No

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 26.5

  • Image Scale: 4

  • Magnification: 4x

Mechanical Properties:

  • Working Distance: 17 mm

Compatibility:

  • Series: UPLFLN

  • Compatible with: CX33, CX43

Application:

  • Field of Application: Medicine (Yes)

Additional Information:

  • Supplier Product Number: N5703600
