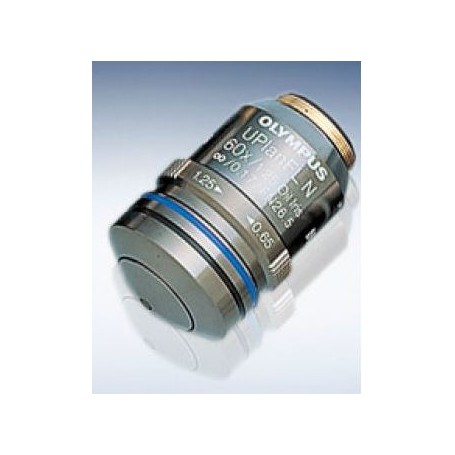

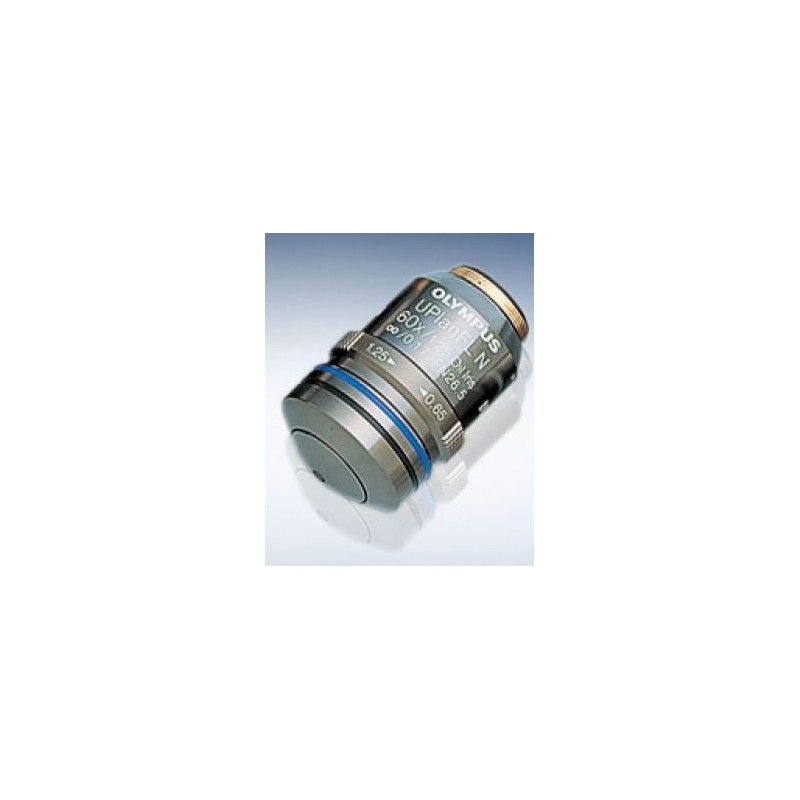

Evident Olympus Objective UPLFLN60X-2/0,9 (61450)

The UPLFLN60X/0.9 is a high-performance microscope objective designed for advanced research and clinical applications. This objective is part of the UPLFLN series, known for producing flat images with high transmission factors up to the near-infrared spectrum. It excels in brightfield and Nomarski DIC observations, offering high S/N ratio, resolution, and contrast imaging.

4088.89 £
Tax included

3324.3 £ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The UPLFLN60X/0.9 is a high-performance microscope objective designed for advanced research and clinical applications. This objective is part of the UPLFLN series, known for producing flat images with high transmission factors up to the near-infrared spectrum. It excels in brightfield and Nomarski DIC observations, offering high S/N ratio, resolution, and contrast imaging.

This objective is particularly suited for applications requiring high magnification and resolution without the need for immersion media, such as detailed cellular studies, pathology, and advanced clinical diagnostics. Its design ensures excellent performance in digital imaging, making it an ideal choice for cutting-edge microscopy techniques in both research and medical settings. The high numerical aperture of 0.9 provides excellent resolution for a dry objective.



Key Features:

  • Magnification: 60x

  • Numerical Aperture: 0.9

  • Plan Fluorite Design

  • Infinity-Corrected

  • Dry Objective (Non-immersion)

Optical Specifications:

  • Image Scale: 60x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes

  • Colour Correction: Achromatic

  • Suspension: Yes

  • Immersion Lens: No

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 26.5

  • Image Scale: 60

  • Magnification: 60x

Mechanical Properties:

  • Working Distance: 0.2 mm

Compatibility:

  • Series: UPLFLN

  • Compatible with: CX33, CX43

Application:

  • Field of Application: Medicine (Yes)

Additional Information:

  • Supplier Product Number: N5703200
