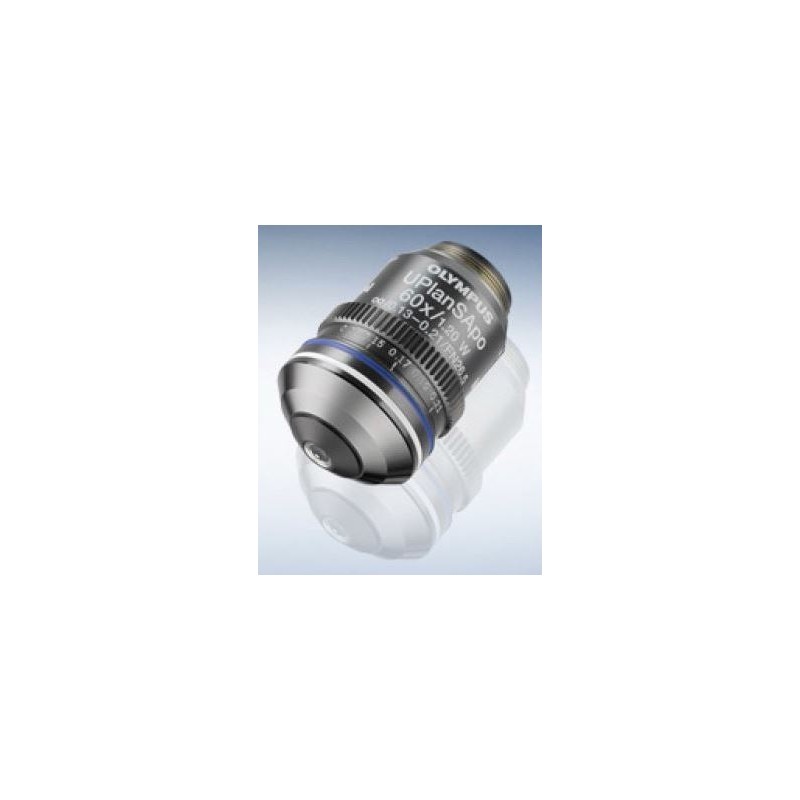

Evident Olympus Objective UPLSAPO60XW/1.20 (49976)

The UPLSAPO60XW/1.20 is a high-performance Super Apochromat water immersion objective designed for advanced research and clinical applications. This objective is part of the UPLSAPO series, known for its superior aberration correction from the visible to near-infrared spectrum. It offers exceptional fluorescence sensitivity and produces sharp, clear images without color shift in brightfield and Nomarski DIC observations.

83581.87 kn
Tax included

67952.74 kn net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The UPLSAPO60XW/1.20 is a high-performance Super Apochromat water immersion objective designed for advanced research and clinical applications. This objective is part of the UPLSAPO series, known for its superior aberration correction from the visible to near-infrared spectrum. It offers exceptional fluorescence sensitivity and produces sharp, clear images without color shift in brightfield and Nomarski DIC observations.

This objective is particularly suited for applications requiring high magnification, high numerical aperture, and superior color correction, such as live cell imaging, deep tissue observations, and advanced fluorescence microscopy. Its water immersion feature allows for high-resolution imaging of living specimens, making it an ideal choice for cutting-edge life science research and medical imaging applications.



Key Features:

  • Magnification: 60x

  • Numerical Aperture: 1.20

  • Water Immersion

  • Super Apochromat Design

  • High-NA for deep tissue imaging

  • Infinity-Corrected

Optical Specifications:

  • Image Scale: 60x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes (0.13 - 0.21 mm)

  • Colour Correction: Apochromatic

  • Suspension: No

  • Immersion Lens: Yes (Water)

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 26.5

  • Numerical Aperture: 1.2

  • Image Scale: 60

  • Magnification: 60x

Mechanical Properties:

  • Working Distance: 0.28 mm

Application:

  • Field of Application: Medicine (Yes)

Additional Information:

  • Series: UPLSAPO

  • Supplier Product Number: N1480800
