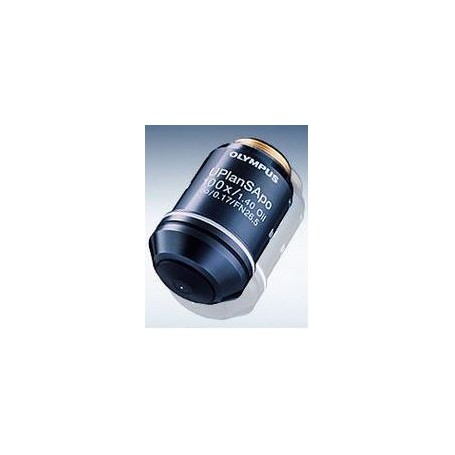

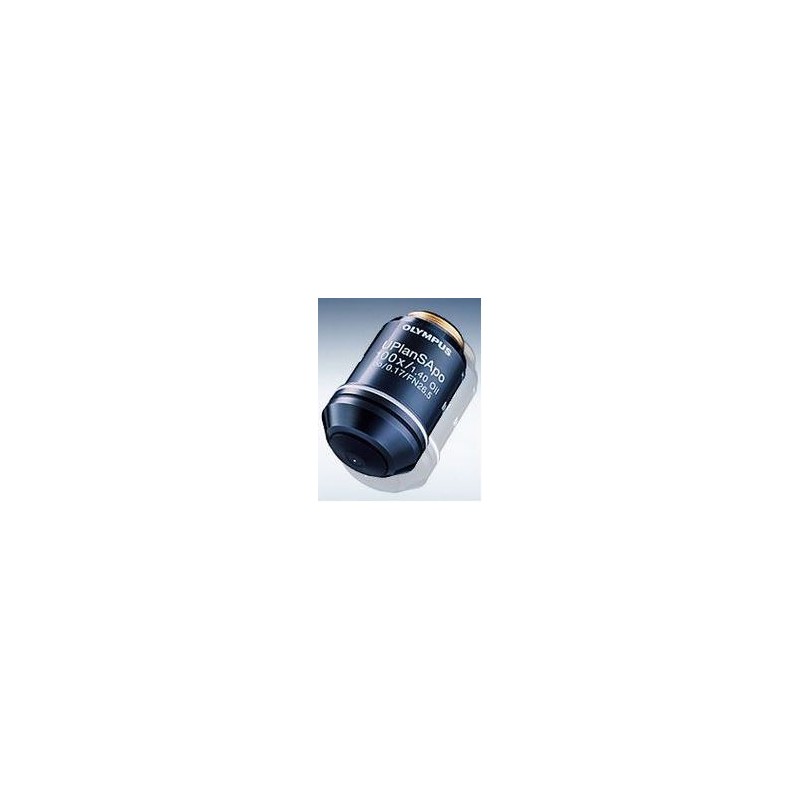

Evident Olympus UPLSAPO100XO/1.4 Objective (49977)

The UPLSAPO100XO/1.4 is a high-performance Super Apochromat oil immersion objective designed for advanced research and clinical applications. This objective is part of the UPLSAPO series, known for its superior aberration correction from the visible to near-infrared spectrum. It offers exceptional fluorescence sensitivity and produces sharp, clear images without color shift in brightfield and Nomarski DIC observations.

2989342.12 Ft
Tax included

2430359.45 Ft net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The UPLSAPO100XO/1.4 is a high-performance Super Apochromat oil immersion objective designed for advanced research and clinical applications. This objective is part of the UPLSAPO series, known for its superior aberration correction from the visible to near-infrared spectrum. It offers exceptional fluorescence sensitivity and produces sharp, clear images without color shift in brightfield and Nomarski DIC observations.

This objective is particularly suited for applications requiring very high magnification, high numerical aperture, and superior color correction, such as super-resolution microscopy, single-molecule imaging, and advanced fluorescence techniques. Its oil immersion feature allows for the highest possible numerical aperture, making it an ideal choice for cutting-edge life science research and medical imaging applications where maximum resolution is crucial.



Key Features:

  • Magnification: 100x

  • Numerical Aperture: 1.4

  • Oil Immersion

  • Super Apochromat Design

  • High-NA for superior resolution

  • Infinity-Corrected

Optical Specifications:

  • Image Scale: 100x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes (0-1.00 mm)

  • Colour Correction: Achromatic

  • Suspension: Yes

  • Immersion Lens: Yes (Oil)

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 26.5

  • Numerical Aperture: 1.4

  • Image Scale: 100

  • Magnification: 100x

Mechanical Properties:

  • Working Distance: 0.13 mm

Additional Information:

  • Series: UPLSAPO

  • Supplier Product Number: N1480900

Data sheet

BB3O4ZBBGJ
