Evident Olympus UPLSAPO40X/0.95 Objective (49974)

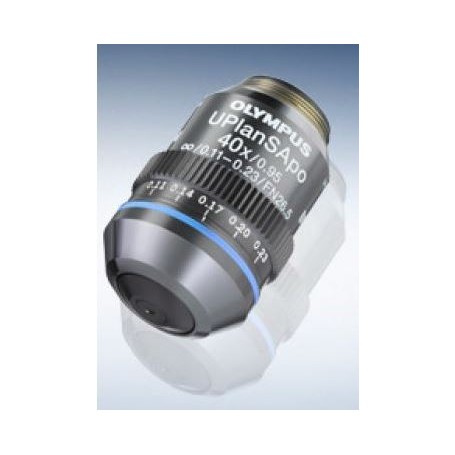

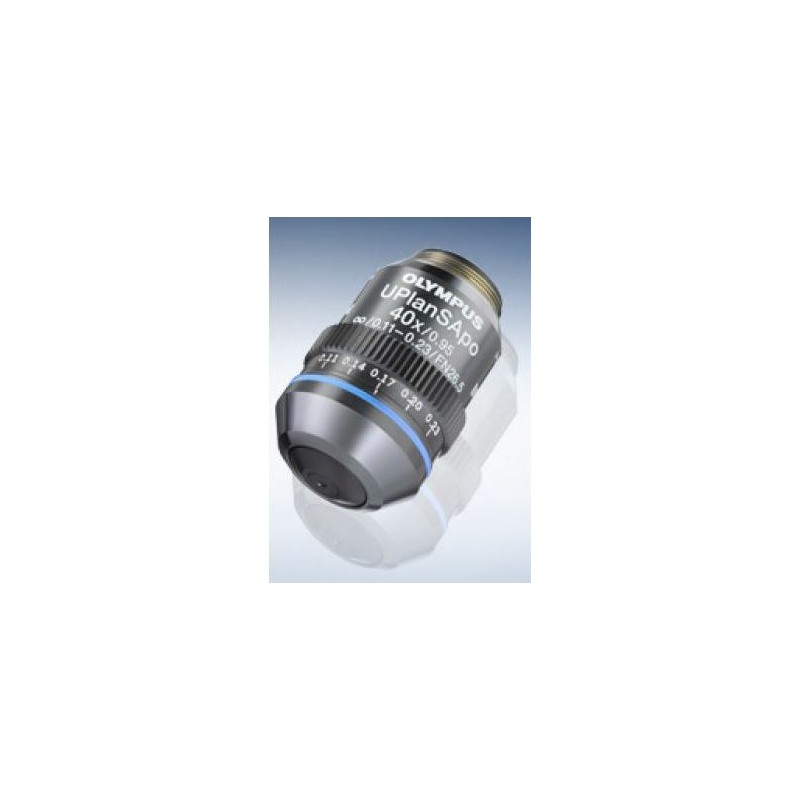

The UPLSAPO40X/0.95 is a high-performance Super Apochromat objective designed for advanced research and clinical applications. This objective is part of the UPLSAPO series, known for its superior aberration correction from the visible to near-infrared spectrum. It offers exceptional fluorescence sensitivity and produces sharp, clear images without color shift in brightfield and Nomarski DIC observations.

33012.73 kr
Tax included

26839.61 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The UPLSAPO40X/0.95 is a high-performance Super Apochromat objective designed for advanced research and clinical applications. This objective is part of the UPLSAPO series, known for its superior aberration correction from the visible to near-infrared spectrum. It offers exceptional fluorescence sensitivity and produces sharp, clear images without color shift in brightfield and Nomarski DIC observations.

This objective is particularly suited for applications requiring high magnification, high numerical aperture, and superior color correction without the need for immersion media. It excels in fluorescence microscopy, live cell imaging, and high-resolution brightfield observations. The combination of a high NA (0.95) and apochromatic correction makes it ideal for cutting-edge life science research and medical imaging applications where both resolution and color fidelity are crucial.



Key Features:

  • Magnification: 40x

  • Numerical Aperture: 0.95

  • Dry Objective (Non-immersion)

  • Super Apochromat Design

  • High-NA for superior resolution

  • Infinity-Corrected

Optical Specifications:

  • Image Scale: 40x

  • Field Curvature: Plan

  • Cover Glass Correction: Yes

  • Colour Correction: Apochromatic

  • Suspension: Yes

  • Immersion Lens: No

  • Infinity Corrected: Yes

  • Optical System: Infinity

Performance Characteristics:

  • Field of View Value: 26.5

  • Numerical Aperture: 0.95

  • Image Scale: 40

  • Magnification: 40x

Mechanical Properties:

  • Working Distance: 0.18 mm

Additional Information:

  • Series: UPLSAPO

  • Supplier Product Number: N2246700
