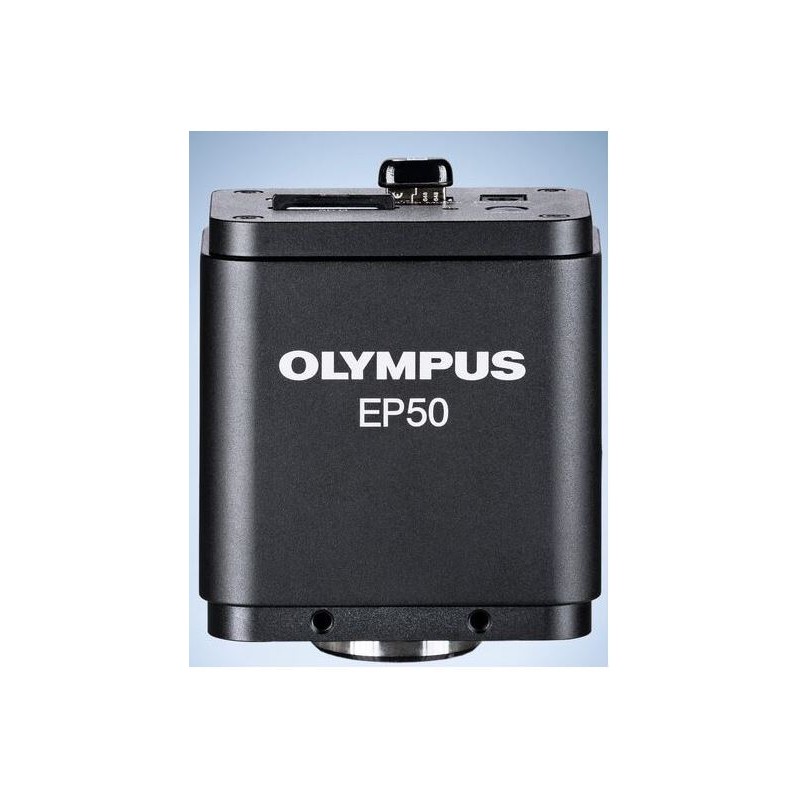

Evident Olympus EP50, 5 MP, 1/1.8 inch, colour CMOS camera, HDMI interface, Wi-Fi (opt.) (63626)

The Olympus EP50 camera and WiFi adapter transform static microscopy labs into dynamic, interactive learning environments. This camera offers flexible controls and display options, allowing connection to mobile devices or WiFi-enabled PCs/laptops via WiFi or LAN. It produces high-quality, sharp 5MP images with high frame rates, enabling students to navigate quickly between samples.

Interactive Learning

The EPview app enhances interactivity and collaboration:

• Control the EP50 camera using the EPview mobile app or PC/laptop software

• Up to 6 users can connect to the same WiFi-enabled EP50 camera

• Access images from other EP50 cameras during lessons

• Capture, edit, store, and share images easily

• Simultaneous live image output via WiFi and HDMI

The free EPview app is available on the App Store and Google Play Store. For PC/laptop users, the EPview software offers the same functionality and is compatible with Windows operating systems.

Improved Lessons and Learning Process

The WiFi-enabled EP50 camera offers various benefits for teaching staff and students:

• Stream live images to multiple devices

• Display sample images on high-resolution monitors, projectors, or interactive whiteboards

• Show full-HD videos (60 fps)

• Save images on an SD card for later analysis

Students can experience digital imaging-supported learning using the intuitive On-Screen Display (OSD) software, allowing easy capture, display, and editing of sample images and videos.

Stand-alone Mode

The EP50 camera can be controlled via the OSD software using only a monitor and a USB mouse, offering:

• A user-friendly interface for lessons

• Reduced hardware costs and space requirements

• Increased flexibility

• Live image viewing, image saving to SD card, and image annotation capabilities

Highlights

• 5 Mpx, 1/1.8 inch, CMOS colour camera with C-Mount connection

• HDMI port and SD card slot

• USB 2.0 port for mouse

• WiFi and USB-to-ethernet adapter (sold separately)

• Internal OSD software and WiFi interface

Included Items

Camera with protective cap, HDMI cable, USB-to-ethernet adapter, SD card, USB mouse, power cable, and user guide. (WiFi adapter not included in standard bundle)

Note: A 0.5x C-mount adapter from your microscope manufacturer is required for this camera.

Specifications

• 5.0 Megapixel CMOS sensor (1/1.8")

• Resolution: 2592x1944 (photo), 1920x1080 (video)

• 2.4μm pixel size

• HDMI/WiFi interface

• 60 fps frame rate

• Exposure time: 1-918 ms

• Rolling Shutter

• Supported OS: Win 7/8/10

• Application areas: Education and Technical training

The EP50 camera is not suitable for clinical diagnostic purposes.
