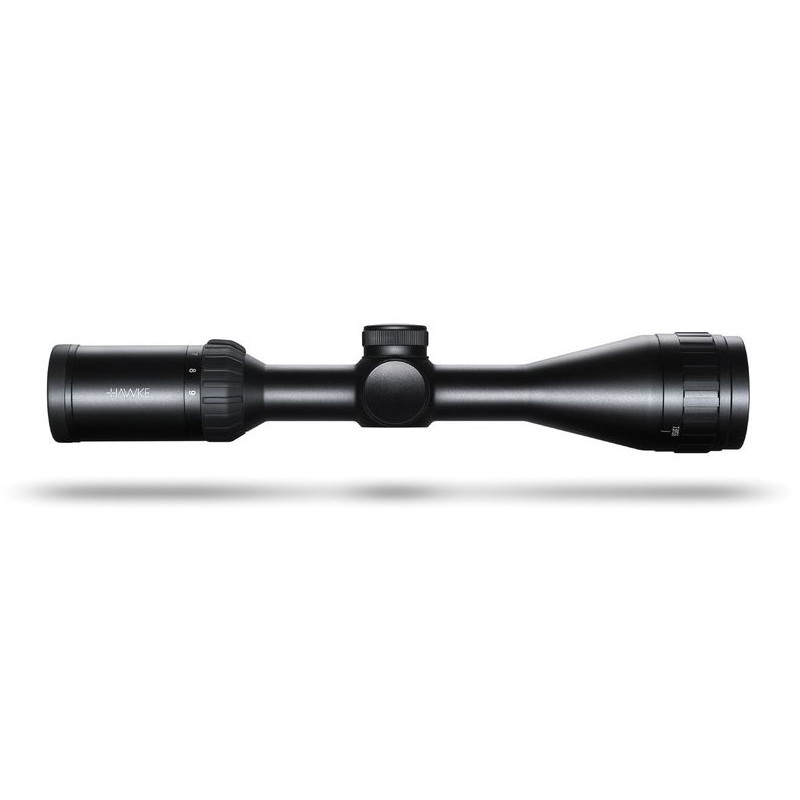

HAWKE Riflescope AIRMAX 1" 3-9x40 AO, AMX (52601)

The Hawke Airmax 1" 3-9x40 AO riflescope is designed for airgun enthusiasts who require precision and versatility. With its zoomable magnification range of 3x to 9x, it is ideal for both close-range and moderate long-distance shooting. The fully multi-coated optics ensure bright and clear images, while the AMX reticle, positioned in the second focal plane, provides accurate aim points for sporting shooters. Built with a durable and waterproof design, this riflescope is suitable for challenging outdoor conditions.

4072.80 kr
Tax included

3311.22 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Hawke Airmax 1" 3-9x40 AO riflescope is designed for airgun enthusiasts who require precision and versatility. With its zoomable magnification range of 3x to 9x, it is ideal for both close-range and moderate long-distance shooting. The fully multi-coated optics ensure bright and clear images, while the AMX reticle, positioned in the second focal plane, provides accurate aim points for sporting shooters. Built with a durable and waterproof design, this riflescope is suitable for challenging outdoor conditions.



Specifications:

Capacity:

  • Type of build: Zoomable magnification

  • Minimum magnification: 3x

  • Maximum magnification: 9x

  • Front lens diameter: 40 mm

  • Exit pupil at minimum magnification: 13.3 mm

  • Exit pupil at maximum magnification: 4.4 mm

  • Eye relief: 89 mm

  • Lens coating: Fully multi-coated

  • Type of mounting: Mounts not included in delivery

  • Central tube diameter: 25.4 mm

Field of View:

  • No parallax over: 9.1 m to infinity

  • Adjustment per click at 100 m: 1/4 MOA

  • Field of view at minimum magnification: 12.4 m

  • Field of view at maximum magnification: 4.5 m

Twilight Factor:

  • At minimum magnification: 10.9

  • At maximum magnification: 18.9

Reticle:

  • Type: AMX Reticle

  • Reticle plane: Second focal plane (SFP)

  • Usage: Sporting shooters

Special Features:

  • Illuminated reticle: Not available

  • Height adjustment: Yes

  • Lateral adjustment: Yes

  • Parallax adjustment: Yes

  • Bullet drop compensator: Not available

  • Integrated rangefinder: Not available

  • Protection cap: Included

General Information:

  • Color: Matte black

  • Length: 306 mm

  • Central tube length: 115 mm

  • Weight: 519 g

  • Objective lens outer diameter: 54 mm

  • Eyepiece outer diameter: 44 mm

Series: Airmax

Area of Application Ratings:

  • Stalk hunting, raised hide, drive hunting, magnum caliber, and handgun use are not recommended.

  • Long-distance shooting performance is moderate.

  • Suitable for airguns under and over 7.5 Joules.

Data sheet

JR5D682N68
