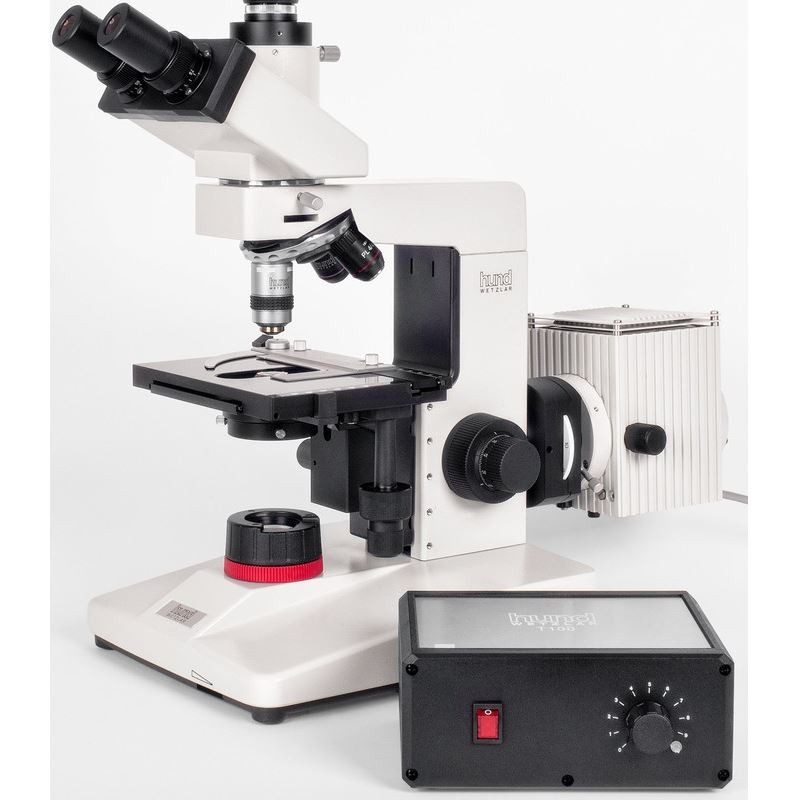

Hund H 600 LL 100 HP dark field microscope (45171)

The H-600 microscope is a highly adaptable and modular instrument designed for a wide range of microscopic examination procedures. It allows users to perform techniques such as bright field, dark field, phase contrast, and polarization microscopy by simply exchanging components. Additionally, it supports advanced methods like incident light and fluorescence microscopy and offers compatibility with two different trinocular photo/video tubes, making it ideal for professional applications in medicine, biology, and laboratory research.

Specifications:

• Optics:

  • Lighting: Transmitted light

  • Condenser: Cardioid dark-field condenser (oil-immersion) NA 1.4

  • Lamp Type: Halogen

  • Eyepiece: 10/18

  • Magnification: Up to 1000x

  • Objectives:

    • Objective 1: 10/0.25; achromatic

    • Objective 2: 100/1.25; semi-plan

  • Optical System: DIN (160 mm)

• Capacity:

  • Dark Field: Yes

  • Bright Field: Yes

  • Contrast Methods: Dark field

• Mechanics:

  • Type of Build: Trinocular

  • Viewing Posture: 30° angled eyepiece

  • Specimen Stage: Cross table

• Special Features:

  • Dust Cover Bag: Yes

  • Filter Holder: Not included

  • Centering Stage: Yes

• General Information:

  • Series: H-600

  • Weight: 9000 g

• Field of Application:

  • Medicine: Yes

  • Biology: Yes

  • Naturopathy: Yes

  • Internal Medicine: Yes

  • Gynecology: Yes

  • Central Laboratories: Yes

This microscope provides precise imaging and is particularly suited for applications in medical diagnostics, biological research, and laboratory settings requiring advanced contrast methods like dark field microscopy.
