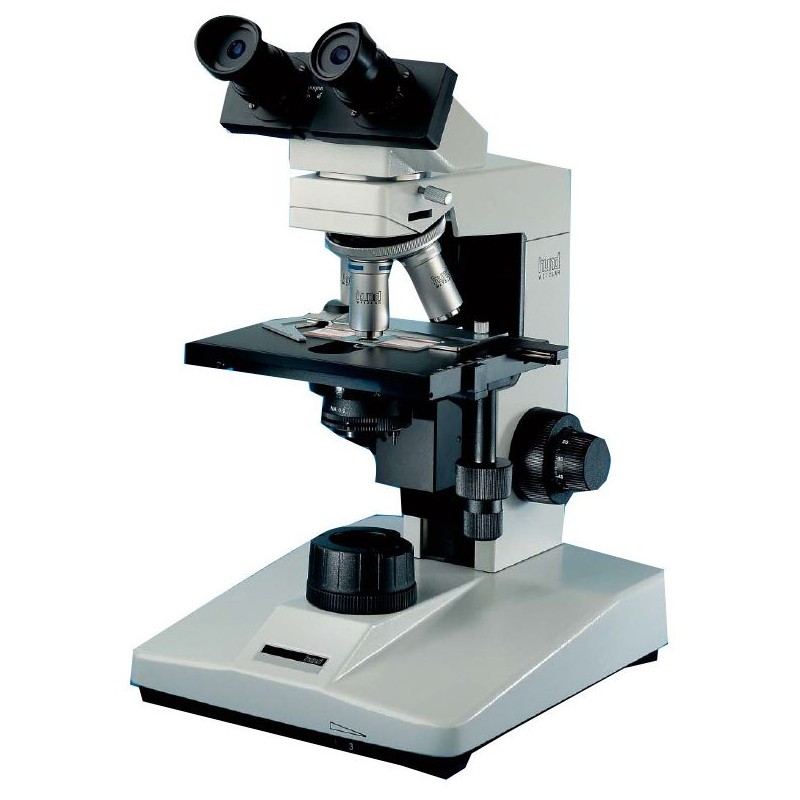

Hund Microscope H 600 Wilo-brew, bino, 100x - 630x (44375)

The H-600 microscope is a highly adaptable and modular instrument designed to accommodate various microscopic examination techniques. It supports bright field, phase contrast, dark field, and polarization microscopy, all achievable through simple component exchanges. Additionally, modules for incident light and fluorescence microscopy, along with two different trinocular photo/video tubes, make this microscope suitable for advanced imaging applications in scientific research.

Specifications:

• Optics:

  • Image Scale: 100–630

  • Lighting: Transmitted light

  • Condenser: Combination condenser (N.A. 1.25) with aperture diaphragm and filter holder; supports bright field, phase contrast (Ph3), and dark field (DF)

  • Lamp Type: Halogen (30 W, adjustable)

  • Eyepiece: WF10/18 mm

  • Magnification: Up to 630x

  • Objectives:

    • Objective 1: 10x/0.25; achromatic

    • Objective 2: 40x/0.65; plan; Ph3; S

    • Objective 3: 63x/0.85; achromatic; S

  • Optical System: DIN (160 mm)

• Capacity:

  • Dark Field: Yes

  • Phase Contrast: Yes

  • Bright Field: Yes

  • Contrast Methods: Phase contrast

• Mechanics:

  • Type of Build: Binocular

  • Viewing Posture: 30° angled eyepiece

  • Specimen Stage: Cross table

• Special Features:

  • Dust Cover Bag: Yes

  • Filter Holder: Yes

  • Centering Stage: Yes

• General Information:

  • Series: H-600

  • Weight: 9000 g

• Area of Application:

  • Interference Contrast: Not supported

  • Metallurgy: Not supported

  • Veterinary Medicine: Not supported

This microscope is ideal for advanced laboratory use and scientific research requiring precise imaging and versatile contrast methods. Its modular design ensures flexibility across various applications.
