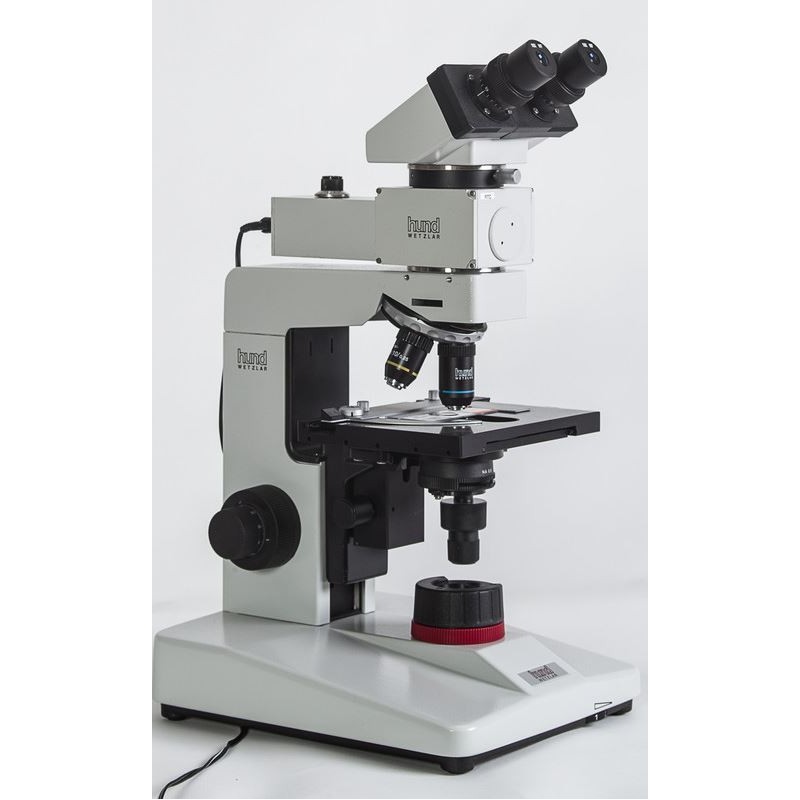

Hund Microscope AFL Plan 50, HBO 50W, bino, fluo, 100x - 1000x (53123)

The H-600 microscope is a modular and highly versatile instrument capable of performing various microscopic examination techniques. With support for bright field, phase contrast, dark field, polarization, incident light, and fluorescence microscopy, it is designed to meet the needs of advanced scientific research. The modular design allows users to easily exchange components, and it includes compatibility with two different trinocular photo/video tubes for imaging applications.

Specifications:

• Optics:

  • Image Scale: 200–400

  • Lighting: Incident light and transmitted light

  • Condenser: Abbe NA 1.25 condenser with iris diaphragm, height adjustable

  • Lamp Type: LED fluorescence illuminator, HBO 50W

  • Eyepiece: 10X/18 mm wide field

  • Magnification: Up to 1000x

  • Optical System: DIN (160 mm)

  • Number of Objectives: Three

    • Objective 1: 10x/0.25 plan

    • Objective 2: 40x/0.64 plan S

    • Objective 3: 100x/1.25 plan oil, S

  • Field Curvature: Without

• Capacity:

  • Transmitted Light: Halogen 12V/30W

  • Fluorescence: Yes

  • Bright Field: Yes

• Mechanics:

  • Type of Build: Binocular

  • Viewing Posture: 30° angled eyepiece

  • Specimen Stage: Cross table

  • Revolver: Five positions

• Special Features:

  • Dust Cover Bag: Yes

  • Filter Holder: Yes

  • Centering Stage: Yes

• General Information:

  • Series: H-600

  • Weight: 9000 g

• Contrast Methods: Fluorescence: Yes

• Field of Application:

  • Medicine: Yes

  • Biology: Yes

  • Veterinary Medicine: Yes

  • Central Laboratories: Yes

  • Botany: Yes

  • Microbiology: Yes

  • Cytology & Pathology: Yes

  • Marine Biology: Yes

  • Internal Medicine: Yes

  • Naturopathy: Yes

  • Gynecology: Yes

This microscope is ideal for professionals in medicine, biology, microbiology, pathology, and marine biology. Its advanced fluorescence capabilities and modular design make it a reliable and adaptable tool for laboratory research across multiple scientific fields.
