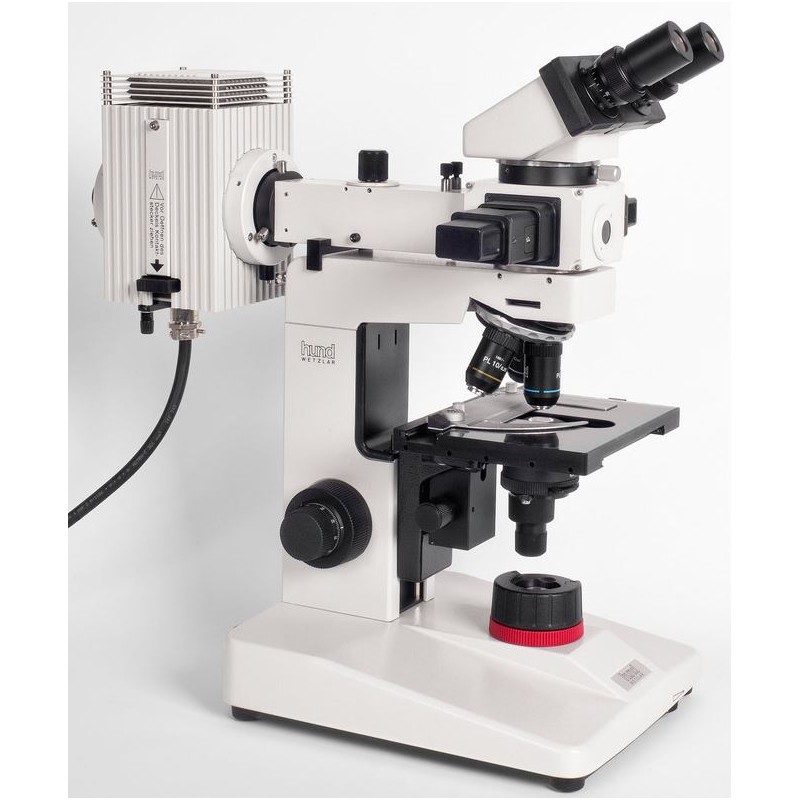

Hund Microscope H 600 AFL Plan 100, HBO 100W, fluo, bino, 100x - 1000x (53124)

The H-600 microscope is a highly versatile instrument with a modular design, allowing it to support a wide range of microscopic examination techniques. It is capable of performing bright field, dark field, polarization, and fluorescence microscopy by simply exchanging components. Additionally, modules for incident light and fluorescence microscopy are available, along with compatibility for two different trinocular photo/video tubes, making it an excellent choice for advanced imaging applications.

Specifications:

• Optics:

  • Image Scale: 200–400

  • Lighting: Incident light and transmitted light

  • Condenser: Abbe NA 1.25 condenser with iris diaphragm, height adjustable

  • Lamp Type: LED fluorescence illuminator, HBO 100W

  • Eyepiece: 10X/18 mm wide field

  • Magnification: Up to 1000x

  • Optical System: DIN (160 mm)

  • Number of Objectives: Three

    • Objective 1: 10x/0.25 plan

    • Objective 2: 40x/0.64 plan S

    • Objective 3: 100x/1.25 plan oil, S

  • Field Curvature: Without

• Capacity:

  • Transmitted Light: Halogen 12V/30W

  • Fluorescence: Yes

  • Bright Field: Yes

  • Phase Contrast: No

• Contrast Methods: Fluorescence

• Mechanics:

  • Type of Build: Binocular

  • Viewing Posture: 30° angled eyepiece

  • Specimen Stage: Cross table

  • Revolver: Five positions

• Special Features:

  • Dust Cover Bag: Yes

  • Filter Holder: Yes

  • Centering Stage: Yes

• General Information:

  • Series: H-600

  • Weight: 9000 g

• Field of Application:

  • Medicine: Yes

  • Biology: Yes

  • Veterinary Medicine: Yes

  • Central Laboratories: Yes

  • Botany: Yes

  • Microbiology: Yes

  • Cytology & Pathology: Yes

  • Marine Biology: Yes

  • Internal Medicine: Yes

  • Naturopathy: Yes

  • Gynecology: Yes

This microscope is particularly suited for professionals in medicine, biology, microbiology, pathology, and marine biology. Its advanced fluorescence capabilities and modular design make it a reliable and adaptable tool for laboratory research across multiple scientific disciplines.
