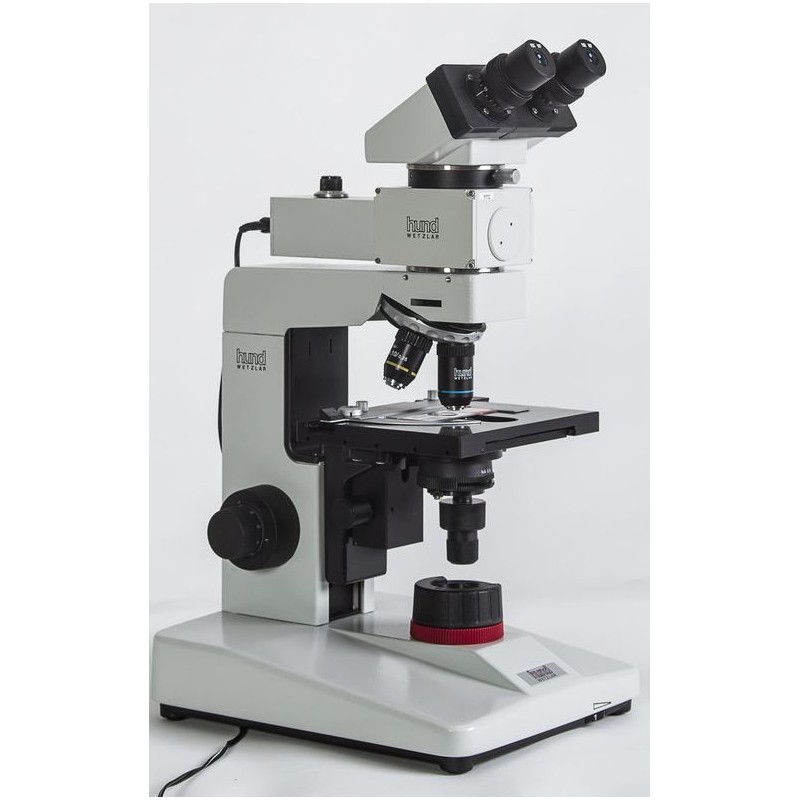

Hund Microscope H 600 LED AFL Myko, bino, 200x - 400x (53122)

The H-600 LED AFL Myko microscope is a highly versatile modular instrument specifically designed for fluorescence microscopy applications, particularly in dermatology, gynecology, and pathology for the investigation of mycoses. It supports bright field and fluorescence microscopy using incident light with LED illumination, making it ideal for advanced imaging techniques. The modular design allows for easy component exchange and compatibility with additional accessories, ensuring adaptability for various scientific needs.

Delivery Scope:

• Two eyecups

• Spare bulb (12V/30W)

• Two spare fuses

• Immersion oil

• Safety goggles and gloves

• Manual and dust cover

• Power cable

Specifications:

• Optics:

  • Image Scale: 200–400

  • Lighting: Incident light and transmitted light

  • Condenser: N.A. 0.9

  • Lamp Type: LED fluorescence illumination (395 nm light source, beamsplitter at 400 nm)

  • Eyepiece: WF 10X/18 mm wide field

  • Magnification: Up to 1000x

  • Optical System: DIN (160 mm)

  • Objectives:

    • Objective 1: SPL 20x/0.50 semiplan

    • Objective 2: Achro 40x/0.65 S

  • Field Curvature: Without

• Capacity:

  • Transmitted Light: Halogen (12V/30W)

  • Fluorescence: Yes

  • Bright Field: Yes

• Contrast Methods: Fluorescence

• Mechanics:

  • Type of Build: Binocular

  • Viewing Posture: 30° angled eyepiece

  • Specimen Stage Dimensions: 160 x 130 mm

• Special Features:

  • Dust Cover Bag: Yes

  • Filter Holder: Yes

  • Centering Stage: Yes

• General Information:

  • Series: H-600 LED AFL Myko

  • Weight: 9000 g

• Field of Application:

  • Medicine: Yes

  • Biology: Yes

  • Veterinary Medicine: Yes

  • Central Laboratories: Yes

  • Botany: Yes

  • Microbiology: Yes

  • Cytology & Pathology: Yes

  • Marine Biology: Yes

  • Internal Medicine: Yes

  • Naturopathy: Yes

  • Gynecology: Yes

This microscope is particularly suited for fluorescence microscopy applications in medical diagnostics and laboratory research. Its advanced LED fluorescence illumination system and modular design make it a reliable tool for investigating mycoses and other biological phenomena.
