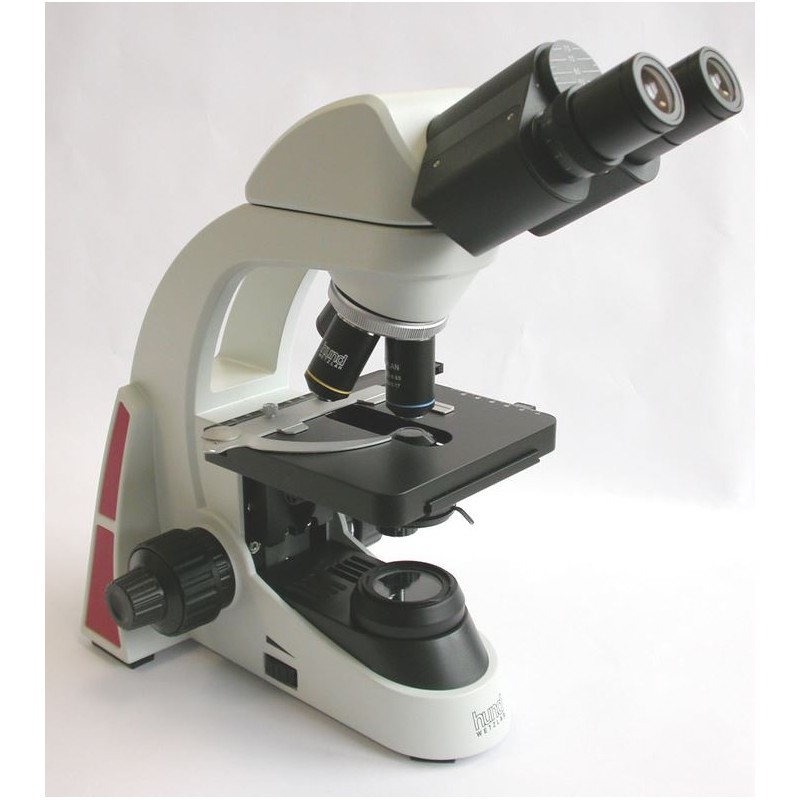

Hund Microscope MED PRAX 3, bino, 40x - 1000x (53098)

The Med-Prax 3 microscope is designed for biological laboratories and educational purposes, offering reliable microscopic results with expert consultancy to save on investments. It is ideal for routine investigations of stained biological samples in medicine and biological education. With its ergonomic design, durable LED illumination, and high-quality imaging, the Med-Prax 3 ensures clear and precise observations while maintaining stability and durability. Manufactured according to Hund quality standards, this microscope is a dependable tool for both professional and academic use.

The Med-Prax 3 is an excellent choice for educational institutions and medical laboratories due to its ergonomic handling, durable construction, and high-quality imaging capabilities. It is suitable for a wide range of applications, including biology education, veterinary medicine, technical training, and internal medicine diagnostics.

Specifications:

• Optics:

  • Image Scale: 4–100

  • Lighting: Transmitted light

  • Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

  • Lamp Type: LED

  • Lens Type: Plan, achromatic

  • Eyepiece: 10x/18

  • Magnification: Up to 1000x (50x, 100x, 500x, 1000x)

  • Objectives:

    • Objective 1: 4x/0.10 plan-achromatic

    • Objective 2: 10x/0.25 plan-achromatic

    • Objective 3: 40x/0.65 S plan-achromatic

    • Objective 4: 100x/1.25 S oil plan-achromatic

  • Optical System: DIN (160 mm)

• Capacity:

  • Brightness Control: Yes

  • Brightfield: Yes

• Mechanics:

  • Viewing Posture: Siedentop tube; 30° viewing angle

  • Specimen Stage Dimensions: Cross table (140 mm x 130 mm; movement range: 76 mm x 50 mm)

  • Type of Build: Binocular

  • Focusing Mechanism: Coarse and fine movement adjustment

  • Revolver Positions: Four

• Special Features:

  • Dust Cover Bag: Yes

• General Information:

  • Series: Med-Prax

• Field of Application:

  • Education: Yes

  • Medicine: Yes

  • Biology: Yes

  • University: Yes

  • Veterinary Medicine: Yes

  • Technical Training: Yes

  • High School: Yes

  • Internal Medicine: Yes

  • Naturopathy: Yes

  • Gynecology: Yes

  • Central Laboratories: Yes
