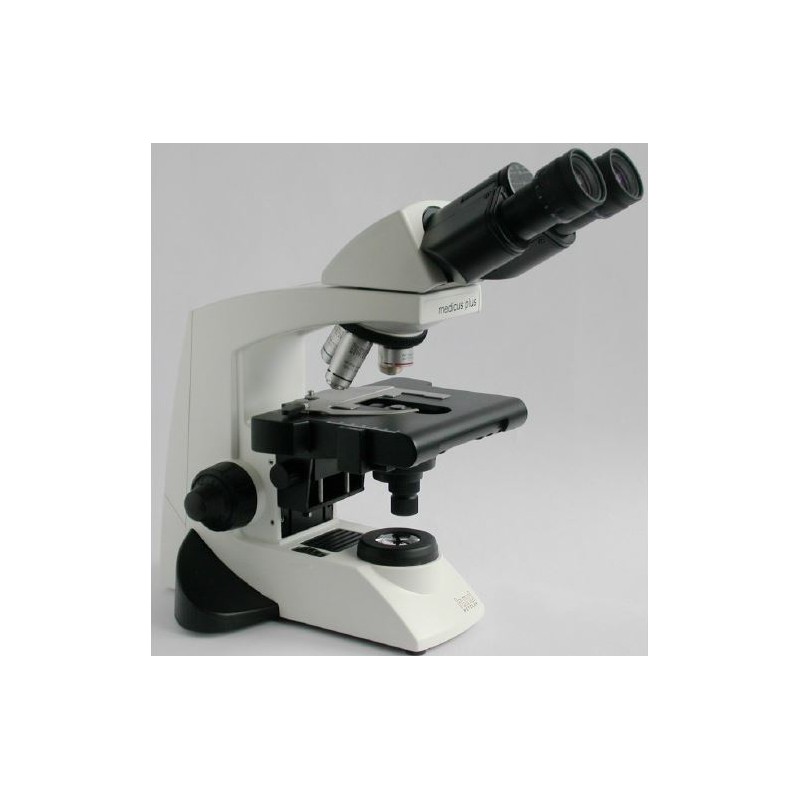

Hund Microscope Medicus plus, plan, trino, infinity, 40x - 1000x (53119)

The Medicus Plus microscopes are specifically designed for biology education and medical investigations. They are ideal for examining tissue sections, blood smears, urinary sediments, swabs, and bacteria. These microscopes combine high-quality standards, excellent functionality, and ergonomic design, making them versatile systems for medical and biological applications.

The Medicus Plus microscope is an excellent choice for educational institutions, medical laboratories, and research facilities due to its ergonomic design and high-quality optical system. It is particularly well-suited for routine biological and medical investigations requiring precision and reliability in imaging results.

Features of Laboratory Microscopes Medicus:

• Solid cast tripod in a classic gooseneck shape.

• Coaxially arranged coarse and fine focusing drives:

  • Coarse Adjustment: Total height adjustment of 12.7 mm.

  • Fine Adjustment: Height adjustment per division of 3 microns.

• Binocular Siedentopf tube, 360° rotatable:

  • Viewing angle of 30°.

  • Tube factor of 1x.

  • Adjustable eye distance (55 mm to 75 mm).

  • Diopter compensation on each eyepiece.

• Four-position nosepiece with ball-bearing guide.

• Plan-achromatic lenses, infinity-corrected.

• Cross table (200 mm x 160 mm) with ergonomically positioned coaxial knobs:

  • Sliding range of 78 mm x 54 mm.

  • Specimen holder with spring lever.

• Height-adjustable Abbe condenser (NA 1.25).

• Integrated halogen lighting (6V/20W), infinitely adjustable.

Delivery Scope:

• Power cord.

• Wrench set.

• Dust cover bag.

• Spare bulb and fuse.

• Operating instructions.

Specifications:

• Optics:

  • Magnification: 40–1000x (50x, 100x, 500x, 1000x).

  • Eyepiece: WF 10x/20 with eyeshades (2 pcs).

  • Lens Type: Plan, achromatic (infinity corrected).

    • Objective 1: Plan 4x/0.10.

    • Objective 2: Plan 10x/0.25.

    • Objective 3: Plan 40x/0.65 with spring slide protection.

    • Objective 4: Plan 100x/1.25 oil with spring slide protection.

  • Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable.

• Lighting:

  • Transmitted light with halogen lamp (20W).

• Optical System: Infinity-corrected.

• Capacity:

  • Brightness control: Yes.

  • Brightfield: Yes.

• Mechanics:

  • Viewing Posture: Siedentopf tube with a viewing angle of 30°.

  • Specimen Stage: Cross table design for precise positioning.

  • Type of Build: Trinocular microscope for imaging applications.

  • Focusing Mechanism: Coarse and fine movement adjustments.

  • Revolver with four positions.

• Special Features: Dust cover bag included.

General Information:

• Series: Medicus.

• Field of Application: Medicine, biology, veterinary medicine, internal medicine, naturopathy, gynecology, and central laboratories.
