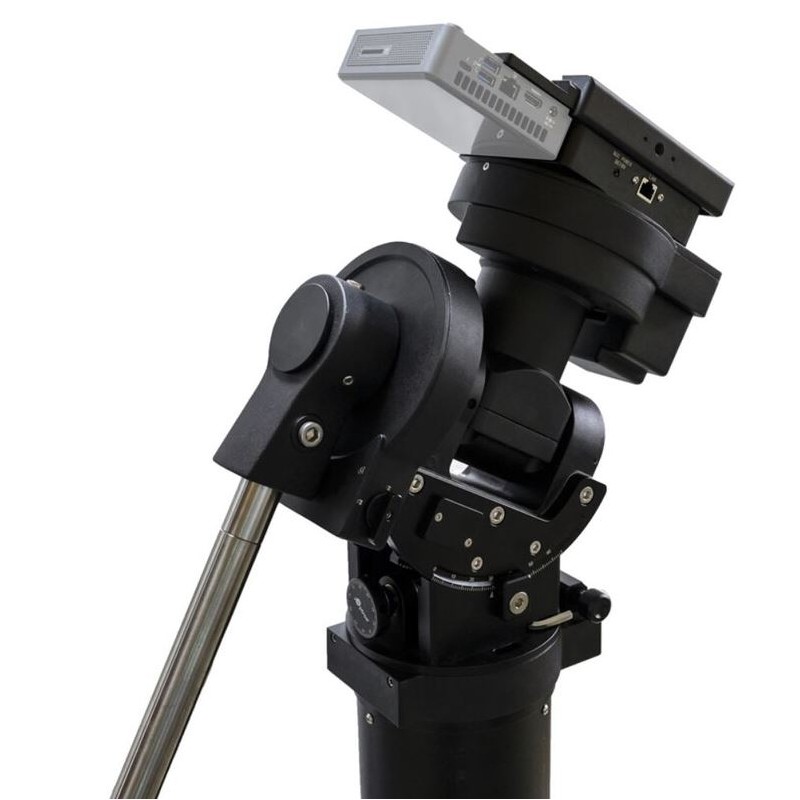

iOptron Mount CEM70 EC2N-NUC iPolar (76348)

The iOptron CEM70 series represents a new standard in medium payload equatorial mounts, offering advanced features and streamlined components for efficient, accurate, and portable imaging setups. Building on the success of the CEM60, the CEM70 series delivers precise GOTO pointing, accurate tracking, and innovative operational utilities tailored to the needs of both observers and astrophotographers. With a payload capacity of 70 lbs (31.8 kg) and a mount weight of only 30 lbs (13.6 kg), it combines portability with high performance.

1267912.96 ¥
Tax included

1030823.54 ¥ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The iOptron CEM70 series represents a new standard in medium payload equatorial mounts, offering advanced features and streamlined components for efficient, accurate, and portable imaging setups. Building on the success of the CEM60, the CEM70 series delivers precise GOTO pointing, accurate tracking, and innovative operational utilities tailored to the needs of both observers and astrophotographers. With a payload capacity of 70 lbs (31.8 kg) and a mount weight of only 30 lbs (13.6 kg), it combines portability with high performance.



Key Features:

  • Center-Balanced Design: Ensures natural stability for maximum payload efficiency.

  • Payload Capacity: 70 lbs (31.8 kg) with a mount weight of 30 lbs (13.6 kg).

  • iPolar Electronic Polar Scope: Provides accurate polar alignment, even when the Pole Star is obscured.

  • Go2Nova® 8410 Controller: Features advanced GOTONOVA® technology, a built-in heater, and a library of 212,000 objects.

  • High Precision Tracking: Low periodic error (<0.3 arcsec rms) with real-time periodic error correction (RPEC).

  • Integrated GPS: 32-channel system for precise location tracking.

  • Built-in Wi-Fi Connectivity: Enables remote operation.

  • Advanced Cable Management System: Prevents tangling and supports internal connections for mount, iPolar, guider, and camera.

  • Easy Lock Drive Gear Engagement: Large levers for convenient operation, even with gloves.

  • Spring-Loaded Dual Saddle: Compatible with both Losmandy and Vixen-style dovetails.

The CEM70EC variant includes high-resolution encoders for sub-arcsecond tracking accuracy (<0.25 arcseconds) without requiring guiding during astrophotography sessions. The mount also supports seamless integration with an Intel® NUC mini-computer (38mm thickness), enhancing its functionality for advanced imaging setups.





Specifications:

Capacity:

  • Designation: CEM70EC2-NUC

  • Maximum Payload Capacity: 31.8 kg

  • Counterweights: 1 (9.5 kg)

Interfaces:

  • ST-4 autoguiding port and USB 2.0

Power Supply:

  • Voltage: 12V

Polar Elevation Setting:

  • Range: 0°–65°

Slow-Motion Azimuth Adjustment:

  • +/-4°

Operating Temperature Range:

  • -10°C to +40°C

Motor Speeds:

  • Multiple speeds ranging from 1x to max ~3.75º/sec

Mounting Saddle:

  • Compatible with Losmandy and Vixen dovetails

Dimensions:

  • DEC Ball Bearings Diameter: 80mm

  • RA Ball Bearings Diameter: 80mm

  • DEC Worm Gear Diameter: 151mm (248 teeth)

  • RA Worm Gear Diameter: 151mm (248 teeth)

  • RA Worm Shaft Diameter: 55mm

  • DEC Worm Shaft Diameter: 55mm

  • Counterweight Bar Diameter: 28mm

Materials:

  • Worm Gear: Steel

Weight:

  • Mount Head Only: 13.6 kg

  • Total Weight: 24 kg

Tracking Precision:

  • <0.07 arcseconds

Motor Type:

  • Stepper motors

Special Features:

  • GoTo System: Yes (Go2Nova® controller)

  • GPS: Yes (32-channel)

  • PEC Correction: Yes (real-time RPEC)

  • Polar Alignment: iPolar electronic polar scope included

Equipment Included:

  • Transport cases: Yes

  • Power pack: Yes

  • Counterweights: 1

General Information:

  • Series: CEM70

  • Type: Mount (Equatorial)

Area of Application:
The CEM70 is suitable for both astrophotography and visual observation, delivering high precision tracking and versatile features for advanced users.
