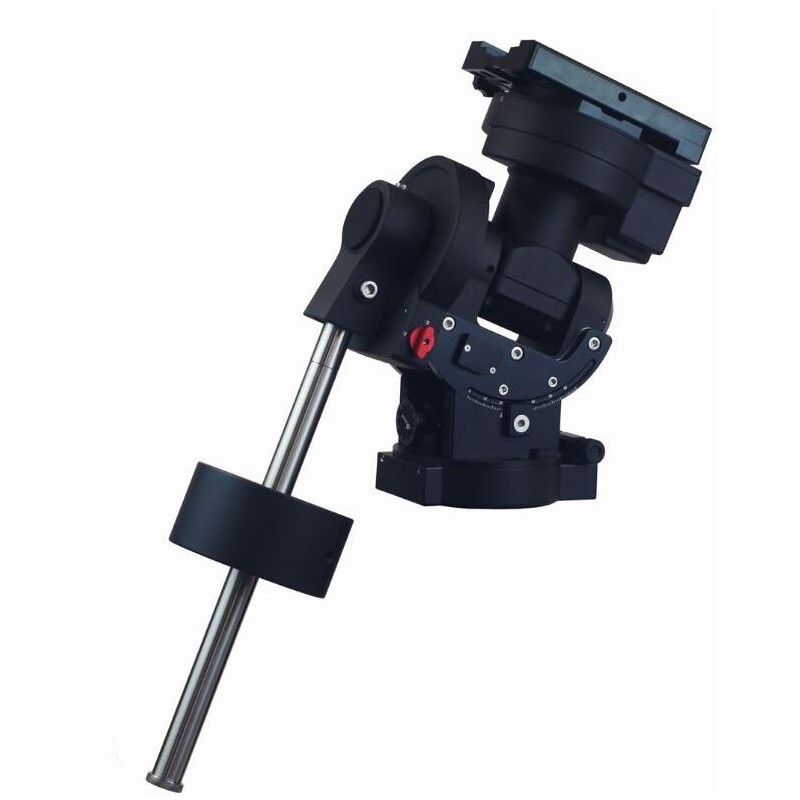

iOptron Mount CEM70 ECW iPolar (76347)

The iOptron CEM70 series introduces a new generation of center-balanced equatorial mounts, designed for both visual observation and astrophotography. With a payload capacity of 70 lbs (31.8 kg) and a mount weight of just 30 lbs (13.6 kg), these mounts offer an excellent balance of portability and performance. The center-balanced design ensures natural stability, making the CEM70 series ideal for astronomers seeking precision and efficiency in their setups.

26687.56 AED
Tax included

21697.21 AED net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The iOptron CEM70 series introduces a new generation of center-balanced equatorial mounts, designed for both visual observation and astrophotography. With a payload capacity of 70 lbs (31.8 kg) and a mount weight of just 30 lbs (13.6 kg), these mounts offer an excellent balance of portability and performance. The center-balanced design ensures natural stability, making the CEM70 series ideal for astronomers seeking precision and efficiency in their setups.



Key Advantages:

  • Center-Balanced Design: Provides maximum payload stability with natural balance.

  • Payload Capacity: Supports up to 70 lbs (31.8 kg) with a lightweight mount head.

  • Reliable Gear Clutches: Easy to operate, even while wearing gloves.

  • Precision Adjustments: Altitude and azimuth adjustments for accurate polar alignment.

  • Stepper Motors: Offer 0.07 arcsecond accuracy for precise GOTO and tracking.

  • iPolar Electronic Polar Scope: Ensures accurate polar alignment, even when the Pole Star is not visible.

  • Go2Nova® 8410 Controller: Features advanced GOTONOVA® technology, a built-in heater, and a library of 212,000 celestial objects.

  • High Precision Tracking: Low periodic error (<0.3 arcseconds rms) with real-time periodic error correction (RPEC).

  • Built-in GPS: 32-channel system for precise location tracking.

  • USB 3.0 Connection: Ensures high-speed data transfer for imaging setups.

  • ST-4 Autoguiding Port: Seamless integration with guiding systems.

  • Advanced Cable Management System: Internal routing prevents tangling and accommodates connections for mount, iPolar, guider, and camera.

  • Dual Saddle: Spring-loaded 8" saddle compatible with Losmandy and Vixen dovetails.

  • Built-in Wi-Fi Connectivity: Enables remote operation.

The CEM70EC variant includes high-resolution encoders for sub-arcsecond tracking accuracy (<0.07 arcseconds), eliminating the need for guiding during astrophotography.





Specifications:

Capacity:

  • Designation: CEM70 ECW

  • Maximum Payload Capacity: 31.8 kg

  • Counterweights: 1 (9.5 kg)

Interfaces:

  • ST-4 Autoguiding Port & USB 3.0

Power Supply:

  • Voltage: 12V

Polar Elevation Setting:

  • Range: 0°–65°

Slow-Motion Azimuth Adjustment:

  • +/-4°

Operating Temperature Range:

  • -10°C to +40°C

Motor Speeds:

  • Multiple speeds ranging from 1x to max ~3.75º/sec

Mounting Saddle:

  • Compatible with Losmandy and Vixen dovetails

Dimensions:

  • DEC Ball Bearings Diameter: 80mm

  • RA Ball Bearings Diameter: 80mm

  • DEC Worm Gear Diameter: 151mm (248 teeth)

  • RA Worm Gear Diameter: 151mm (248 teeth)

  • RA Worm Shaft Diameter: 55mm

  • DEC Worm Shaft Diameter: 55mm

  • Counterweight Bar Diameter: 28mm

Materials:

  • Worm Gear: Steel

Weight:

  • Mount Head Only: 13.6 kg

  • Total Weight: 24 kg

Tracking Precision:

  • <0.07 arcseconds

Motor Type:

  • Stepper motors (128 micro-steps)

Special Features:

  • GoTo System: Yes (Go2Nova® controller)

  • GPS: Yes (32-channel)

  • PEC Correction: Yes (real-time RPEC)

  • Polar Alignment: iPolar electronic polar scope included

Equipment Included:

  • Transport cases: Yes

  • Power pack: Yes

  • Counterweights: 1

General Information:

  • Series: CEM70

  • Type: Mount (Equatorial)

Area of Application:
The CEM70 is suitable for both astrophotography and visual observation, offering precision tracking and advanced features tailored to the needs of astronomers.
