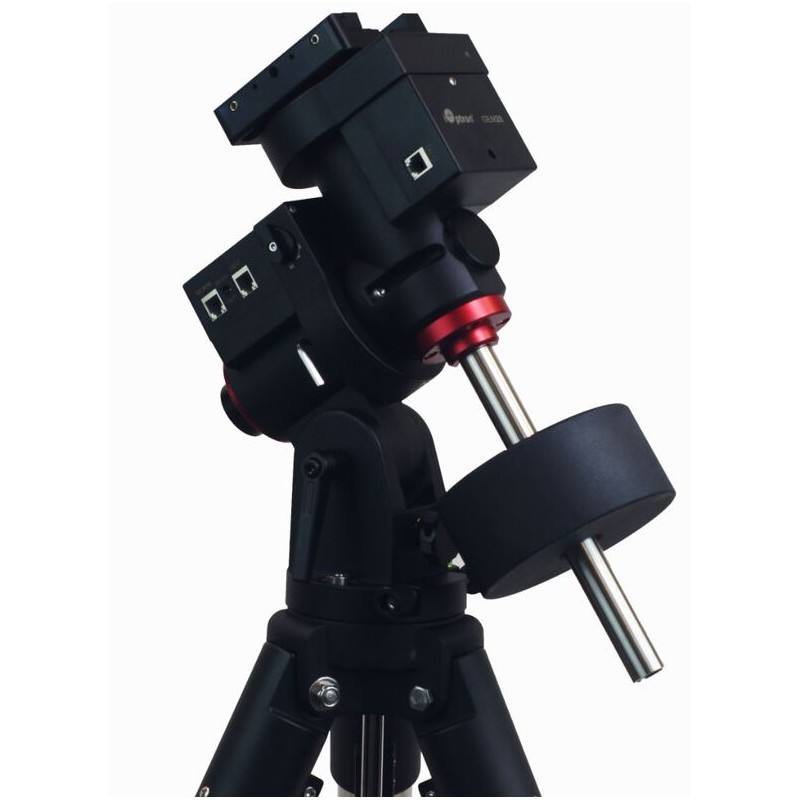

iOptron Mount GEM28 GoTo iPolar LiteRoc (69717)

The iOptron GEM28 is a lightweight German equatorial mount designed for portability and performance, weighing only 4.5 kg (10 lbs) while supporting a payload of up to 12.7 kg (28 lbs). With an impressive 2.8 mount weight-to-payload ratio, the GEM28 is ideal for both mobile setups and astrophotography. Its design incorporates advanced engineering methods from the CEM family to reduce mass while maintaining stability. The GEM28 is particularly suited for use at higher latitudes, with a latitude range of 10° to 70°.

Building on the legacy of earlier GEM models, the GEM28 introduces enhanced features for convenience and functionality. It includes a positive lock gear engagement system that is easy to operate even with gloves, built-in Wi-Fi for seamless connectivity, and recordable permanent periodic error correction (PPEC) for optimal tracking performance. The mount delivers precise pointing and accurate tracking, setting a new standard for compact German equatorial GoTo mounts.

Key Features:

• German Equatorial Design: Latitude range of 10° ~ 70°.

• Payload Capacity: Supports up to 12.7 kg (28 lbs) with a lightweight mount head of 4.5 kg (10 lbs).

• Low Periodic Error: Less than ±10 arcseconds.

• CNC Machined Metal Body: Durable construction with spring-loaded gear system.

• Quick-Lock Gear Clutches: Large and easy to use, even while wearing gloves.

• Stepper Motor: Energy-efficient design with belt transmission for smooth operation.

• AccuAlign™ Calibrated Polar Scope: Facilitates precise polar alignment.

• Polar Alignment Routine: Designed for users who cannot see the Pole Star.

• Go2Nova® Hand Controller: Advanced GoTo technology with intuitive operation and a large LCD screen.

• Integrated ST-4 Autoguiding Port: Ensures compatibility with guiding systems.

• Built-in Wi-Fi: Enables remote control and connectivity.

• USB Port: Supports firmware upgrades and computer control.

• Die-Cast Metal Tripod Spreader: Includes an accessory tray for added convenience.

• Optional Features: Hard carrying case, 32-channel GPS system, and iGuider™ autoguiding system.

Specifications:

Capacity:

• Designation: GEM28

• Maximum Payload Capacity: 12.7 kg

Polar Elevation Setting:

• Range: 10°–70°

Motor Speeds:

• Multiple speeds ranging from 1x to max ~512x

Position Precision:

• +/-6 arcseconds

Tracking Precision:

• 0.17 arcseconds

Materials:

• Worm Gear: Aluminium

• Worm Wheel: Brass

Worm Gear Teeth (RA):

• 144 teeth

Counterweight(s):

• Quantity: 1 (4.5 kg)

• Material: Steel

Counterweight Bar Diameter:

• 20 mm

Software and Display Screen:

• Go2Nova software with LCD display featuring backlight

Database:

• Includes 212,000 celestial objects

Interfaces and Connections:

• ST-4, HBX, USB, DEC ports; USB & ST4 cable included

Cable Management System:

• Internal routing

Operating Temperature Range:

• -10°C to +40°C

Power Supply Requirements:

• Voltage: 12V DC; Current: 5A

Drive Type:

• Worm wheel

Special Features:

• Polar Axis Scale: Yes

• Prism Rail Compatibility: Vixen-style dovetails supported

• PEC Correction: Permanent PEC available

Equipment Included:

• Transport cases: Yes

• Pole finder: Yes

• Power pack: Yes

Tripod Specifications:

• Material: Stainless steel

• Weight: 7 kg

General Information:

• Color: Black-red finish

• Total Weight (including tripod): 22 kg

GoTo Control Features:
The GEM28 supports Wi-Fi connectivity, multiple alignment methods (1-star, 2-star, and 3-star), autoguiding compatibility, PEC correction, and tracking speeds for sidereal, solar, and lunar objects.

The iOptron GEM28 is ideal for astrophotographers and visual observers who need a portable yet powerful mount capable of delivering precise tracking and advanced features tailored to their needs.
