iOptron Mount GEM28EC LiteRoc (74331)

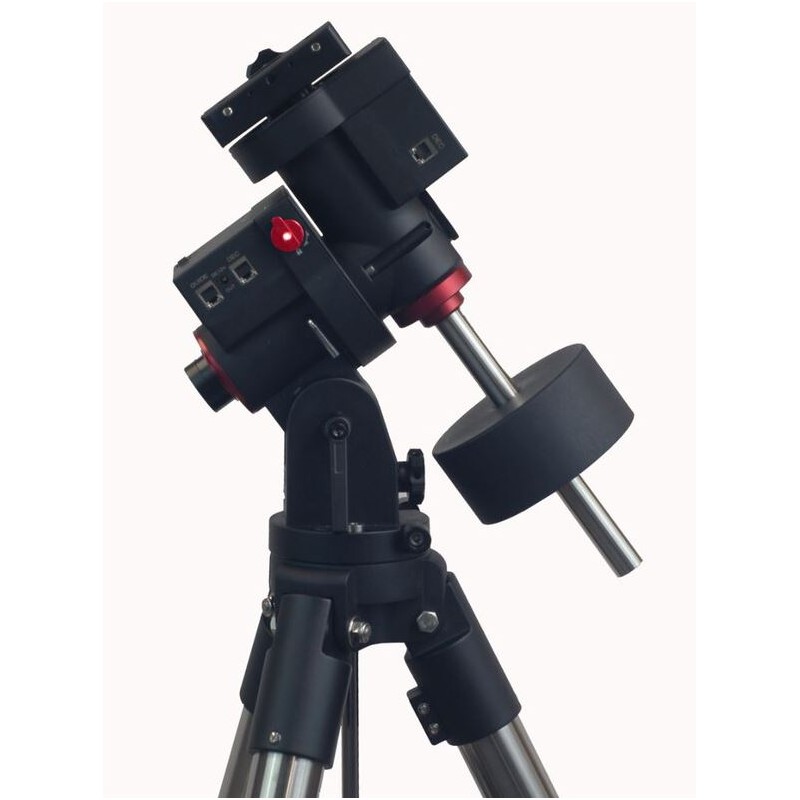

The iOptron GEM28 is a lightweight and portable German equatorial mount designed for ease of handling and transport. Despite its compact design, the mount can carry loads of up to 12.7 kg, offering an impressive weight-to-load ratio of 2.8. This makes the GEM28 ideal for mobile astrophotography and visual observation, as it balances portability with high load capacity.

121233.20 Kč
Tax included

98563.58 Kč net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The iOptron GEM28 is a lightweight and portable German equatorial mount designed for ease of handling and transport. Despite its compact design, the mount can carry loads of up to 12.7 kg, offering an impressive weight-to-load ratio of 2.8. This makes the GEM28 ideal for mobile astrophotography and visual observation, as it balances portability with high load capacity.



iOptron has incorporated advanced features into the GEM28 for enhanced user comfort and functionality. The mount includes built-in WiFi for seamless connectivity and permanent periodic error correction (PEC), ensuring stable tracking performance. With precise pointing and exceptionally accurate object tracking, the GEM28 sets new standards for medium-sized equatorial GoTo systems.



The GEM28EC version is equipped with iOptron's latest Go2Nova® technology, making it one of the most powerful and precise GoTo systems available. Its database of 212,000 celestial objects ensures a wide variety of targets for observation and imaging. The intuitive Go2Nova® hand controller features a large four-line LCD display, simplifying setup and object location.



Additionally, the GEM28EC includes an electronic iPolar system for precise polar alignment, even when the Pole Star is not visible.



Advantages at a Glance:

  • Latitude Range: Operates between 10° ~ 70°.

  • Versatility: Ideal for both visual observations and astrophotography.

  • Low Periodic Error: Less than ±10 arcseconds.

  • Payload Capacity: Supports up to 12.7 kg with a lightweight mount head of only 4.5 kg.

  • Durable Construction: Die-cast CNC-machined mounting head.

  • Quick-Lock Couplings: Large and easy to use, even while wearing gloves.

  • Energy-Efficient Stepper Motors: Low power consumption with belt drive for smooth operation.

  • Easy Polar Alignment: Designed for users who cannot see the Pole Star.

  • Go2Nova® Hand Controller: Advanced GoTo technology with an intuitive interface and large LCD display.

  • Integrated ST-4 Autoguiding Port: Ensures compatibility with guiding systems.

  • Built-in WiFi: Enables remote control and connectivity.

  • USB Connection: Supports firmware updates and computer control.

  • Die-Cast Metal Tripod Spreader: Includes an accessory shelf for added convenience.

  • Optional Features: 32-channel GPS and iGuider autoguiding system.





Specifications:

Capacity:

  • Designation: GEM28

  • Maximum Payload Capacity: 12.7 kg

Polar Elevation Setting:

  • Range: 10°–70°

Motor Speeds:

  • Multiple speeds ranging from 1x to max ~512x

Position Precision:

  • +/-6 arcseconds

Tracking Precision:

  • 0.17 arcseconds

Materials:

  • Worm Gear: Aluminium

  • Worm Wheel: Brass

Worm Gear Teeth (RA):

  • 144 teeth

Counterweight(s):

  • Quantity: 1 (4.5 kg)

  • Material: Steel

Counterweight Bar Diameter:

  • 20 mm

Software and Display Screen:

  • Go2Nova software with LCD display featuring backlight

Database:

  • Includes 212,000 celestial objects

Interfaces and Connections:

  • ST-4, HBX, USB, DEC ports; USB & ST4 cable included

Cable Management System:

  • Internal routing

Operating Temperature Range:

  • -10°C to +40°C

Power Supply Requirements:

  • Voltage: 12V DC; Current: 5A

Drive Type:

  • Worm wheel

Special Features:

  • Polar Axis Scale: Yes

  • Prism Rail Compatibility: Vixen-style dovetails supported

  • PEC Correction: Permanent PEC available

Equipment Included:

  • Transport cases: Yes

  • Pole finder: Yes

  • Power pack: Yes

Tripod Specifications:

  • Material: Stainless steel

  • Weight: 7 kg

General Information:
The GEM28 is finished in black-red colors and weighs a total of 22 kg (including tripod). It supports WiFi connectivity, multiple alignment methods (1-star, 2-star, and 3-star), autoguiding compatibility, PEC correction, and tracking speeds for sidereal, solar, and lunar targets.

The iOptron GEM28 is an excellent choice for astronomers seeking a compact yet powerful mount that delivers precision tracking and advanced features tailored to their needs in both astrophotography and visual observation setups.

Data sheet

542KVXLUFD
